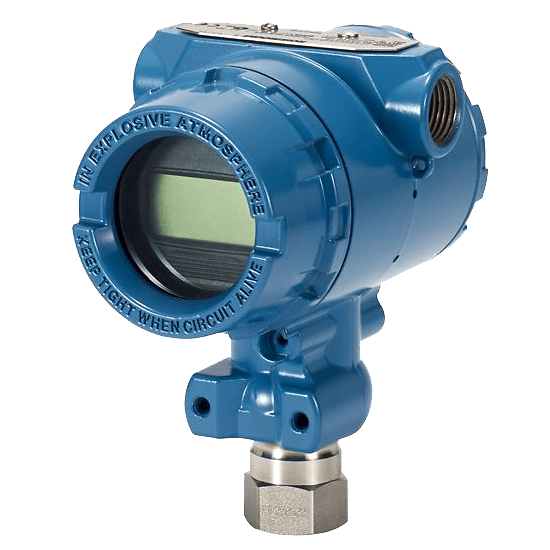

2088G4S22A2I1P1Q4Q8 | Rosemount Gage Pressure Transmitter | Rosemount 2088

Name: 2088G4S22A2I1P1Q4Q8 | Rosemount Gage Pressure Transmitter | Rosemount 2088
Brand: RoseMount
SKU: 14368
Availability: InStock

Part Number: 2088G4S22A2I1P1Q4Q8

To pick up today

Our courier will deliver to the specified address

DHL courier will deliver to the specified address

Payment Methods:

Part Number: 2088G4S22A2I1P1Q4Q8

Model: 2088 Gage Pressure Transmitter

Manufacturer: Rosemount

Specifications

Rangedown: Up to 50:1
Communication Protocol: 4-20 mA HART®, 1-5 V Low Power HART®
Measurement Range: Up to 4,000 psig (275,8 bar) Gage, Up to 4,000 psia (275,8 bar) Absolute
Process Wetted Material: 316L SST, Alloy C-276
Diagnostics: Basic Diagnostics
Certifications/Approvals: NSF, NACE®, hazardous location, see full specs for complete list of certifications

Features

Local Operator Interface (LOI) features straightforward menus and built-in configuration buttons for ease-of-use
Factory-assembled and leak-checked integral manifold and remote seal solutions deliver a quick start-up
Available protocols include 4-20 mA HART and 1-5 Vdc HART Low Power for application flexibility
Lightweight, compact design allows for easy installation

Ordering Information

Model: 2088 – Pressure Transmitter
Measurement type: G – Gage
Pressure ranges: 4 – 14.7 to 4,000 psi (-1,01 to 275,8 bar)
Transmitter output⁽¹⁾: S – 4–20 mA dc/Digital HART Protocol
Materials of construction⁽²⁾: 22 –
Process connection: 316L SST
Isolating diaphragm: 316L SST
Fill fluid: Silicone
Process connection: A – 1/2–14 NPT female
Conduit entry: 2(3) – M20 1.5
Product certifications: I1⁽³⁾ – ATEX Intrinsic Safety
Pressure testing: P1 – Hydrostatic testing
Calibration certificate: Q4 – Calibration certificate
Quality calibration certificate traceability certification: Q8 – Material traceability certification per EN 10204 3.1

HART Revision 5 is the default HART output. The Rosemount2088 with selectable HART can be factory or field configured to HART Revision 7. To order HART Revision 7 factory configured, add option code HR7.
Materials of construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.
Not available with Low Power transmitter output code N.
