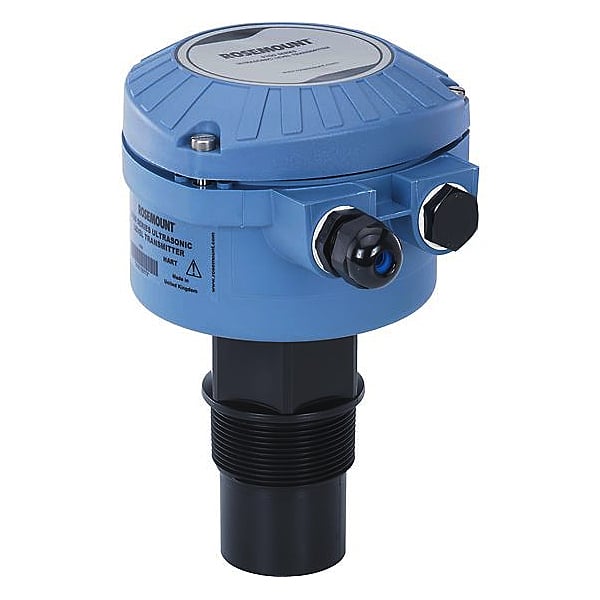

3102HA1FSCG5C4ST | Rosemount 3102 | Rosemount Level Transmitter - Ultrasonic
3102HA1FSCG5C4ST | Rosemount 3102 | Rosemount Level Transmitter - Ultrasonic $1,537.00
Click to enlarge

2120DODV1E5YM0150Q4Q8 | Rosemount 2120 | Rosemount Level Switch

Part Number: 2120DODV1E5YM0150Q4Q8

  • Free Selection Free Online Product Selection Service

To pick up today

  • Fast Shipping & Competitive pricing

Our courier will deliver to the specified address

  • warranty Min. order: 1 piece & 2-Year Warranty

DHL courier will deliver to the specified address

Payment Methods:

Description

Part Number: 2120DODV1E5YM0150Q4Q8


Specifications
  • Communication Protocol: Direct Load, PLC/PNP, Relay, 8/16 mA, NAMUR
  • Process Media Density: Minimum 37.5 lb/ft3 (600 kg/m3)
  • Viscosity: 0.2 to 10000 cP (centiPoise)
  • Operating Pressure: Full vacuum to 1450 psi (Full vacuum to 100 bar)
  • Operating Temperature: -40 to 302 °F (-40 to 150 °C)
  • Safety:
    SIL2 IEC 61508 certified
    TÜV tested and WHG approved for overfill prevention
  • Diagnostics Electronic: self-checking and condition monitoring
Features
  • Magnetic test point makes testing of the Rosemount 2120 easy
  • Can be operated using the sun or battery as a power source with the 12Vdc option
  • Fast drip fork design gives a quicker response time, especially with viscous liquids
  • Adjustable switching delay enables easy handling of turbulent and splashing applications
  • 3-A and EHEDG certificates for hygienic applications. Compliance with FDA and ASME-BPE standards

  • Estimated Lead Time: 8 – 10 Weeks
  • Shipping Weight: 8 Kg
