Part Number: 266DSHESSB2B1V1L1B1

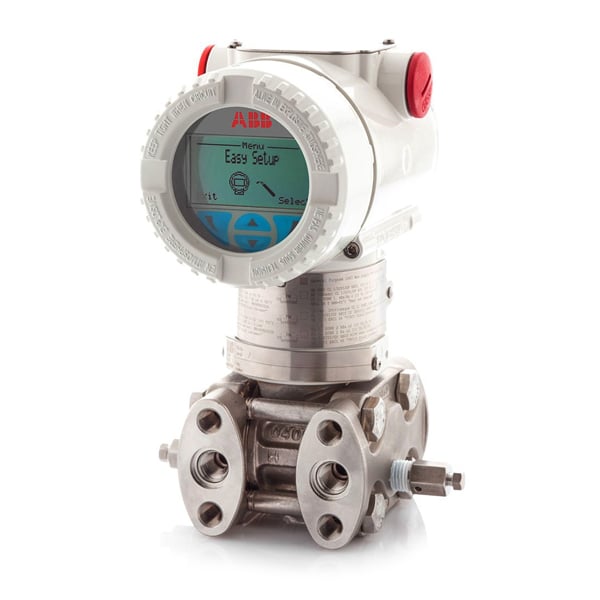

| Model | 266DSH | Differential Pressure Transmitter – BASE ACCURACY 0.06 % |
| SENSOR – Span limits | E | 0.54 and 16 kPa 5.4 and 160 mbar 2.16 and 64 inH2O (Note 1) |
| Application | S | Differential measurement at standard static pressure |
| Diaphragm material / Fill fluid (wetted parts) | S | AISI 316 L ss Silicone oil (Note 2) NACE |
| Process flanges/adapters material and connection (wetted parts) | B | AISI 316 L ss (Horizontal connection) 1/2 in. – 14 NPT-f through adapter NACE |
| Bolts/Gasket (wetted parts) | 2 | For standard static, high static and gauge versions AISI 316 ss PTFE (Notes 3, 4, 5, 6) NACE (non exposed) |
| Housing material and electrical connection | B | Aluminium alloy ( barrel version) M20 x 1.5 (CM 20) (TO BE USED for WirelessHART) (Notes 7) |
| Output/Additional options | 1 | HART and 4 to 20 mA – Advanced functionality (includes option R1) |
| Drain/vent valve (material and position) (wetted parts) | V1 | AISI 316 L ss on process axis (Note 4, 8) NACE |
| Integral LCD | L1 | Digital LCD integral display with integrated keypad (Note 9) |
| Mounting bracket (shape and material) | B1 | For pipe/wall mounting – Carbon steel (Not suitable for AISI housing) (Note 5) |
