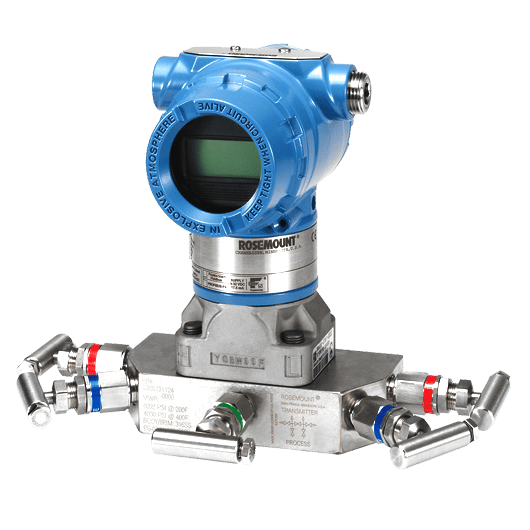

3051CA3A22A1JB4M6 | Rosemount 3051C

Part Number: 3051CA3A22A1JB4M6

  • Free Selection Free Online Product Selection Service

To pick up today

  • Fast Shipping & Competitive pricing

Our courier will deliver to the specified address

  • warranty Min. order: 1 piece & 2-Year Warranty

DHL courier will deliver to the specified address

Payment Methods:

Description

Part Number: 3051CA3A22A1JB4M6

Ordering Information
  • Model: 3051C¹ – Coplanar Pressure Transmitter
  • Measurement type: A² – Absolute
  • Pressure range: 3 – ?1000 to 1000 inH2O (-2,48 to 2,48 bar)
  • Transmitter output: A³ – 4-20 mA with Digital Signal Based on HART Protocol
  • Materials of construction: 2 –
    [    Process flange type] Coplanar;
    [    Flange material] SST;
    [Drain/vent] SST
  • Isolating diaphragm: 24– 316L SST
  • O-ring: A – Glass-filled PTFE
  • Sensor fill fluid: 1 – Silicone
  • Housing material: J – SST; [Conduit entry size] M20 × 1.5
  • Mounting bracket5: B4 – Coplanar flange bracket, all SST, 2-in. pipe and panel
  • Display and interface options: M6
Note:
  1. Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required.
  2. If ordered with Wireless output code X, only Range 1-4, 316L SST diaphragm material (code 2), silicone fill fluid (code 1) and wireless housing (code P) are available.
  3. Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.
  4. Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.
  5. Panel mounting bolts are not supplied.

  • Estimated Lead Time: 6 – 8 Weeks
  • Shipping Weight: 5 Kg
