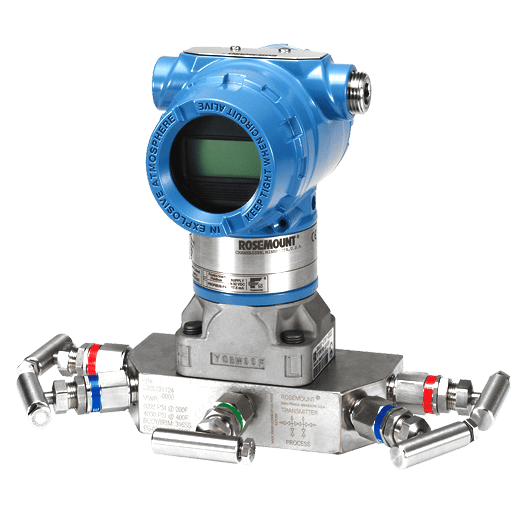

3051CD2A02A1KM5DOK8S5Q4 | Rosemount 3051C

Part Number: 3051CD2A02A1KM5DOK8S5Q4

  • Free Selection Free Online Product Selection Service

To pick up today

  • Fast Shipping & Competitive pricing

Our courier will deliver to the specified address

  • warranty Min. order: 1 piece & 2-Year Warranty

DHL courier will deliver to the specified address

Payment Methods:

Description

Part Number: 3051CD2A02A1KM5DOK8S5Q4

Integral Manifold Model: 0305RC52B11B4L4


Ordering Information
  • Model: 3051C¹ – Coplanar Pressure Transmitter
  • Measurement type: D – Differential
  • Pressure range: 2 – -250 to 250 inH20 (-621,60 to 621,60 mbar)
  • Transmitter output: A² – 4-20 mA with Digital Signal Based on HART Protocol
  • Materials of construction: 0 – Alternate Process Connection
  • Isolating diaphragm: 2³ – 316L SST
  • O-Ring: A – Glass-filled PTFE
  • Sensor: 1 – Silicone
  1. Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required.
  2. Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.
  3. Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.
  4. Not valid with Alternate Process Connection options S3, S4, S5, and S6.
  • Estimated Lead Time: 6 – 8 Weeks
  • Shipping Weight: 13 Kg
