3051CD2A22A1AWR5S1E8M5Q4DO | Rosemount 3051C

Part Number: 3051CD2A22A1AWR5S1E8M5Q4DO

  • Free Selection Free Online Product Selection Service

To pick up today

  • Fast Shipping & Competitive pricing

Our courier will deliver to the specified address

  • warranty Min. order: 1 piece & 2-Year Warranty

DHL courier will deliver to the specified address

Payment Methods:

Description

Part Number: 3051CD2A22A1AWR5S1E8M5Q4DO



Ordering Information

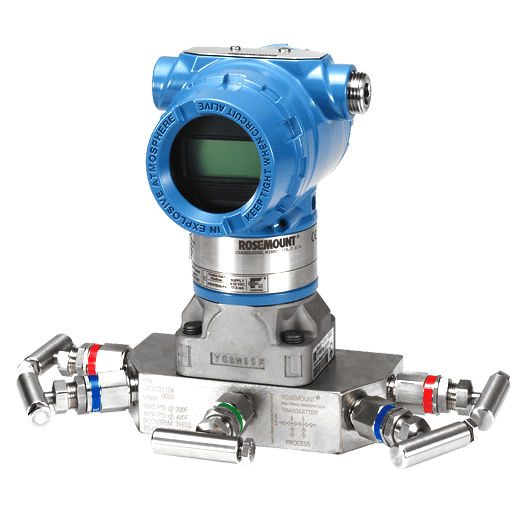

Model: 3051C¹ – Coplanar Pressure Transmitter
Measurement type: D – Differential
Pressure range: 2 – ?250 to 250 inH2O (-621,60 to 621,60 mbar)
Transmitter output: A² – 4-20 mA with Digital Signal Based on HART Protocol
Materials of construction: 2 –
[Process flange type] Coplanar;
[Flange material] SST;
[Drain/vent] SST
Isolating diaphragm: 2³ – 316L SST
O-ring: A – Glass-filled PTFE
Sensor fill fluid: 1 – Silicone
Housing material: A – Aluminium; 1/2-14 NPT [Conduit entry size]
Extended product warranty: WR5 – 5-year limited warranty
Mounting bracket4: S15 – Coplanar flange bracket, all SST, 2-in. pipe and panel
Product certification: E8 – ATEX Flameproof and Dust Certification
Display and interface options: M5 – LCD Display
Calibration certificate: Q4 – Calibration Certificate
Conduit plug: DO6,7 – 316 SST Conduit Plug
NOTE:
  1. Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required.
  2. Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.
  3. Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.
  4. ‘Assemble-to’ items are specified separately and require a completed model number.
  5. Not valid with Option Code D9 for RC1/2 Adapters
  6. Not available with Wireless Output (code X).
  7. Transmitter is shipped with a 316 SST Conduit plug (uninstalled) in place of standard carbon steel conduit plug.
  • Estimated Lead Time: 6 – 8 Weeks
  • Shipping Weight: 10 Kg
