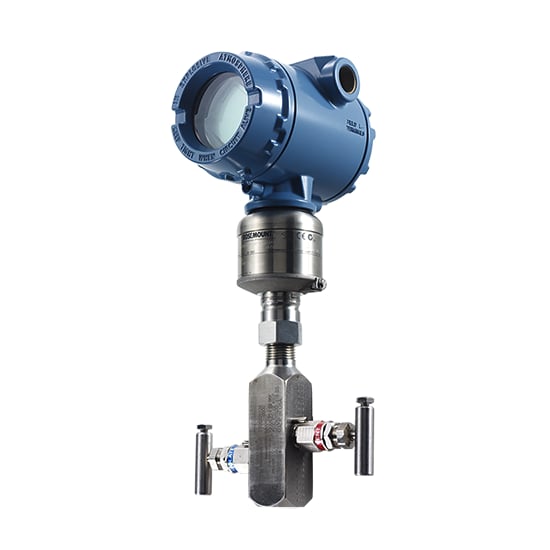

3051S1CD2A2A11A1AK5M5Q4T1 | Rosemount 3051S Pressure Transmitter

Part Number: 3051S1CD2A2A11A1AK5M5Q4T1

  • Free Selection Free Online Product Selection Service

To pick up today

  • Fast Shipping & Competitive pricing

Our courier will deliver to the specified address

  • warranty Min. order: 1 piece & 2-Year Warranty

DHL courier will deliver to the specified address

Payment Methods:

Description

Part Number: 3051S1CD2A2A11A1AK5M5Q4T1

Diaphragm Seals Model: 0305RC32B11B4L4

Model: 3051S Scalable Pressure Transmitter
Brand: Rosemount
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months

Specifications
  • Rangedown: Up to 200:1
  • Communication Protocol: 4-20 mA HART, WirelessHART®, FOUNDATION fieldbus
  • Measurement Range: Up to 2000psi (137,89 bar) Differential, Up to 2000psig (137,89 bar) Gage, Up to 4000psia (275,79 bar) Absolute
  • Process Wetted Material: 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST
  • Diagnostics: Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line
  • Certifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications3051S Scalable Pressure Transmitter
Features
  • Patented Rosemount Coplanar technology offers optimized performance as a pressure, DP Flow and DP Level solution
  • Best-in-class, scalable architecture enhances performance, functionality and process connections
  • Transmitter arrives fully assembled and leak tested for simple installation and maintenance
  • All-welded hermetic SST SuperModule platform resists overpressure and line pressure effects to ensure 0.025% accuracy
  • Ultra and Ultra for Flow performance classes deliver 15-year stability and 15-year limited warranty
  • 200:1 rangedown produce reliable measurements and wide application flexibility
  • Integrates seamlessly with 4-20 mA HART®, WirelessHART®, FOUNDATION™ fieldbus protocols for application flexibility
  • SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
  • Advanced diagnostics provide diagnostic coverage to detect electrical loop issues and abnormal process conditions
  • Remote display and interface offers easy access to process and device information

Ordering Information

Model 3051S Scalable pressure transmitter
Performance class(1) 1 Ultra: 0.025% span accuracy, 200:1 rangedown, 15-yr stability, 15-yr limited warranty
Connection type C Coplanar
Measurement type(2) D Differential
Pressure range 2A -250 to 250 inH2O
(-621,60 to 621,60 mbar)
Isolating diaphragm 2(3) 316L SST
Process connection A11(4) Assemble to Rosemount 305 integral manifold
Transmitter output A 4–20 mA with digital signal based on HART protocol
1A Housing style: PlantWeb housing
Material: Aluminum
Conduit size entry: 1/2–14 NPT
Product certifications(5) K5 FM Explosion-proof, Dust Ignition-proof, Intrinsically Safe, Division 2
Display type(6) M5 PlantWeb LCD display
Calibration certification Q4 Calibration certificate
Transient protection(7)(8) T1 Transient terminal block

Model 0305 Integral manifold
Manufacturer R Rosemount
Manifold style C Coplanar
Manifold type 3 Three-valve
Materials of construction 2 Body: 316 SST/316L SST
Bonnet: 316 SST
Stem and tip/ball: 316 SST
Process connection style B(9) ½–14 NPT female
Packing material 1(10) PTFE
Valve seat 1 Integral
Mounting brackets B4  SST mounting bracket for 2-in. (50.8 mm) pipe mounting, 300 SST bolts
Bolt materials  L4(11) Austenitic 316 SST bolts
  1. For detailed specifications see “Specifications” on page 102.
  2. Performance Class code 3 is available with Measurement Type code D only.
  3. Materials of Construction comply with metallurgical requirements highlighted within NACE MR0175/ISO 15156 for sour oil field production environments. Environmental
    limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments. Order with Q15 or
    Q25 to receive a NACE certificate.
  4. “Assemble to” items are specified separately and require a completed model number. Process connection option codes B12, C11, D11, EA2, EA3, and EA5 are only available
    on differential Measurement Type, code D.
  5. Valid when SuperModule Platform and housing have equivalent approvals.
  6. Not available with Housing code 7J.
  7. Not available with Housing code 00, 5A, 5J, or 7J.
  8. The T1 option is not needed with FISCO Product Certifications; transient protection is included in the FISCO product certification codes IA, IB, IE, IF, IG, and KG.
  9. Not available with traditional manifold style code M. Manifold style code T does not include mounting holes on process flange.
  10. Includes PTFE tape on drain/vent valves and plugs.
  11. Not available with ASME B31.1 manifold type codes 7, 8, and 9.
  • Estimated Lead Time: 8 – 10 Weeks
  • Shipping Weight: 15 Kg
  • Made in Singapore
