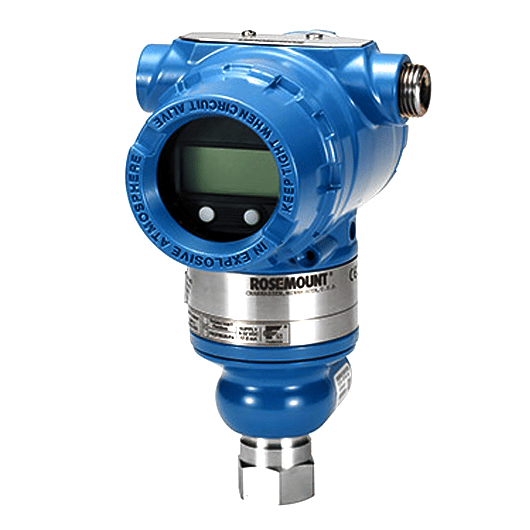

3051TG5A2B21AB4M5P1Q4S5 | Rosemount 3051T | Rosemount In-Line Pressure Transmitter with Integral Manifold

Part Number: 3051TG5A2B21AB4M5P1Q4S5

  • Free Selection Free Online Product Selection Service

To pick up today

  • Fast Shipping & Competitive pricing

Our courier will deliver to the specified address

  • warranty Min. order: 1 piece & 2-Year Warranty

DHL courier will deliver to the specified address

Payment Methods:

Description

Part Number: 3051TG5A2B21AB4M5P1Q4S5

Type: 3051T In-Line Pressure Transmitter with Integral Manifold
Manufacturer: Rosemount


Ordering Information
  • Model: 3051T¹ – In-Line Pressure Transmitter
  • Pressure type: G – Gage
  • Pressure range: 5 – -14.7 to 10000 psi (-1,01 to 689,47 bar) [Gage (3051TG)²]
  • Transmitter output: A³ – 4?20 mA with Digital Signal Based on HART Protocol
  • Process connection style: 2B – 1/2?14 NPT Female
  • Isolating diaphragm: 24 – 316L SST; 316L SST [Process connection wetted parts material]
  • Sensor fill fluid: 1 – Silicone
  • Housing material: A – Aluminum; ½?14 NPT (Conduit entry size)
  • Mounting bracket5: B4 – Bracket for 2-in. Pipe or Panel Mounting, All SST
  • Display and interface option: M5 – LCD Display
  • Pressure testing: P1 – Hydrostatic Testing with Certificate
  • Calibration certification: Q4 – Calibration certificate
  • Integral assembly: S56 – Assemble to Rosemount 306 Integral Manifold

NOTE:
  1. Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required.
  2. 3051TG lower range limit varies with atmospheric pressure.
  3. Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.
  4. Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.
  5. Panel mounting bolts are not supplied.
  6. ?Assemble-to? items are specified separately and require a completed model number.

Remark: This transmitter comes with integral manifold 0306RT22BA11.


  • Estimated Lead Time: 6 – 8 Weeks
  • Shipping Weight: 15 Kg
