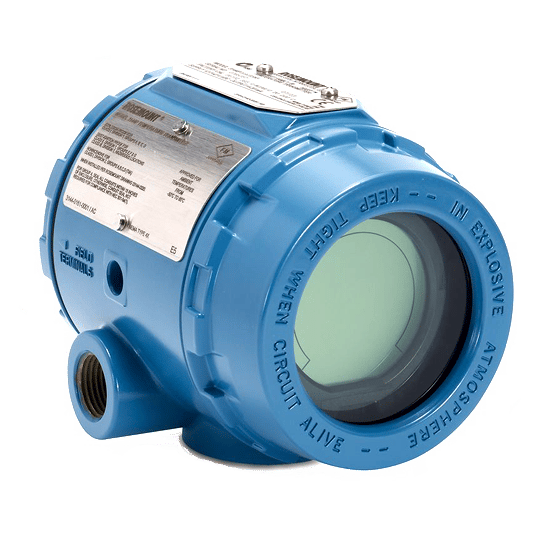

3144PD6A1K7B5M5CNQ4QT | Rosemount 3144P | Rosemount Temperature Transmitter

Part Number: 3144PD6A1K7B5M5CNQ4QT

  • Free Selection Free Online Product Selection Service

To pick up today

  • Fast Shipping & Competitive pricing

Our courier will deliver to the specified address

  • warranty Min. order: 1 piece & 2-Year Warranty

DHL courier will deliver to the specified address

Payment Methods:

Description

Part Number: 3144PD6A1K7B5M5CNQ4QT

Model: 3144P Temperature Transmitter
Manufacturer: Rosemount
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Specifications
  • Input: Dual and single sensor capability with universal sensor inputs (RTD, T/C, mV, ohms)
  • Output Signal: 4-20 mA /HART® protocol, FOUNDATION™ Fieldbus protocol
  • Housing: Dual-compartment field mount
  • Display/Interface: Large LCD display with percent range graph and buttons/switches
  • Diagnostics: Basic diagnostics, Hot Backup™ capability, sensor drift alert, thermocouple degradation, min/max tracking
  • Calibration Options: Transmitter-sensor matching (Callendar-Van Dusen constants), custom trim
  • Certifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, hazardous location, marine type, see full specs for complete list of certifications



Features



  • Industry-leading accuracy and reliability for best performance in critical control and safety applications.
  • Transmitter-sensor matching improves measurement accuracy up to 75%.
  • 5-year long-term stability extends calibration intervals to reduce trips to the field.
  • Rosemount X-well Technology measures temperature without a process penetration for reduced design, installation and maintenance costs.

Ordering Information

Model 3144P Temperature transmitter
Housing style D6 Field mount housing, dual-compartment housing
Material: Stainless steel
Conduit entry size: M20  1,5 (CM20)
Transmitter output A 4—20 mA with digital signal based on HART Protocol
Measurement configuration 1 Single-sensor input
Product Certificates K7(1)(2) IECEx Intrinsic Safety, Flameproof, Dust Ignition-Proof and Type n combination
Mounting bracket B5 “L” mounting bracket for 2-in. pipe or panel mounting – All SST
Display M5 LCD display
Alarm level configuration CN NAMUR alarm and saturation levels, low alarm
Calibration certification Q4 Calibration certificate (3-point calibration)
Quality certification for safety QT Safety-certified to IEC 61508 with certificate of FMEDA data (HART only)



  1. When IS approval is ordered on a FOUNDATION Fieldbus, both standard IS and FISCO IS approvals apply. The device label is marked appropriately.
  2. Consult factory for availability when ordering with HART or FOUNDATION Fieldbus models.



  • Estimated Lead Time: 4 – 6 Weeks
  • Shipping Weight: 8 Kg
