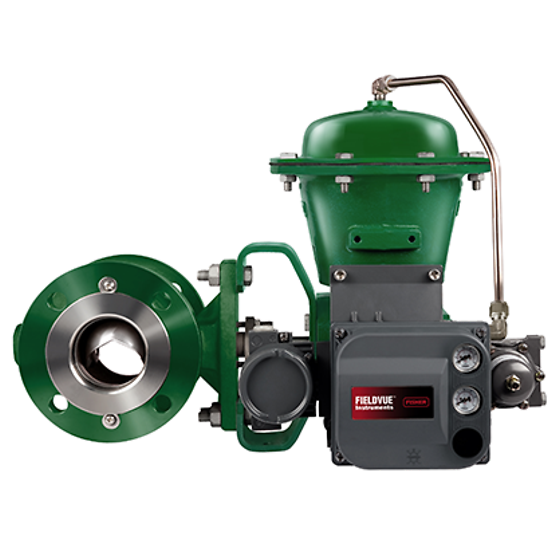

Fisher V150 | Fisher Valve | Fisher Actuator

The Fisher V150—Fisher Vee-Ball V150 control valve is your choice for performance and cost-effectiveness across a broad range of applications. The precision-machined parts and pressure-balanced seal designs allow smooth, precise valve operation.

  • Free Selection Free Online Product Selection Service

To pick up today

  • Fast Shipping & Competitive pricing

Our courier will deliver to the specified address

  • warranty Min. order: 1 piece & 2-Year Warranty

DHL courier will deliver to the specified address

Payment Methods:

Description

Fisher V150 Specifications

Specification Details
Certifications SIL capable, ATEX, CUTR, PED, CRN, Fugitive Emission, NACE
Critical Service Noise Abatement, Cavitation, Dirty Service, Erosive, Low Flow, General Service
Flow Characteristics Equal Percentage
Material Carbon Steel, Stainless, Duplex, Alloy
Operating Temperature Standard Temperature
Pressure Class PN, ASME
Process Connection Type Flanged
Shutoff Class Class III (FCI 70-2), Class IV (FCI 70-2), Class VI (FCI 70-2)
Valve Size NPS 1, NPS 1-1/2, NPS 2, NPS 3, NPS 4, NPS 6, NPS 8, NPS 10, NPS 20, NPS 24
Valve Size Standard NPS, DN
Other Configurations Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.



Features

  • Flanged body design eliminates exposed line flange bolting, reduces alignment and installation time, and promotes secure valve installations and piping integrity.
  • The solid HD ball seal construction provides long service life in demanding applications.
  • Precise contouring of the Vee-Ball provides a modified equal percentage flow characteristic.
  • Materials are available for applications involving sour liquids and gases. These constructions comply with NACE MR0175-2002, MR0175-2003, MR0103, and MR0175/ISO 15156.
  • Ball seal inspection and replacement is done at the valve body inlet, without removing the actuator or disassembling the valve.
  • The one-piece valve body improves structural integrity of the pressure boundary by eliminating leak paths that could be caused by the gaskets in two-piece, bolted valve designs.
  • The optional ENVIRO-SEAL™ packing systems are designed with very smooth shaft surfaces and live loading to provide sealing capability.

fisher v150 GUAGEMART

The Fisher V150 control valve is known for its durability and precise flow control, making it ideal for various industrial applications. As a trusted supplier, GUAGEMART provides genuine Fisher products with fast global delivery. The V150 features equal percentage flow characteristics, making it suitable for corrosive media and applications with solid particles, offering both efficiency and cost-effectiveness. In addition to product supply, we offer selection guidance and technical support to ensure stable and reliable system operation. For procurement or technical inquiries, contact us for the best solutions.
