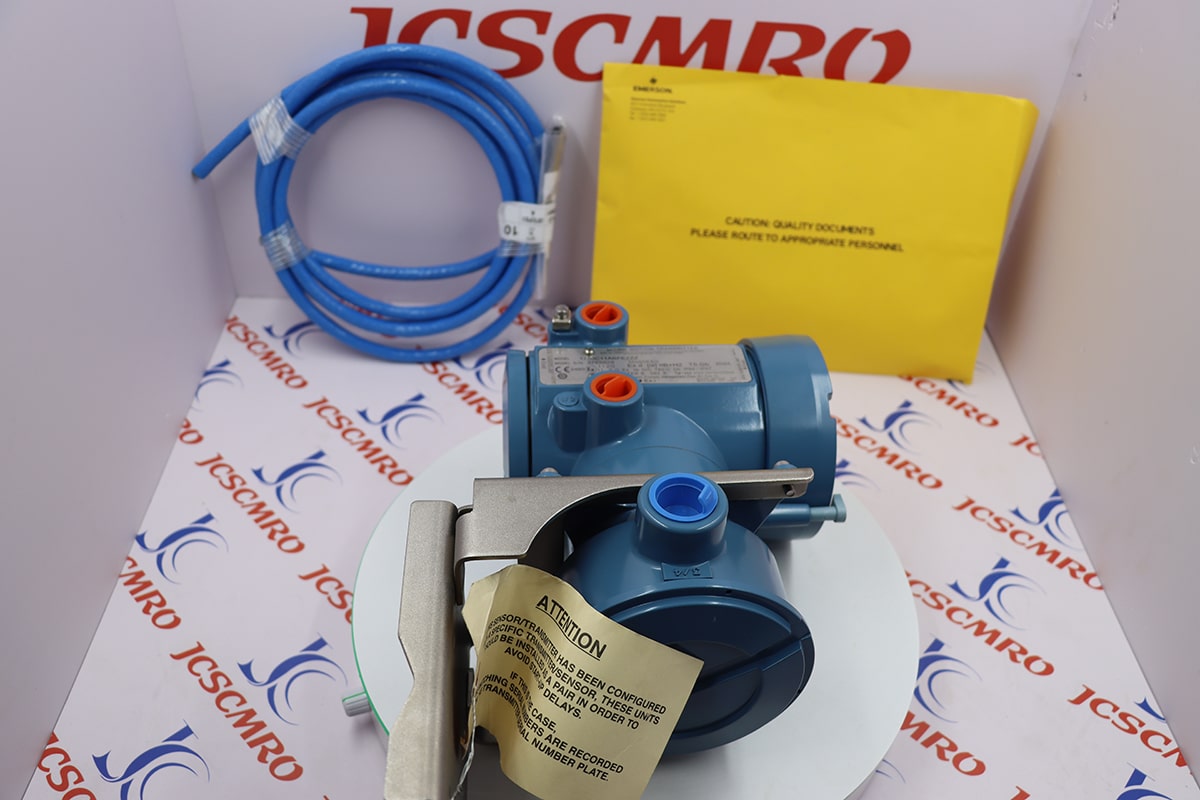

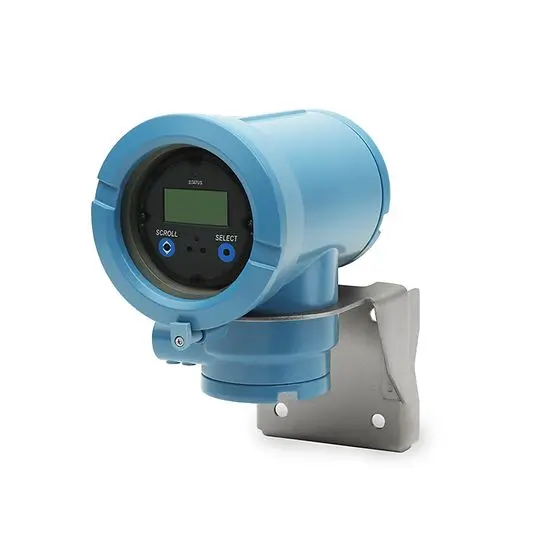

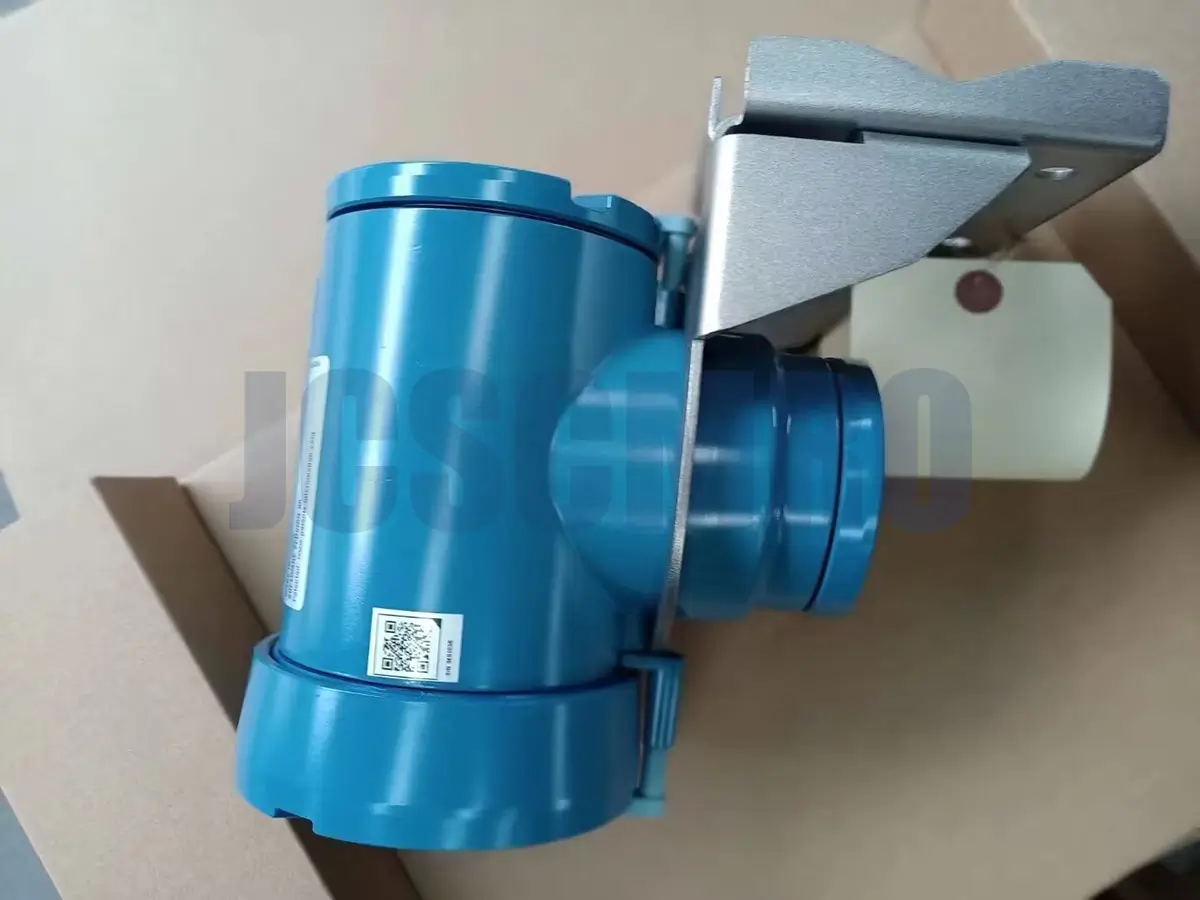

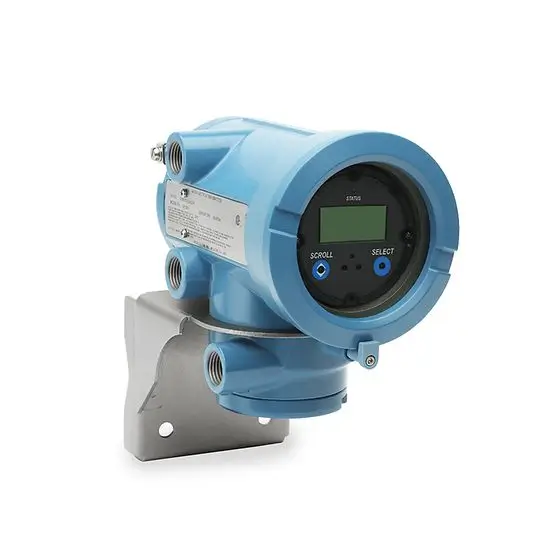

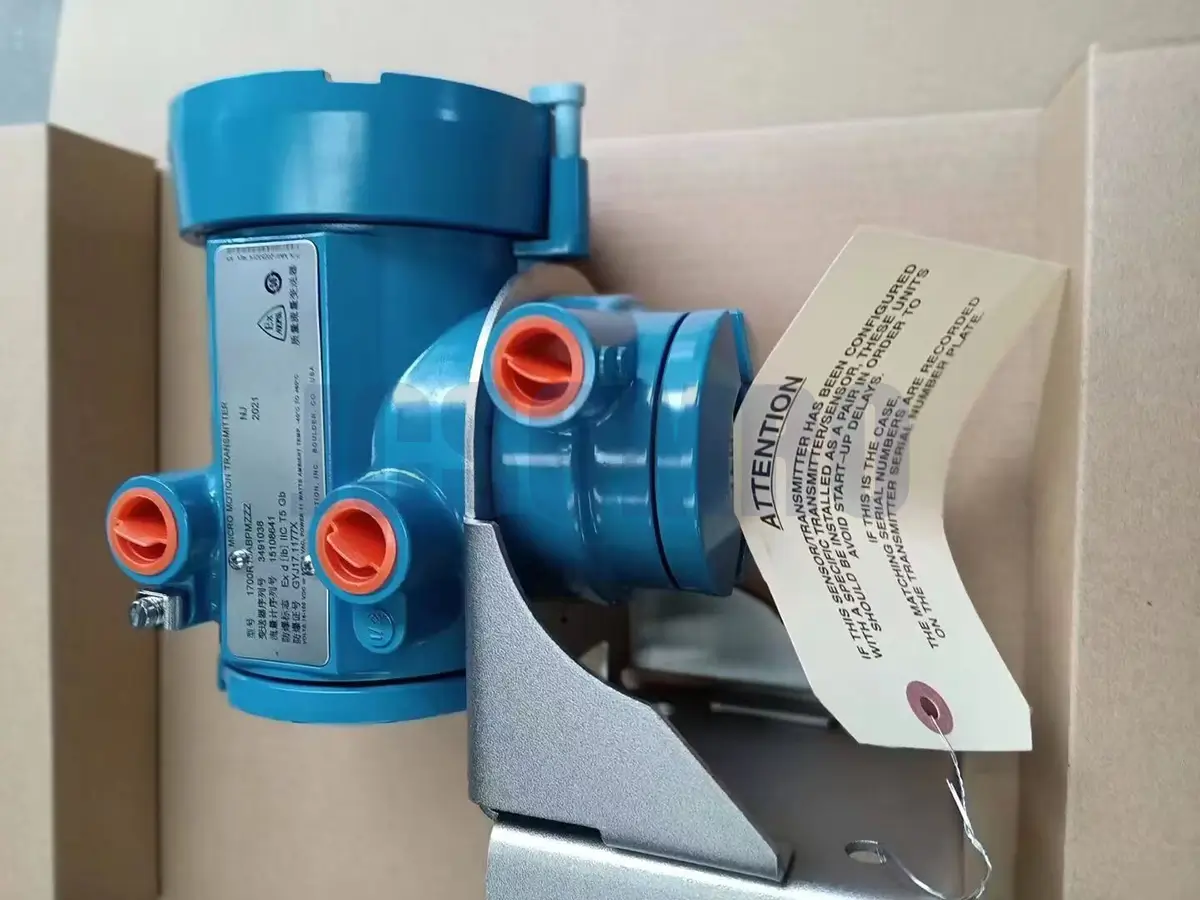

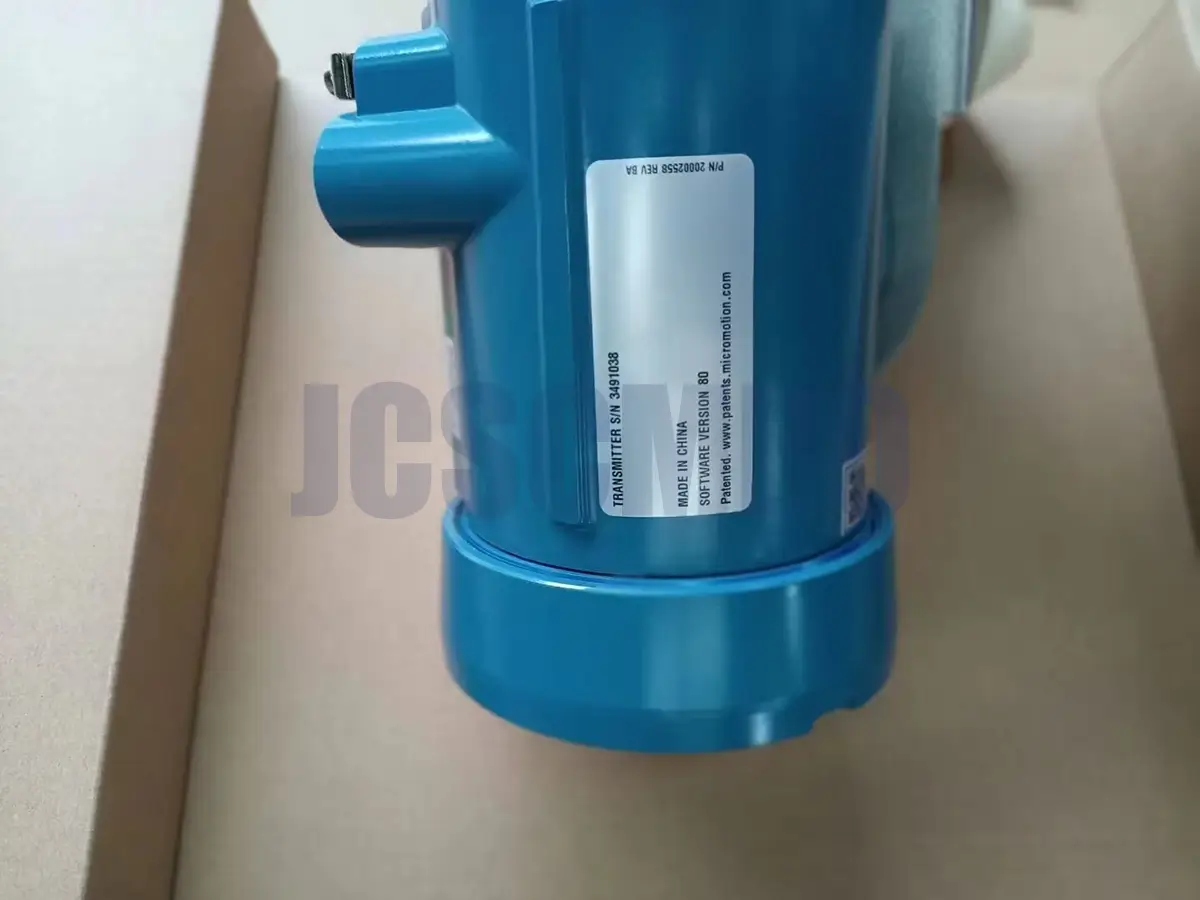

The Micro Motion 1700 Transmitter is a compact and efficient device designed for use with Micro Motion Coriolis flow meters. It offers reliable mass flow measurement and is equipped with a user-friendly interface, including a two-line LCD display and optical switches for easy operation.
Free Online Product Selection Service
To pick up today
Fast Shipping & Competitive pricing
Our courier will deliver to the specified address
Min. order: 1 piece & 2-Year Warranty
DHL courier will deliver to the specified address
Payment Methods:
| Output variables | Mass flow |
| Volume flow | |
| Local display | Standard user interface with 2-line LCD panel |
| Two optical switches for local operation | |
| Glass or plastic lens options | |
| Power | Self-switching AC/DC input, automatically recognizes supply voltage |
| 85 to 265 VAC, 50/60 Hz, 6 watts typical, 11 watts maximum | |
| 18 to 100 VDC, 6 watts typical, 11 watts maximum | |
| Complies with low voltage directive 2006/95/EC per EN 61010-1 (IEC 61010-1) with amendment 2, and Installation (Overvoltage) Category II, Pollution Degree 2 | |
| Input/output signals | One active 4–20 mA output |
| One active frequency output | |
| Frequency output can be configured as a discrete output | |
| HART | |
| Bell 202 signal is superimposed on the primary milliamp output | |
| Mounting options | Field-mount |
| Integrally mounted to a Micro Motion F-Series, R-Series, or H-Series sensor | |
| Remotely mounted to any 4-wire or 9-wire Micro Motion Coriolis sensor | |
| Application types | Continuous process control |
| Two-phase flow/entrained gas | |
| Meter verification | |
| SIS Certified | |
| Hazardous approvals | Class I, Div. 1 |
| Class I, Div. 2 | |
| Zone 1 | |
| Zone 2 |
