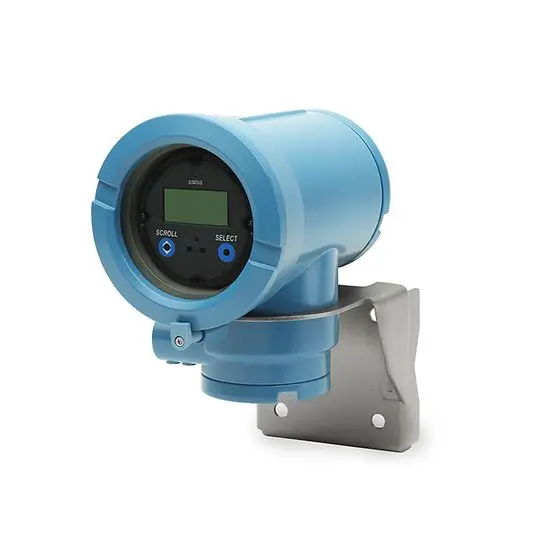

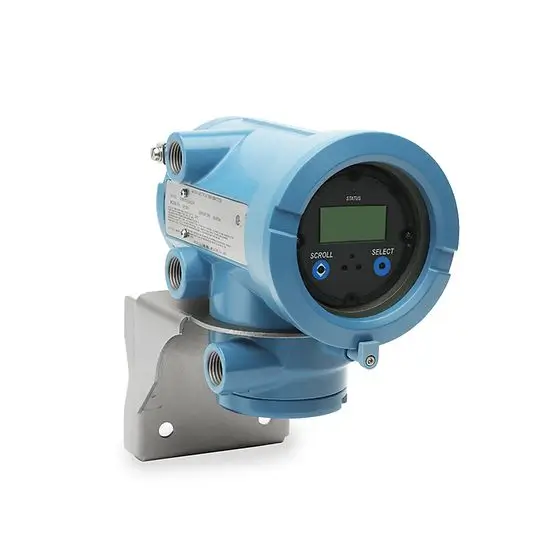

The Micro Motion 2700 is a high-performance mass flow meter designed for industrial applications. Utilizing advanced Coriolis technology, it delivers precise measurements of mass flow, volume flow, and density for a variety of liquids and gases. Its robust construction ensures durability in harsh environments, while features like real-time data transmission enhance operational efficiency. The 2700 is an ideal choice for businesses looking for reliable and accurate flow measurement solutions.
Free Online Product Selection Service
To pick up today
Fast Shipping & Competitive pricing
Our courier will deliver to the specified address
Min. order: 1 piece & 2-Year Warranty
DHL courier will deliver to the specified address
Payment Methods:
| Output variables | Mass & volume flow |
| Net product content / flow | |
| Temperature | |
| Density | |
| Concentration | |

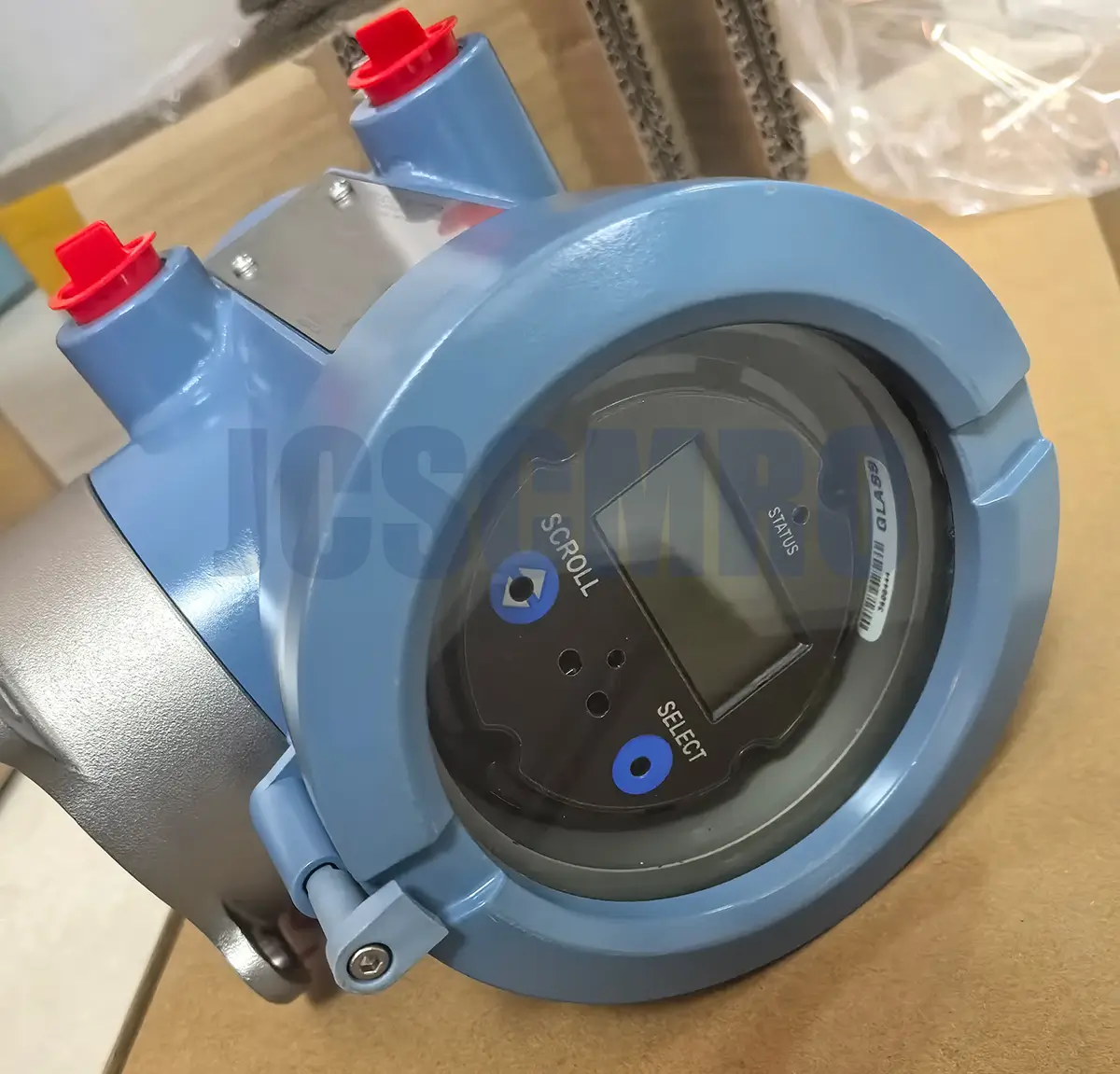

| Local display | Standard user interface with 2-line LCD panel |
| Two optical switches for local operation | |
| Glass or plastic lens options | |
| Power | Self-switching AC/DC input, automatically recognizes supply voltage |
| 85 to 265 VAC, 50/60 Hz, 6 watts typical, 11 watts maximum | |
| 18 to 100 VDC, 6 watts typical, 11 watts maximum | |
| Complies with low voltage directive 2006/95/EC per EN 61010-1 (IEC 61010-1) with amendment 2, and Installation (Overvoltage) Category II, Pollution Degree 2 | |
| Input/output signals | Not intrinsically safe |
| Analog output option: | |
| One active 4–20 mA output | |
| One active frequency output | |
| Frequency output can be configured as a discrete output | |
| Configurable I/O option: | |
| One or two active 4-20 mA outputs | |
| One or two active/passive frequency outputs | |
| One or two active/passive discrete outputs | |
| One discrete input | |
| Intrinsically safe | |
| Analog output option: | |
| One passive 4-20 mA output | |
| One passive frequency output | |
| Frequency output can be configured as a discrete output | |
| Foundation™ fieldbus (Obsolete) | |
| optionally non-incendive | |
| One Foundation fieldbus H1 output | |
| PROFIBUS-PA (Obsolete) | |
| One PROFIBUS-PA output | |
| HART/WirelessHART | |
| Bell 202 signal is superimposed on the primary milliamp output | |
| WirelessHART available via THUM adapter | |
| HART communication is unavailable on Foundation fieldbus and PROFIBUS-PA transmitter versions | |
| Mounting options | Field-mount |
| Integrally mounted to a Micro Motion F-Series, R-Series, or H-Series sensor | |
| Remotely mounted to any 4-wire or 9-wire Micro Motion Coriolis sensor | |
| Application types | Continuous process control |
| Custody transfer | |
| Two-phase flow/entrained gas | |
| Meter verification | |
| SIS Certified | |
| Hazardous approvals | Class I, Div. 1 |
| Class I, Div. 2 | |
| Zone 1 | |
| Zone 2 |
