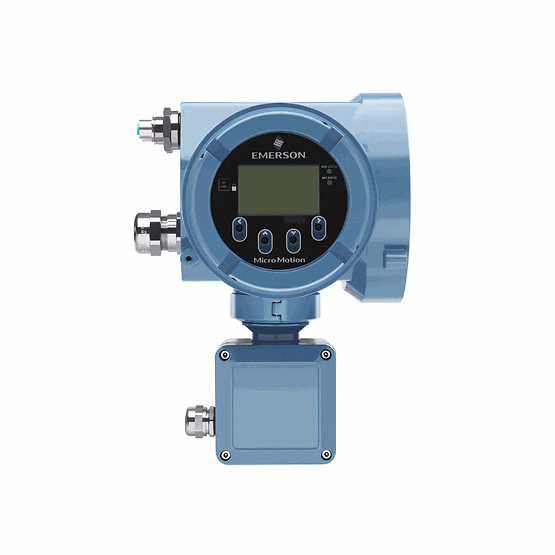

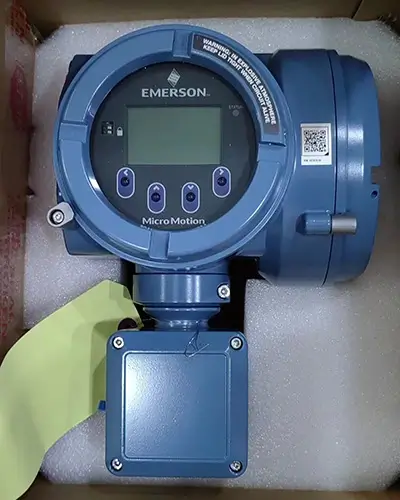

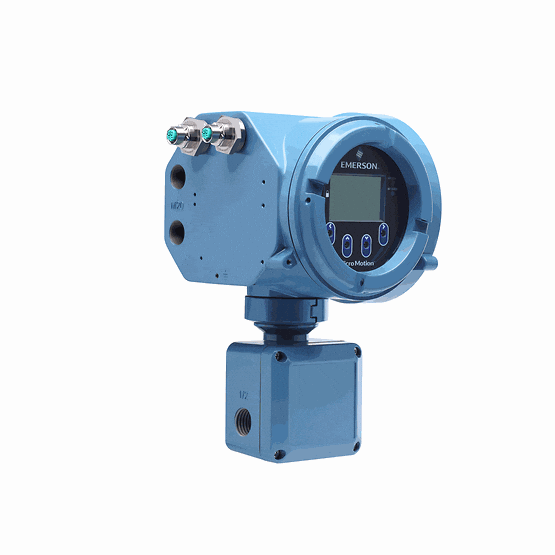

The Micro Motion 5700 Field-Mount Transmitter stands out with its multi-variable measurement capabilities, allowing simultaneous monitoring of mass flow, density, and temperature, making it ideal for complex process control applications.
Free Online Product Selection Service
To pick up today
Fast Shipping & Competitive pricing
Our courier will deliver to the specified address
Min. order: 1 piece & 2-Year Warranty
DHL courier will deliver to the specified address
Payment Methods:
The Micro Motion 5700 Field-Mount Transmitter stands out with its multi-variable measurement capabilities, allowing simultaneous monitoring of mass flow, density, and temperature, making it ideal for complex process control applications.

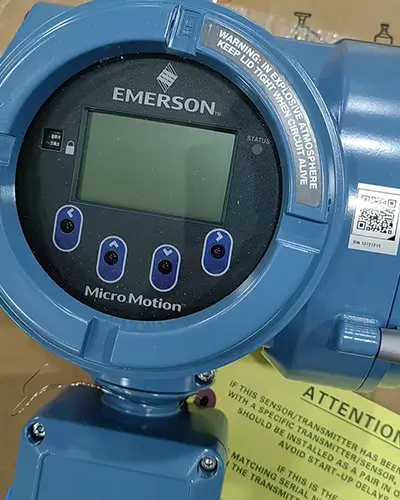

| Local display | Graphical backlit display |
| Four-button optical controls | Flowmeter-status LED |
| Supports English, German, French, Spanish, Portuguese, Russian, Chinese, and Japanese languages. | |
| Power | Self-switching AC/DC input, automatically recognizes supply voltage |
| 85 to 240 VAC, 50/60 Hz, 6 watts typical, 11 watts maximum | |
| 18 to 100 VDC, 6 watts typical, 11 watts maximum | |
| Complies with Low Voltage Directive 2006/95/EC per IEC 61010-1 Ed. 3.0 2010-06; Overvoltage Category II, Pollution Degree 2 | |
| Universal Service Port | Universal Service Port design allows for connection and data transfer using standard, readily available equipment. |
| Configurable I/O version | Up to 5 licensable channels with the following possible configurations: |
| 1 to 3 4-20 mA outputs | |
| 1 to 3 Pulse outputs | |
| 1 to 3 Discrete outputs | |
| 1 to 2 Discrete inputs | |
| 1 mA input | |
| 1 Modbus/RS-485 | |

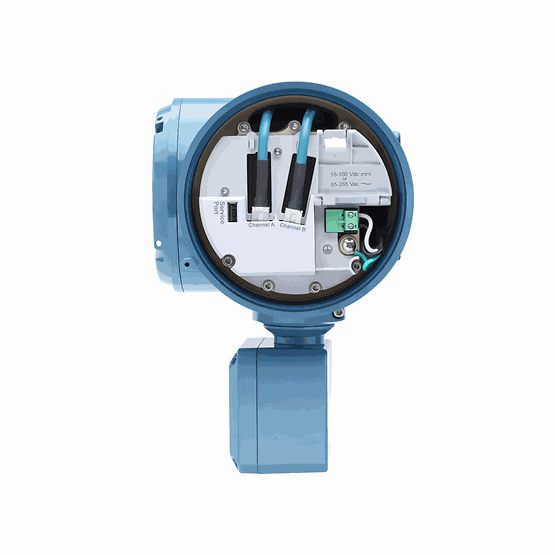

| Channel A: mA/HART | |
| Channel B: mA/FO/DO | |
| Channel C: mA/FO/DO/DI | |
| Channel D: mA-input/FO/DO/DI | |
| Channel E: Modbus RS-485 | |
| Communication Protocol | WirelessHART |
| WirelessHART available with the 775 Smart Wireless THUM adapter. | |
| FOUNDATION Fieldbus version | FOUNDATION Fieldbus channel |
| mA output | |
| Pulse output | |
| PROFIBUS-PA version | PROFIBUS-PA channel |
| mA IS output | |
| Pulse IS output | |
| Wi-Fi Display Option: | Wi-Fi display option enables point-to-point wireless communication in order to configure and characterize the meter, download historical files, and run Smart Meter Verification for troubleshooting purposes. Available for the 5700 Config I/O version only. |
| Intrinsically Safe version | Up to 4 licensable IS channels with the following configurations: |
| Channel A: mA/HART | |
| Channel B: mA | |
| Channel C: mA/FO | |
| Channel D: FO | |
| Channel E: Not Used | |
| SIL Certified Device | Available – Uses an internal readback loop to verify the milliamp output |
| Ethernet version | Dual Ethernet ports supporting EtherNet/IP, Modbus TCP, and PROFINET all in one device |
| Additional channel included configurable to mA output, pulse output, discrete output, or discrete input | |
| Pre-installed M12 quick connections available as an option | |

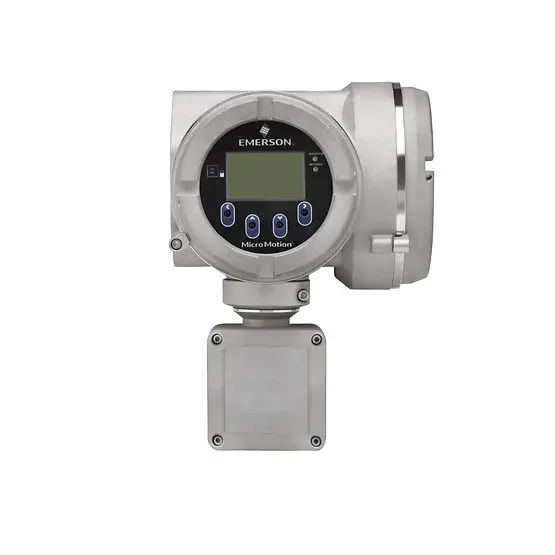

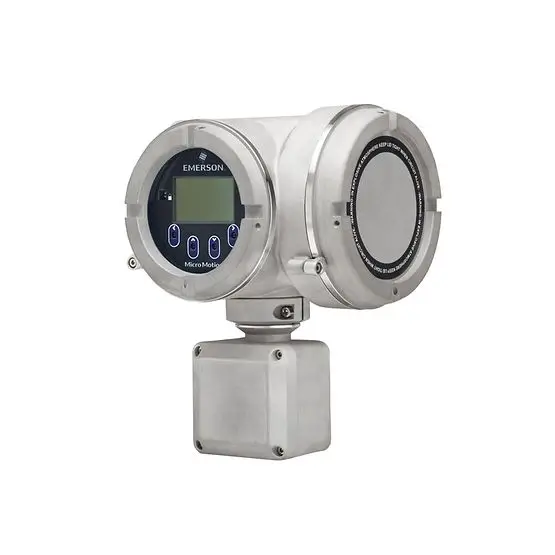

| Mounting options | Field-mount aluminum and stainless steel housing options |
| Integrally mounted to a Micro Motion ELITE (CMFS), F-series, H-series, R-series, or T-series Coriolis sensor (aluminum only) | |
| Remotely mounted to any 4-wire or 9-wire Micro Motion ELITE®, F-series, H-series, R-series, or T-series Coriolis sensor (aluminum and stainless steel versions) | |
| Application types | Smart Meter Verification Professional |
| Discrete batch control | |
| Petroleum measurement and API correction option | |
| Concentration measurement | |
| Advanced Phase Measurement for two phase flow remediation | |
| Piecewise Linearization for Gas Applications | |
| Certificates/Approvals | Hazardous approvals |
| Class I, Div. 1 | |
| Class I, Div. 2 | |
| Zone 1 | |
| Zone 2 | |
| SIL/SIS Certification | |
| 5700 Config I/O and Intrinsically Safe versions are certified for SIL2 single use and SIL3 multiple use safety applications per IEC 61508. Please refer to the Safety Manual in the document manuals and guides section. |
