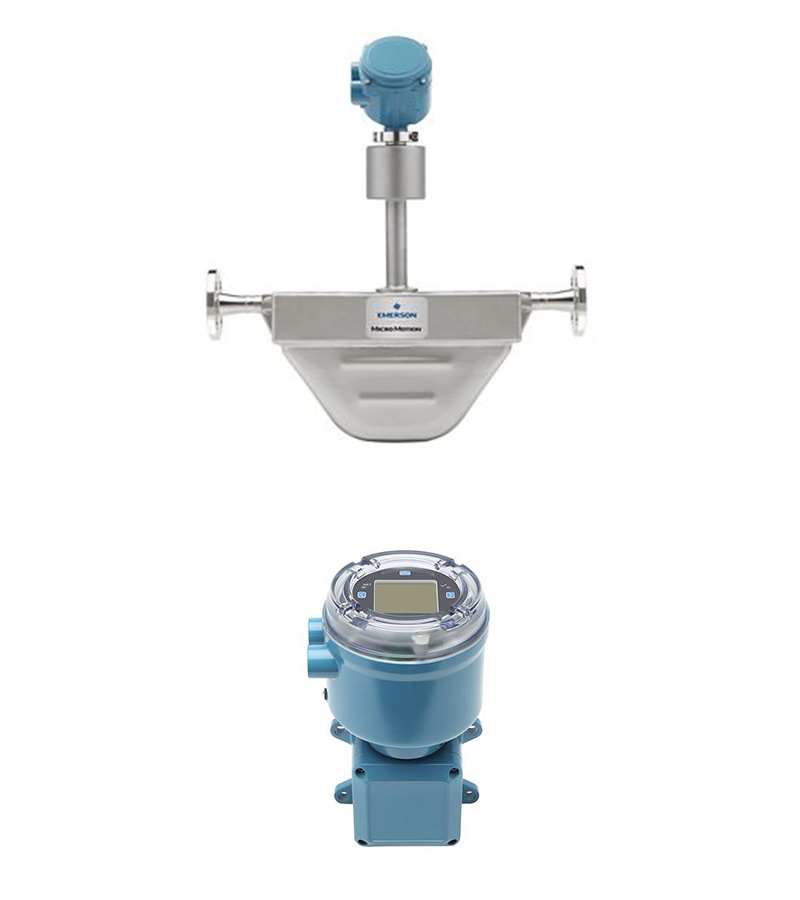

As a supplier of high-quality flow measurement equipment, the Micro Motion F-Series Coriolis Meter combines the F050A sensor and 1600 transmitter to deliver exceptional performance and reliability. The F050A sensor, made of 316L stainless steel, is designed for high-temperature and high-pressure environments, ensuring accurate measurement of both liquids and gases. The 1600 transmitter features a graphical backlit display and intelligent diagnostic capabilities for real-time monitoring of instrument status. We offer ample inventory and fast delivery to ensure customers receive support when it matters most. Choose the Micro Motion F-Series for superior quality and excellent service.
Free Online Product Selection Service
To pick up today
Fast Shipping & Competitive pricing
Our courier will deliver to the specified address
Min. order: 1 piece & 2-Year Warranty
DHL courier will deliver to the specified address
Payment Methods:
| Micro Motion F050A Coriolis Meter | 1/2 Inch (DN15), 316L Stainless Steel, High Temperature |
| Mass Flow Accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Mass Flow Repeatability (Liquid) | ±0.050% of rate |
| Volume Flow Accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Volume Flow Repeatability (Liquid) | ±0.050% of rate |
| Mass Flow Accuracy (Gas) | ±0.5% of rate |
| Mass Flow Repeatability (Gas) | ±0.25% of rate |
| Density Accuracy (Liquid) | ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Max Working Pressure | 1,450 psig (100 barg) |
| Approvals and Certifications | UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects |
| Micro Motion™ 1600 Compact Transmitter | Graphical backlit display, Four-button mechanical controls |
| Power Supply | Power over Ethernet available, 18 to 100 VDC, 6 watts typical, 11 watts maximum |
| Universal Service Port | Design allows configuration and data transfer using USB-C terminal |
| Ethernet Version | Supports EtherNet/IP and Modbus TCP |
| HART® Version | Supports full HART® communication |
| Mounting | Field-mount aluminum and hygienic stainless steel options |
| Application Types | Smart Meter Verification, Discrete batch control, Petroleum measurement |
| Hazardous Approvals | Class I, Div. 2, Zone 2 |
