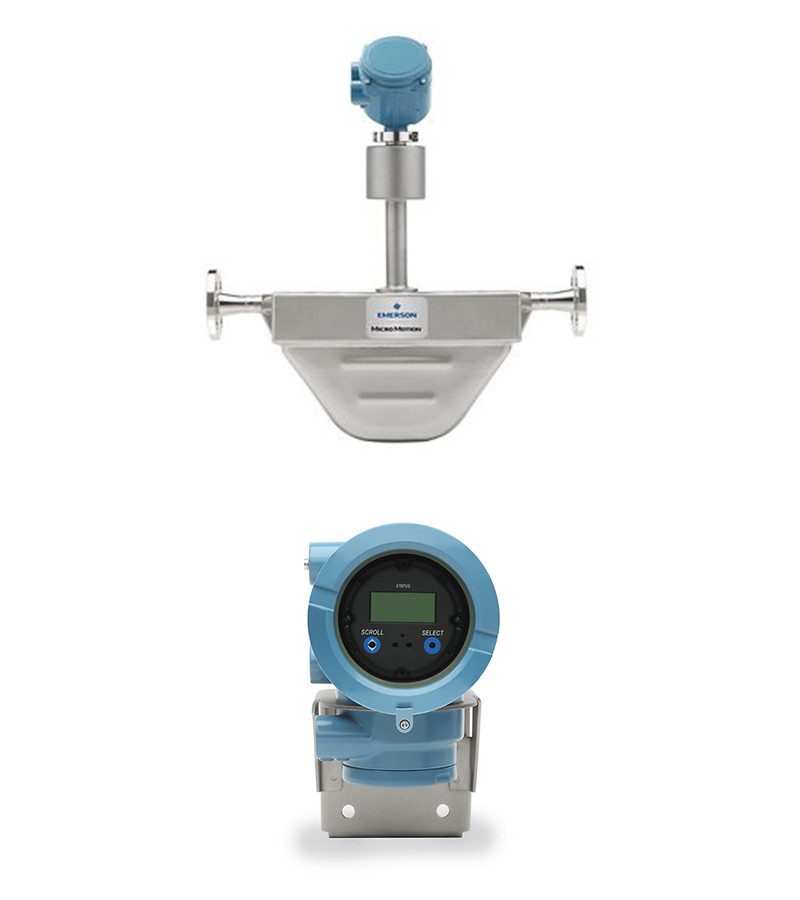

We offer the Micro Motion F-Series Coriolis Meter, consisting of the F050A sensor and the 1700 transmitter, ensuring exceptional measurement accuracy and reliability. With our strong supply chain, we guarantee timely delivery and efficient service, complemented by comprehensive after-sales support to help you meet various demands. Our competitive pricing will also assist you in optimizing costs and enhancing business efficiency. Choose us, and you’ll experience unparalleled product value and service quality.
Free Online Product Selection Service
To pick up today
Fast Shipping & Competitive pricing
Our courier will deliver to the specified address
Min. order: 1 piece & 2-Year Warranty
DHL courier will deliver to the specified address
Payment Methods:
| Micro Motion F050A Coriolis Meter | 1/2 Inch (DN15), 316L Stainless Steel, High Temperature |
| Mass Flow Accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Mass Flow Repeatability (Liquid) | ±0.050% of rate |
| Volume Flow Accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Volume Flow Repeatability (Liquid) | ±0.050% of rate |
| Mass Flow Accuracy (Gas) | ±0.5% of rate |
| Mass Flow Repeatability (Gas) | ±0.25% of rate |
| Density Accuracy (Liquid) | ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Max Working Pressure | 1,450 psig (100 barg) |
| Approvals and Certifications | UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects |
| Micro Motion 1700 Flow Transmitter | Single Variable Field Mount |
| Output Variables | Mass flow, Volume flow |
| Local Display | Standard user interface with 2-line LCD panel |
| Power | 85 to 265 VAC, 50/60 Hz, 6 watts typical, 11 watts maximum |
| Input/Output Signals | One active 4–20 mA output, One active frequency output |
| Mounting Options | Field-mount, Integrally mounted to Micro Motion sensors |
| Application Types | Continuous process control, Two-phase flow/entrained gas, Meter verification |
| Hazardous Approvals | Class I, Div. 1, Class I, Div. 2, Zone 1, Zone 2 |
