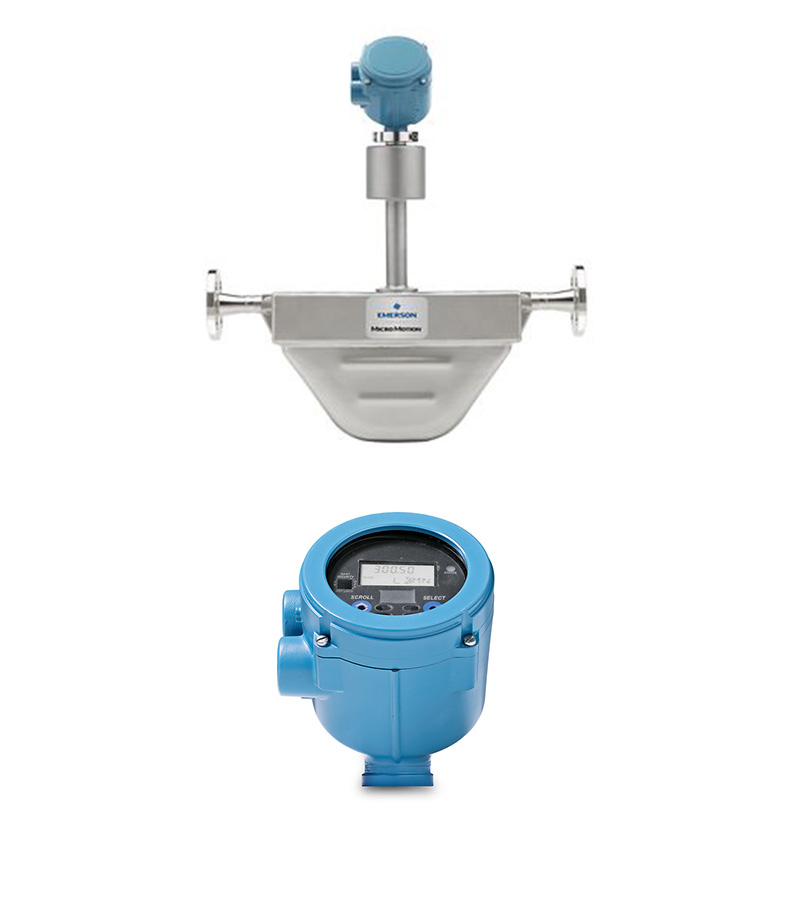

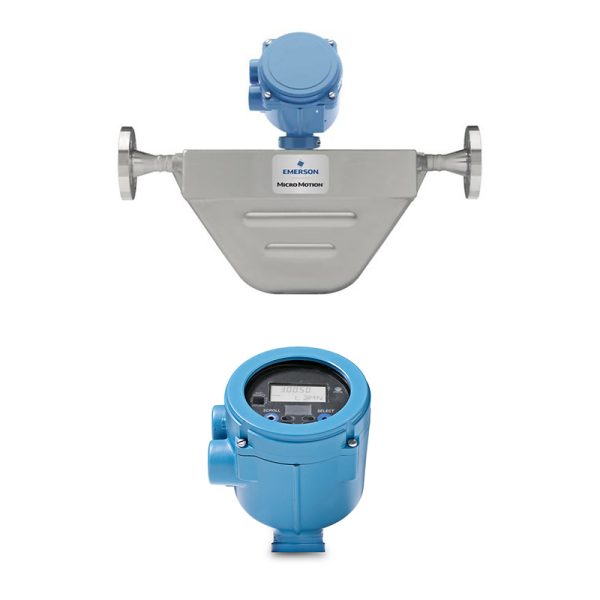

We offer the Micro Motion F-Series Coriolis Meter, consisting of the F050A sensor and 2400S transmitter, which delivers high-precision flow and density measurement capabilities. The F050A sensor is made of 316L stainless steel, designed to withstand high temperatures and pressures, ensuring reliability in harsh environments, with mass flow accuracy of up to ±0.10%. The compact 2400S transmitter supports multiple output variables and features Smart Meter Verification for real-time performance monitoring. It holds international certifications including CSA, ATEX, and IECEx, ensuring safety and compliance. We promise ample stock, quick delivery, and high-quality after-sales service to meet customers’ needs for efficient and reliable flow measurement equipment. Choose the Micro Motion F-Series to enhance your business operations.
Free Online Product Selection Service
To pick up today
Fast Shipping & Competitive pricing
Our courier will deliver to the specified address
Min. order: 1 piece & 2-Year Warranty
DHL courier will deliver to the specified address
Payment Methods:
| Micro Motion F050A Coriolis Meter | 1/2 Inch (DN15), 316L Stainless Steel, High Temperature |
| Mass Flow Accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Mass Flow Repeatability (Liquid) | ±0.050% of rate |
| Volume Flow Accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Volume Flow Repeatability (Liquid) | ±0.050% of rate |
| Mass Flow Accuracy (Gas) | ±0.5% of rate |
| Mass Flow Repeatability (Gas) | ±0.25% of rate |
| Density Accuracy (Liquid) | ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Max Working Pressure | 1,450 psig (100 barg) |
| Approvals and Certifications | UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects |
| Micro Motion 2400S Compact Transmitter | Integral-Mount |
| Output Variables | Mass & volume flow, Net product content/flow, Temperature, Density, Concentration |
| Local Display | Standard user interface with 2-line LCD panel |
| Power | Self-switching AC/DC input, 85–265 VAC or 18–100 VDC |
| Input/Output Signals (Analog) | One active 4–20 mA output; configurable frequency or discrete outputs |
| Input/Output Signals (PROFIBUS-DP) | Digital 2-way PROFIBUS-DP signal |
| Mounting Options | Field mount, integral with sensor |
| Application Types | Continuous process control, Two-phase flow/entrained gas, Meter verification |
| Hazardous Approvals | C1D2, Zone 2 |
