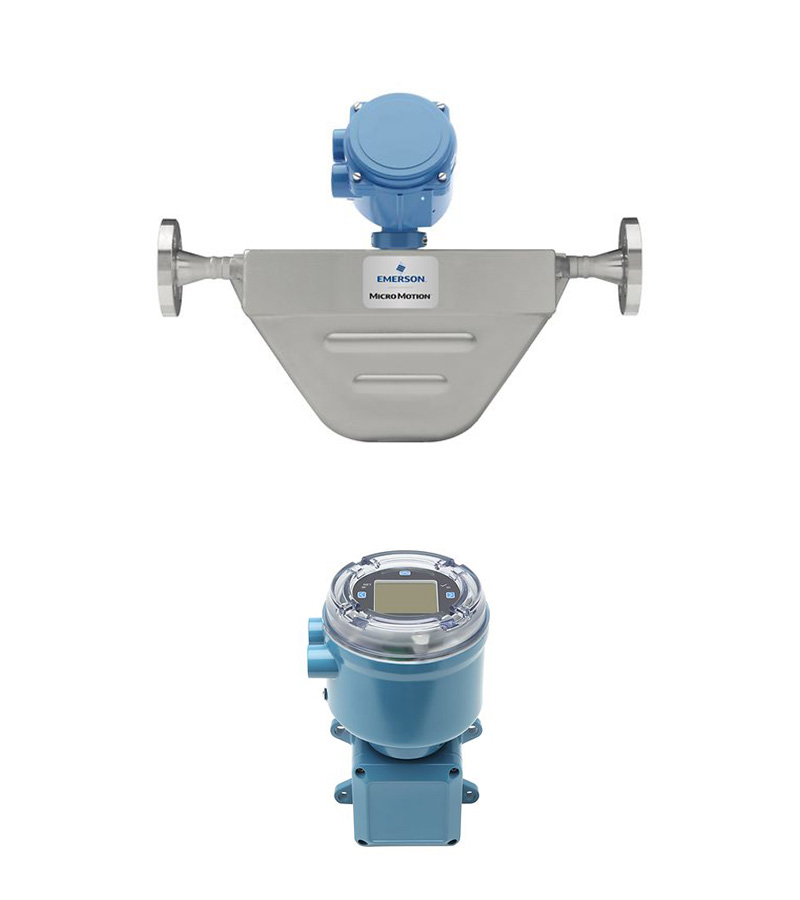

We offer the Micro Motion F-Series Coriolis Meter, including the F050P sensor and the 1600 transmitter. The F050P sensor is made of 316L stainless steel, enabling precise flow measurement in high-pressure environments, and is designed for easy cleaning. The 1600 transmitter features a graphical backlit display and Power over Ethernet, simplifying installation and monitoring while providing a data historian to optimize decision-making. By choosing us, you will receive competitive pricing, outstanding customer service, and fast delivery, ensuring efficient production and business growth.
Free Online Product Selection Service
To pick up today
Fast Shipping & Competitive pricing
Our courier will deliver to the specified address
Min. order: 1 piece & 2-Year Warranty
DHL courier will deliver to the specified address
Payment Methods:
| Micro Motion F050P Coriolis Meter | 1/2 Inch (DN15), 316L Stainless Steel, High Pressure |
| Mass Flow Accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Mass Flow Repeatability (Liquid) | ±0.050% of rate |
| Volume Flow Accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Volume Flow Repeatability (Liquid) | ±0.050% of rate |
| Mass Flow Accuracy (Gas) | ±0.5% of rate |
| Mass Flow Repeatability (Gas) | ±0.25% of rate |
| Density Accuracy (Liquid) | ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Max Working Pressure | 5,000 psig (344 barg) |
| Approvals and Certifications | UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects |
| Specification | |
|---|---|
| Micro Motion 1600 Compact Transmitter | |
| Display/Interface | Graphical backlit display, Four-button mechanical controls |
| Power Supply | Power over Ethernet available, 18 to 100 VDC, 6 watts typical, 85 to 240 VAC, 3.5 watts typical |
| Universal Service Port | Allows configuration and transfer of data using a standard USB-C terminal |
| Mounting Options | Field-mount aluminum and hygienic stainless steel housing, Integrally mounted to various Micro Motion sensors |
| Application Types | Smart Meter Verification, Discrete batch control, Concentration measurement, Advanced Phase Measurement |
| Hazardous Approvals | Class I, Div. 2, Zone 2 |
