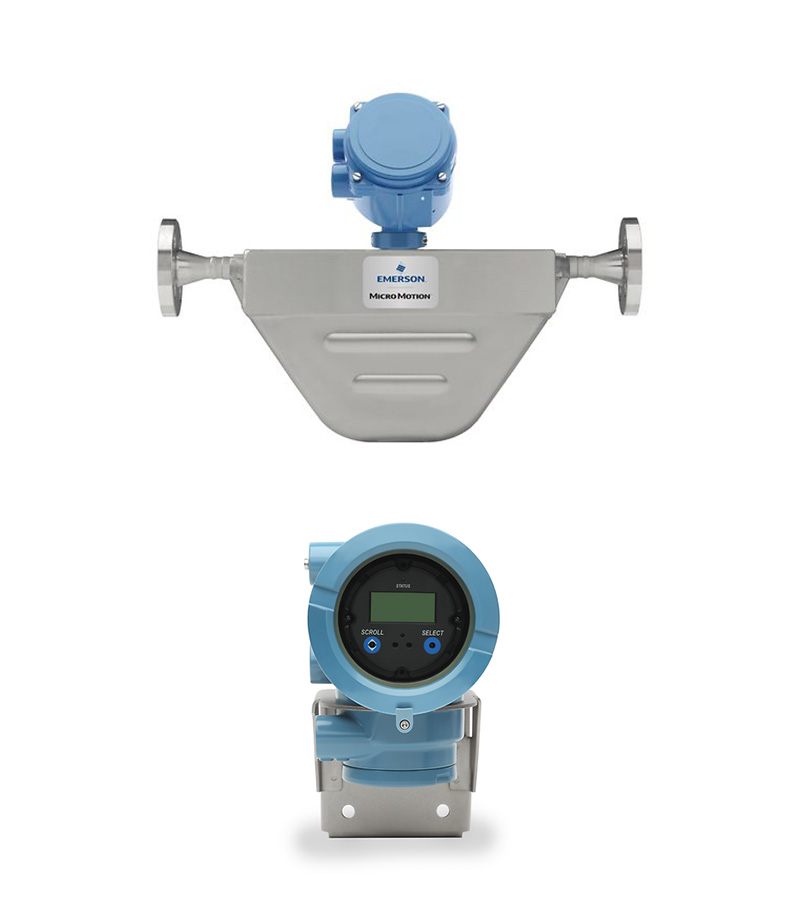

As a supplier, we offer the Micro Motion F-Series Coriolis Meter, consisting of the F050P sensor and the 2700 transmitter, designed to achieve high-precision mass and volume flow measurements. The F050P sensor is made of 316L stainless steel and boasts excellent pressure resistance, making it suitable for various fluid applications, with flow accuracy of up to ±0.20%. The 2700 transmitter supports multiple output variables and features robust monitoring and diagnostic capabilities, providing real-time data on temperature, density, and concentration to meet diverse installation needs. We are committed to providing high-quality after-sales service and technical support, ensuring a smooth experience for our customers. Choosing our products will greatly enhance the reliability and efficiency of your process control.
Free Online Product Selection Service
To pick up today
Fast Shipping & Competitive pricing
Our courier will deliver to the specified address
Min. order: 1 piece & 2-Year Warranty
DHL courier will deliver to the specified address
Payment Methods:
| Micro Motion F050P Coriolis Meter | 1/2 Inch (DN15), 316L Stainless Steel, High Pressure |
| Mass Flow Accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Mass Flow Repeatability (Liquid) | ±0.050% of rate |
| Volume Flow Accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Volume Flow Repeatability (Liquid) | ±0.050% of rate |
| Mass Flow Accuracy (Gas) | ±0.5% of rate |
| Mass Flow Repeatability (Gas) | ±0.25% of rate |
| Density Accuracy (Liquid) | ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Maximum Working Pressure | 5,000 psig (344 barg) |
| Approvals & Certifications | UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects |
| Micro Motion 2700 Field And Integral-Mount Multivariable Flow And Density Transmitter | |
| Output Variables | Mass & volume flow, net product content/flow, temperature, density, concentration |
| Local Display | Standard user interface with 2-line LCD panel, two optical switches |
| Power | Self-switching AC/DC input, 85 to 265 VAC, 18 to 100 VDC |
| Input/Output Signals | Not intrinsically safe, various analog output options |
| Mounting Options | Field-mount, integrally or remotely mounted to Micro Motion sensors |
| Application Types | Continuous process control, custody transfer, two-phase flow, meter verification |
| Hazardous Approvals | Class I, Div. 1; Class I, Div. 2; Zone 1; Zone 2 |
