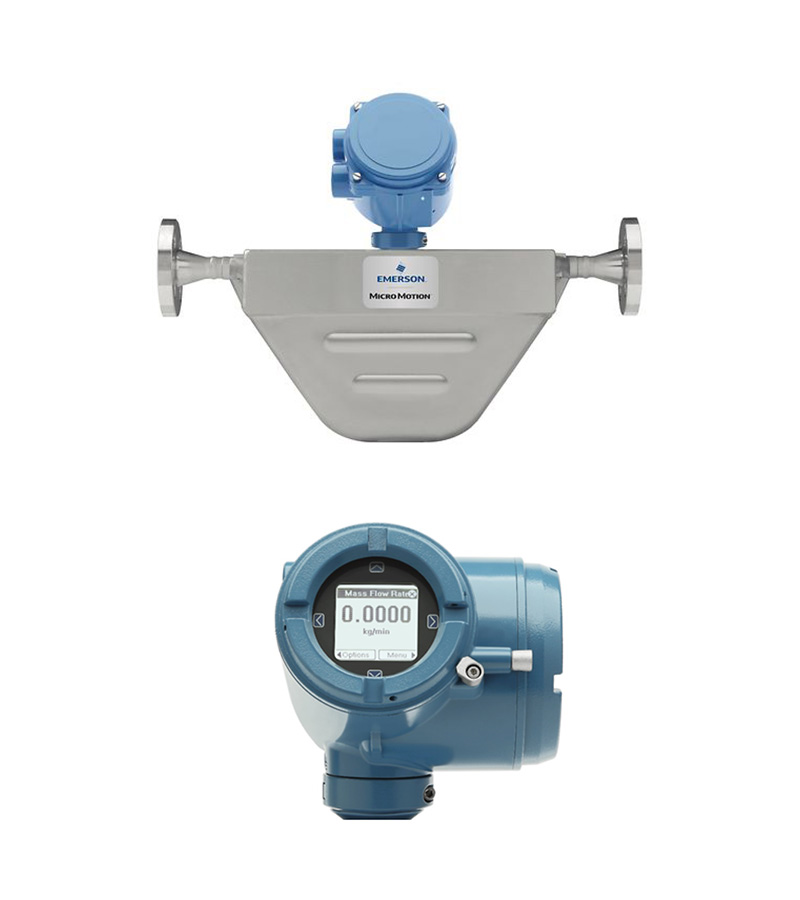

As a supplier, we offer the Micro Motion F-Series Coriolis Meter, which includes the F050P sensor and the 4200 transmitter. This high-performance combination delivers exceptional accuracy in mass and volume flow measurement, suitable for a variety of industry needs. Our robust supply chain ensures ample inventory to quickly meet customer demands, and we provide comprehensive technical support and excellent after-sales service to keep your production line running efficiently. By choosing our products, you will benefit from precise measurement and outstanding service.
Free Online Product Selection Service
To pick up today
Fast Shipping & Competitive pricing
Our courier will deliver to the specified address
Min. order: 1 piece & 2-Year Warranty
DHL courier will deliver to the specified address
Payment Methods:
| Micro Motion F050P Coriolis Meter | 1/2 Inch (DN15), 316L Stainless Steel, High Pressure |
| Mass Flow Accuracy (Liquid) | ±0.20% of rate (standard) ±0.15% of rate (optional) ±0.10% of rate (optional) |
| Mass Flow Repeatability (Liquid) | ±0.050% of rate |
| Volume Flow Accuracy (Liquid) | ±0.20% of rate (standard) ±0.15% of rate (optional) ±0.10% of rate (optional) |
| Volume Flow Repeatability (Liquid) | ±0.050% of rate |
| Mass Flow Accuracy (Gas) | ±0.5% of rate |
| Mass Flow Repeatability (Gas) | ±0.25% of rate |
| Density Accuracy (Liquid) | ±0.002 g/cm³ (2.0 kg/m³) (standard) ±0.001 g/cm³ (1.0 kg/m³) (optional) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Maximum Working Pressure | 5,000 psig (344 barg) |
| Approvals and Certifications | UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects |
| Micro Motion 4200 2-Wire Transmitter | |
| Local Display | Graphical display with optional backlight setting Four-button capacitive touch controls Supports multiple languages: English, German, French, Spanish, Portuguese, Russian, Chinese, Japanese |
| Power | 2-wire loop-powered transmitter Minimum 17.75 V lift off voltage |
| Input/Output Signals | Up to 2 output channels: Channel A: loop-powered 4-20mA/HART Channel B: externally-powered configurable for 4-20mA, frequency output or discrete output (Licensable Option) |
| WirelessHART | Available with THUM adapter |
| Mounting Options | Field-mount Integrally mounted to various Micro Motion sensors Remotely mounted 9-wire with mounting bracket |
| Application Types | Smart Meter Verification, Concentration measurement, API Referral |
| Hazardous Approvals | Class I, Div. 1 Class I, Div. 2 Zone 1 Zone 2 Intrinsically Safe Explosion Proof |
