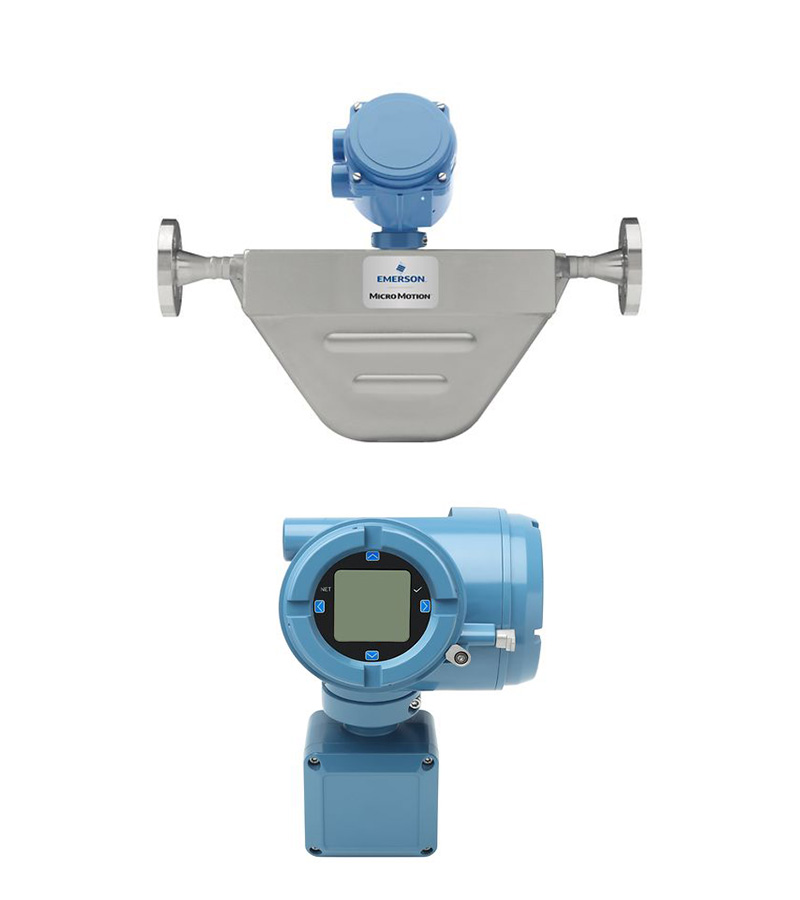

As a supplier, we are proud to offer the Micro Motion™ F-Series Coriolis Meter, which consists of the F050P sensor and the 4700 transmitter, ensuring the highest accuracy in flow and density measurement. The F050P sensor features a corrosion-resistant 316L stainless steel design, suitable for high-pressure applications, with exceptional quality control capabilities and very low flow errors. The 4700 transmitter offers flexible configuration options, supporting real-time data monitoring and Smart Meter Verification, greatly simplifying your operational processes. Our system is certified with multiple international approvals, ensuring safety and reliability, and providing continuous support for your production. By choosing our Micro Motion™ F-Series, you will gain an efficient and precise measurement solution that enhances overall production efficiency.
Free Online Product Selection Service
To pick up today
Fast Shipping & Competitive pricing
Our courier will deliver to the specified address
Min. order: 1 piece & 2-Year Warranty
DHL courier will deliver to the specified address
Payment Methods:
| Micro Motion F050P Coriolis Meter | 1/2 Inch (DN15), 316L Stainless Steel, High Pressure |
| Mass Flow Accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Mass Flow Repeatability (Liquid) | ±0.050% of rate |
| Volume Flow Accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Volume Flow Repeatability (Liquid) | ±0.050% of rate |
| Mass Flow Accuracy (Gas) | ±0.5% of rate |
| Mass Flow Repeatability (Gas) | ±0.25% of rate |
| Density Accuracy (Liquid) | ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Max Working Pressure | 5,000 psig (344 barg) |
| Approvals and Certifications | UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects |
| Micro Motion 4700 Transmitter | Configurable Inputs and Outputs |
| Operating Temperature | -61 °F (-52.0 °C) to 149 °F (65.0 °C) |
| Storage Temperature | -61 °F (-52.0 °C) to 185 °F (85.0 °C) |
| Vibration Limits | Meets IEC 60068-2-6, 5 to 2000 Hz up to 1.0 g |
| Housing | NEMA 4X (IP66/67/69) polyurethane painted cast aluminum or 316 stainless steel |
| Humidity Range | 5 to 95% relative humidity, non-condensing |
| Linearity | 0.015% Span, Span = 16mA |
| Input Signal | Up to 3 pairs of wiring terminals for input/output |
| Sensor Type | 4-wire and 9-wire remote mount options |
| Power Supply | Universal (self-switching) 18VDC to 100VDC, 85VAC to 250VAC |
| Housing Weight | Integral mount: 6.48 lb (2.939 kg), Remote mount: 8.21 lb (3.724 kg) |
| Mounting Options | Available integrally or remotely mounted to various Coriolis sensors |
| Display/Interface | Standard LCD panel, Bluetooth® wireless technology option available |
