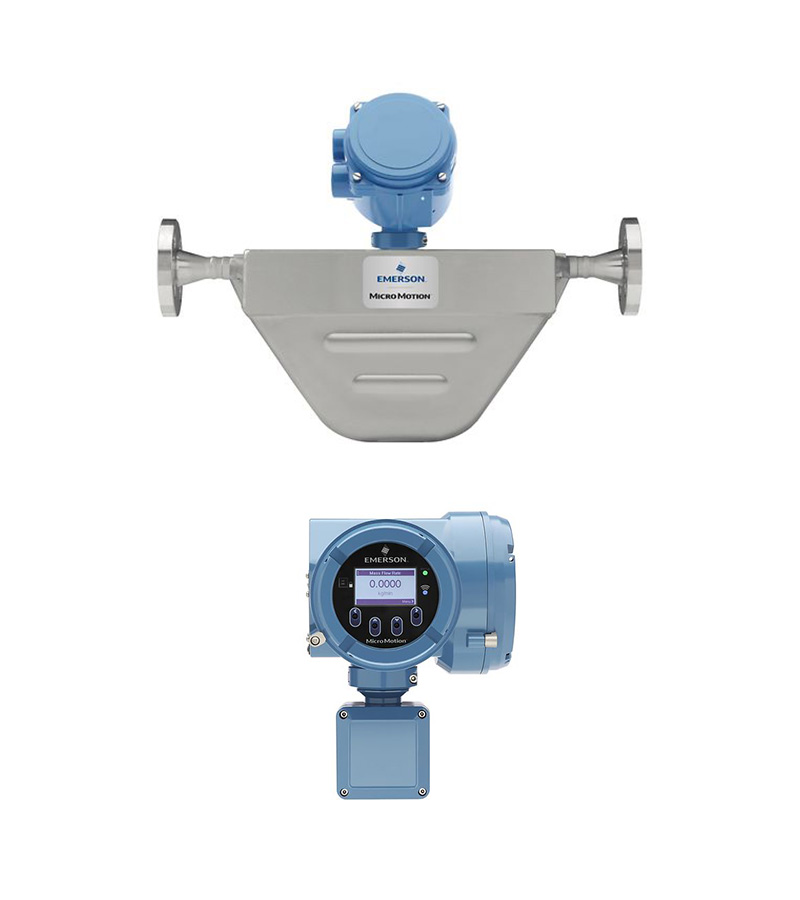

As a supplier, we proudly offer the Micro Motion F-Series Coriolis Meter, which includes the F050P sensor and 5700 transmitter, featuring exceptional measurement accuracy and a wide range of applications. Our robust inventory and competitive pricing ensure quick fulfillment of customer needs, while we provide comprehensive technical support and high-quality after-sales service to help your production line operate efficiently and reliably. Choose us for the perfect combination of outstanding products and timely support.
Free Online Product Selection Service
To pick up today
Fast Shipping & Competitive pricing
Our courier will deliver to the specified address
Min. order: 1 piece & 2-Year Warranty
DHL courier will deliver to the specified address
Payment Methods:
| Micro Motion F050P Coriolis Meter | 1/2 Inch (DN15), 316L Stainless Steel, High Pressure |
| Mass Flow Accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Mass Flow Repeatability (Liquid) | ±0.050% of rate |
| Volume Flow Accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Volume Flow Repeatability (Liquid) | ±0.050% of rate |
| Mass Flow Accuracy (Gas) | ±0.5% of rate |
| Mass Flow Repeatability (Gas) | ±0.25% of rate |
| Density Accuracy (Liquid) | ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Sensor Maximum Working Pressure | 5,000 psig (344 barg) |
| Approvals, Calibrations, and Certifications | UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects |
| Micro Motion 5700 Field-Mount Transmitter | |
| Display | Graphical backlit display with four-button optical controls and flowmeter-status LED |
| Supported Languages | English, German, French, Spanish, Portuguese, Russian, Chinese, Japanese |
| Power Supply | 85 to 240 VAC, 50/60 Hz, 6 watts typical; 18 to 100 VDC, 6 watts typical |
| Universal Service Port | Design allows for connection and data transfer using standard equipment |
| Configurable I/O Version | Up to 5 licensable channels: 4-20 mA outputs, pulse outputs, discrete outputs/inputs, Modbus/RS-485 |
| Wireless Communication | WirelessHART available with the 775 Smart Wireless THUM adapter |
| Ethernet Version | Dual Ethernet ports supporting EtherNet/IP, Modbus TCP, PROFINET |
| Mounting Options | Field-mount aluminum and stainless steel housing options |
| Application Types | Smart Meter Verification, discrete batch control, petroleum measurement |
| Certificates/Approvals | Class I, Div. 1, Class I, Div. 2, Zone 1, Zone 2; SIL/SIS Certification for SIL2 and SIL3 |
