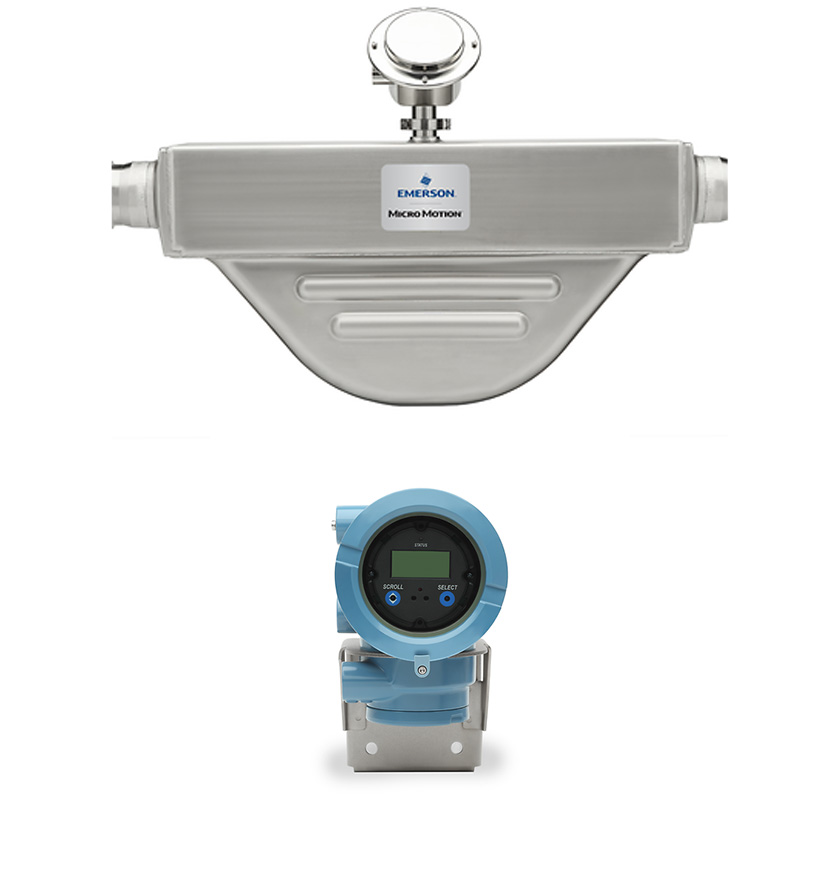

We supply the Micro Motion H-Series Hygienic Coriolis Meter, consisting of the H400F sensor and 1700 transmitter, providing an exceptional solution for liquid and gas flow measurement. The H400F sensor is made from high-quality 316L stainless steel, offering outstanding corrosion resistance and a self-draining design, ensuring product consistency and quality in sanitary environments. The 1700 transmitter supports flexible installation options and features real-time diagnostics, simplifying the flow monitoring process. Our solution is also certified with multiple approvals, including SIL2/SIL3, ensuring safety and reliability in complex applications. Choose us for fast delivery and quality after-sales service to help your business succeed.
Free Online Product Selection Service
To pick up today
Fast Shipping & Competitive pricing
Our courier will deliver to the specified address
Min. order: 1 piece & 2-Year Warranty
DHL courier will deliver to the specified address
Payment Methods:
| Specification | Details |
|---|---|
| Micro Motion H400F Hygienic Coriolis Meter | 4 Inch (DN100), 316L Stainless Steel, 15 RA Finish |
| Mass Flow Accuracy (Liquid) | Up to ±0.05% of rate |
| Mass Flow Repeatability (Liquid) | Up to ±0.025% of rate |
| Volume Flow Accuracy (Liquid) | Up to ±0.05% of rate |
| Volume Flow Repeatability (Liquid) | Up to ±0.025% of rate |
| Mass Flow Accuracy (Gas) | Up to ±0.35% of rate |
| Mass Flow Repeatability (Gas) | Up to ±0.175% of rate |
| Density Accuracy (Liquid) | Up to ±0.0005 g/cm³ (±0.5 kg/m³) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Maximum Working Pressure | 1,450 psig (100 barg) |
| Meter Approvals, Calibrations, and Certifications | • CSA • IECEx • ATEX |
| Micro Motion 1700 Single Variable Field Mount Flow Transmitter | |
| Output Variables | Mass flow Volume flow |
| Local Display | Standard user interface with 2-line LCD panel Two optical switches for local operation Glass or plastic lens options |
| Power | Self-switching AC/DC input, automatically recognizes supply voltage 85 to 265 VAC, 50/60 Hz, 6 watts typical, 11 watts maximum 18 to 100 VDC, 6 watts typical, 11 watts maximum |
| Input/Output Signals | • One active 4–20 mA output • One active frequency output • Frequency output can be configured as a discrete output |
| HART | Bell 202 signal is superimposed on the primary milliamp output |
| Mounting Options | Field-mount Integrally mounted to a Micro Motion F-Series, R-Series, or H-Series sensor Remotely mounted to any 4-wire or 9-wire Micro Motion Coriolis sensor |
| Application Types | • Continuous process control • Two-phase flow/entrained gas • Meter verification |
| Hazardous Approvals | • Class I, Div. 1 • Class I, Div. 2 • Zone 1 • Zone 2 |
