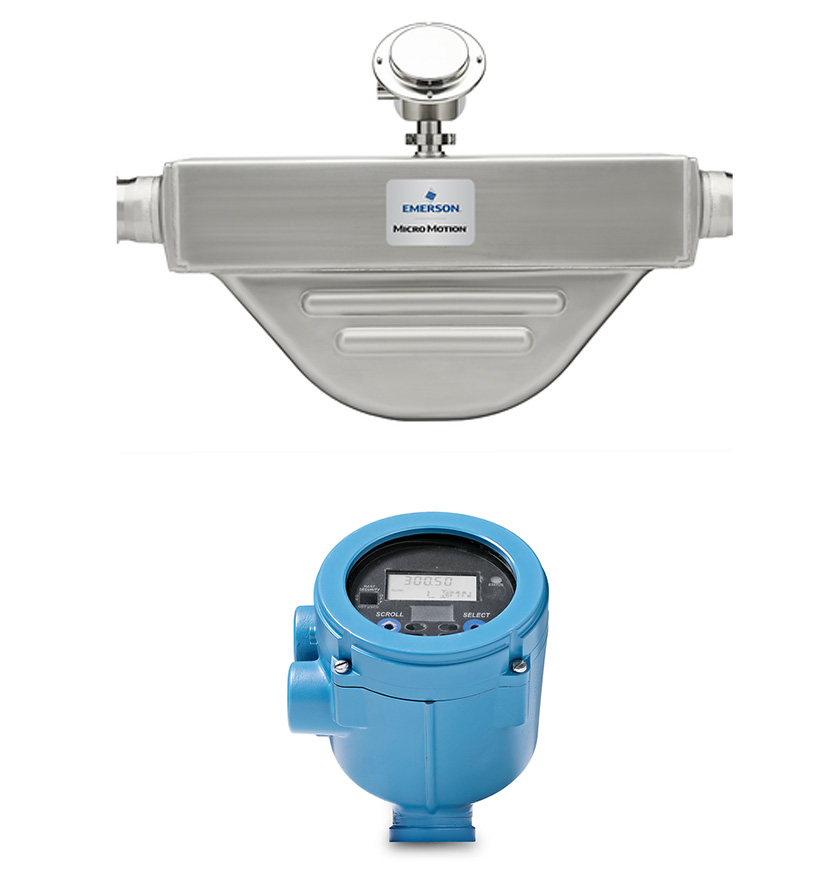

As a supplier of the Micro Motion H400F Hygienic Coriolis Meter and 2400S Compact, Integral-Mount Transmitter, we offer reliable and highly accurate measurement solutions. The H400F meter, made of 316L stainless steel, provides ±0.05% mass flow accuracy for liquids and ±0.0005 g/cm³ density accuracy, making it ideal for hygienic applications. It is certified by CSA, IECEx, and ATEX, ensuring excellent performance in demanding environments. The 2400S transmitter features multiple output options and display capabilities, suitable for continuous process control and two-phase flow applications. We ensure ample stock, fast delivery, and professional technical support to help maintain efficiency and reliability in your operations.
Free Online Product Selection Service
To pick up today
Fast Shipping & Competitive pricing
Our courier will deliver to the specified address
Min. order: 1 piece & 2-Year Warranty
DHL courier will deliver to the specified address
Payment Methods:
| Specification | Details |
|---|---|
| Micro Motion H400F Hygienic Coriolis Meter | 4 Inch (DN100), 316L Stainless Steel, 15 RA Finish |
| Mass Flow Accuracy (Liquid) | Up to ±0.05% of rate |
| Mass Flow Repeatability (Liquid) | Up to ±0.025% of rate |
| Volume Flow Accuracy (Liquid) | Up to ±0.05% of rate |
| Volume Flow Repeatability (Liquid) | Up to ±0.025% of rate |
| Mass Flow Accuracy (Gas) | Up to ±0.35% of rate |
| Mass Flow Repeatability (Gas) | Up to ±0.175% of rate |
| Density Accuracy (Liquid) | Up to ±0.0005 g/cm³ (±0.5 kg/m³) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Sensor Maximum Working Pressure | 1,450 psig (100 barg) |
| Meter Approvals, Calibrations, and Certifications | • CSA • IECEx • ATEX |
| Micro Motion 2400S Compact, Integral-Mount Transmitter | |
| Output Variables | Mass & volume flow Net product content / flow Temperature Density Concentration |
| Local Display | Standard user interface with 2-line LCD panel Two clips for HART/Bell 202 connections Two membrane pushbuttons for local operation Glass or plastic lens options |
| Power | Self-switching AC/DC input, automatically recognizes supply voltage 85–265 VAC, 50/60 Hz, 4 watts typical, 7 watts maximum 18–100 VDC, 4 watts typical, 7 watts maximum |
| Input/Output Signals (Analog Output Option) | Channel A: One active 4–20 mA output (Not intrinsically safe) Channel B: Configurable as one of the following: • One active or passive frequency output • One active or passive discrete output • One active or passive discrete input |
| Input/Output Signals (PROFIBUS-DP Option) | Digital 2-way PROFIBUS-DP signal |
| Input/Output Signals (DeviceNet Option) | Digital 2-way DeviceNet signal (Now Obsolete) |
| HART | Bell 202 signal superimposed on the primary milliamp output |
| Mounting Options | Field mount, integral with sensor |
| Application Types | Continuous process control Two-phase flow/entrained gas Meter verification |
| Hazardous Approvals | C1D2 Zone 2 |
