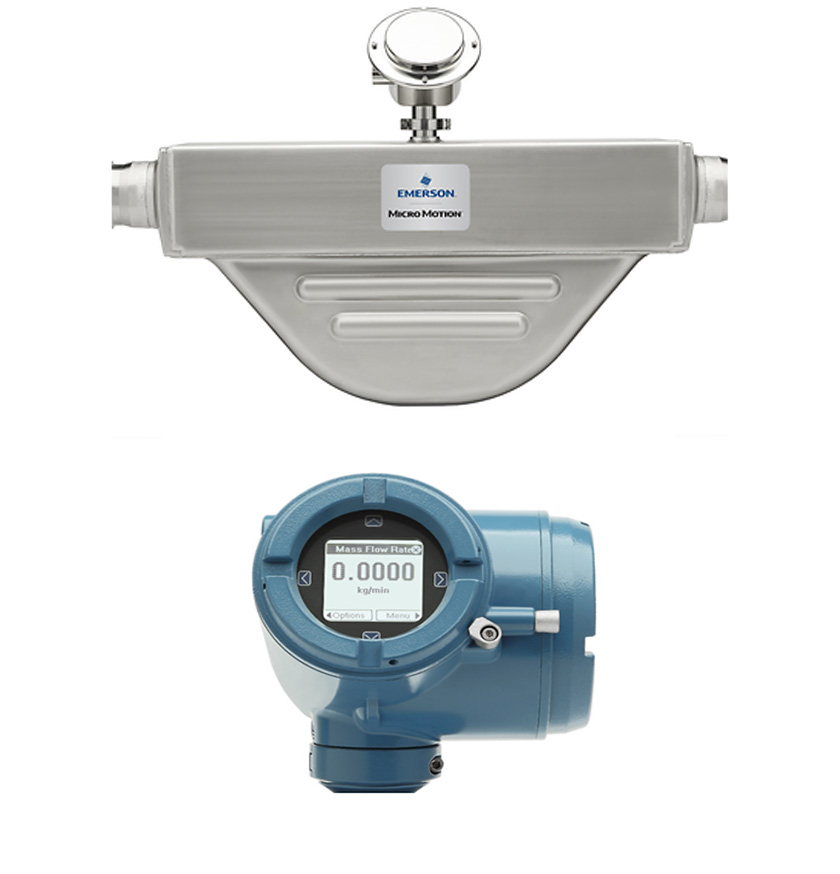

As a high-quality supplier, we offer the Micro Motion H-Series Hygienic Coriolis Meter, which combines the H400F sensor and the 4200 transmitter, widely used in industries such as food and pharmaceuticals. This system is made of 316L stainless steel and features excellent density and mass flow measurement accuracy, ensuring product consistency and quality. The self-draining design of the H400F sensor and the real-time Smart Meter Verification function guarantee measurement integrity and reliability. The 4200 transmitter comes with multiple output options and a graphical display, supports multiple languages, simplifies the user interface, and facilitates quick deployment. By choosing us, you will achieve the perfect combination of high-quality products and exceptional service.
Free Online Product Selection Service
To pick up today
Fast Shipping & Competitive pricing
Our courier will deliver to the specified address
Min. order: 1 piece & 2-Year Warranty
DHL courier will deliver to the specified address
Payment Methods:
| Micro Motion H400F Hygienic Coriolis Meter | 4 Inch (DN100), 316L Stainless Steel, 15 RA Finish |
| Mass Flow Accuracy (Liquid) | Up to ±0.05% of rate |
| Mass Flow Repeatability (Liquid) | Up to ±0.025% of rate |
| Volume Flow Accuracy (Liquid) | Up to ±0.05% of rate |
| Volume Flow Repeatability (Liquid) | Up to ±0.025% of rate |
| Mass Flow Accuracy (Gas) | Up to ±0.35% of rate |
| Mass Flow Repeatability (Gas) | Up to ±0.175% of rate |
| Density Accuracy (Liquid) | Up to ±0.0005 g/cm³ (±0.5 kg/m³) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Maximum Working Pressure | 1,450 psig (100 barg) |
| Meter Approvals, Calibrations, and Certifications | • CSA • IECEx • ATEX |
| Micro Motion 4200 2-Wire Transmitter | |
| Local Display | • Graphical display with optional backlight setting • Four-button capacitive touch controls • Supports multiple languages: English, German, French, Spanish, Portuguese, Russian, Chinese, Japanese |
| Power | 2-wire loop-powered transmitter, minimum 17.75 V lift off voltage |
| Input/Output Signals | Up to 2 output channels: • Channel A: loop-powered 4-20mA/HART • Channel B: externally-powered configurable for 4-20mA, frequency output, or discrete output (Licensable Option) |
| WirelessHART | WirelessHART available with THUM adapter |
| Mounting Options | • Field-mount • Integrally mounted to various Micro Motion sensors • Remotely mounted 9-wire with mounting bracket |
| Application Types | • Smart Meter Verification • Concentration measurement • API Referral |
| Hazardous Approvals | • Class I, Div. 1 • Class I, Div. 2 • Zone 1 • Zone 2 • Intrinsically Safe • Explosion Proof |
