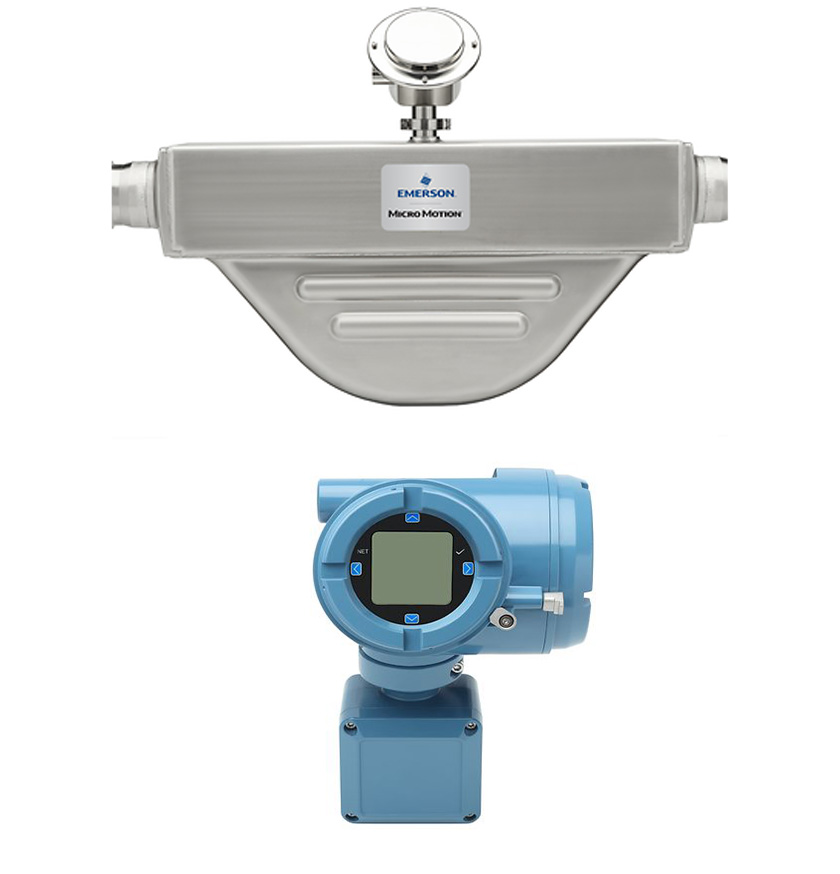

As a leading supplier of flow measurement equipment, our Micro Motion H400F Hygienic Coriolis Meter and 4700 configurable transmitter offer exceptional performance and reliability. The H400F, made of 316L stainless steel with a surface finish of up to 15 Ra, ensures high-quality flow measurement in stringent sanitary environments, featuring Smart Meter Verification to provide real-time assurance of measurement integrity. The compact design of the 4700 transmitter allows for flexible applications, improving process control with direct mass measurement and providing detailed measurement history to help customers optimize operations. Our products are certified for safety and reliability, and by choosing us, you gain access to high-quality solutions and professional technical support.
Free Online Product Selection Service
To pick up today
Fast Shipping & Competitive pricing
Our courier will deliver to the specified address
Min. order: 1 piece & 2-Year Warranty
DHL courier will deliver to the specified address
Payment Methods:
| Specification | Details |
|---|---|
| Micro Motion H400F Hygienic Coriolis Meter | 4 Inch (DN100), 316L Stainless Steel, 15 RA Finish |
| Mass Flow Accuracy (Liquid) | Up to ±0.05% of rate |
| Mass Flow Repeatability (Liquid) | Up to ±0.025% of rate |
| Volume Flow Accuracy (Liquid) | Up to ±0.05% of rate |
| Volume Flow Repeatability (Liquid) | Up to ±0.025% of rate |
| Mass Flow Accuracy (Gas) | Up to ±0.35% of rate |
| Mass Flow Repeatability (Gas) | Up to ±0.175% of rate |
| Density Accuracy (Liquid) | Up to ±0.0005 g/cm³ (±0.5 kg/m³) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Sensor Maximum Working Pressure | 1,450 psig (100 barg) |
| Meter Approvals | CSA, IECEx, ATEX |
| Micro Motion 4700 Transmitter | Configurable Inputs and Outputs |
| Operating Temperature | -61 °F (-52.0 °C) to 149 °F (65.0 °C) |
| Storage Temperature | -61 °F (-52.0 °C) to 185 °F (85.0 °C) |
| Vibration Limits | Meets IEC 60068-2-6, endurance sweep, 5 to 2000 Hz up to 1.0 g |
| Housing | NEMA 4X (IP66/67/69) polyurethane painted cast aluminum or 316 stainless steel |
| Humidity Range | 5 to 95% relative humidity, non-condensing |
| Linearity | .015% Span, Span = 16mA |
| Input Signal | Up to 3 pairs of wiring terminals for transmitter input/output |
| Power Supply | Universal with supply voltage range: 18VDC to 100VDC, 85VAC to 250VAC |
| Weight | Integral mount: 6.48 lb (2.939 kg); Remote mount: 8.21 lb (3.724 kg) |
| Mounting Options | Available for various Micro Motion Coriolis sensors |
| Display/Interface | Standard LCD panel or Bluetooth® wireless technology display option |
