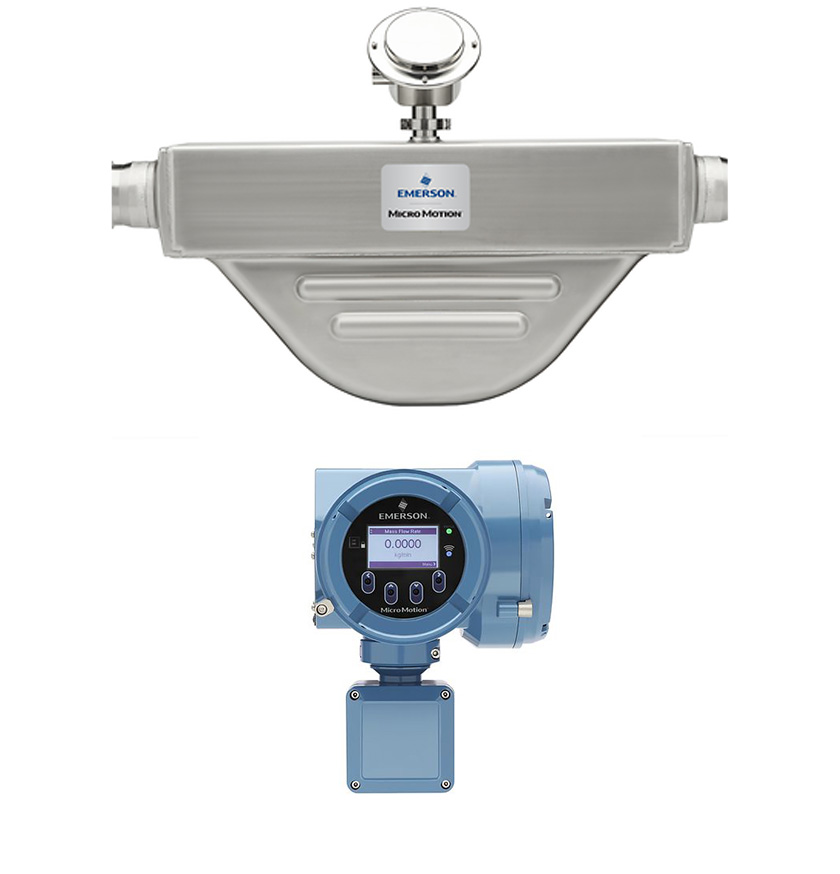

As a leading supplier, our Micro Motion H400F Hygienic Coriolis Meter and 5700 Field-Mount Transmitter are ideal choices for achieving superior process control. The H400F features 316L stainless steel and a surface finish of up to 15 Ra, ensuring reliability and sensitivity in high-safety and sanitary environments. Its Smart Meter Verification functionality allows for real-time flow monitoring to guarantee product quality. Meanwhile, the 5700 leverages advanced Ethernet architecture and offers up to five configurable I/O channels for quick and flexible installation, simplifying calibration and process monitoring while enhancing operational efficiency. We are committed to providing efficient and reliable solutions to help you meet the ever-changing market demands.
Free Online Product Selection Service
To pick up today
Fast Shipping & Competitive pricing
Our courier will deliver to the specified address
Min. order: 1 piece & 2-Year Warranty
DHL courier will deliver to the specified address
Payment Methods:
| Specification | Details |
|---|---|
| Micro Motion H400F Hygienic Coriolis Meter | 4 Inch (DN100), 316L Stainless Steel, 15 RA Finish |
| Mass Flow Accuracy (Liquid) | Up to ±0.05% of rate |
| Mass Flow Repeatability (Liquid) | Up to ±0.025% of rate |
| Volume Flow Accuracy (Liquid) | Up to ±0.05% of rate |
| Volume Flow Repeatability (Liquid) | Up to ±0.025% of rate |
| Mass Flow Accuracy (Gas) | Up to ±0.35% of rate |
| Mass Flow Repeatability (Gas) | Up to ±0.175% of rate |
| Density Accuracy (Liquid) | Up to ±0.0005 g/cm³ (±0.5 kg/m³) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Sensor Maximum Working Pressure | 1,450 psig (100 barg) |
| Meter Approvals | CSA, IECEx, ATEX |
| Specification | Details |
|---|---|
| Micro Motion 5700 Field-Mount Transmitter | |
| Local Display | Graphical backlit display, four-button optical controls, flowmeter-status LED |
| Power | Self-switching AC/DC input, 85 to 240 VAC or 18 to 100 VDC |
| Universal Service Port | Design allows for connection and data transfer using standard equipment |
| Configurable I/O Version | Up to 5 licensable channels with various configurations |
| Communication Protocol | WirelessHART available with 775 Smart Wireless THUM adapter |
| Wi-Fi Display Option | Enables point-to-point wireless communication for meter configuration |
| SIL Certified Device | Uses internal readback loop to verify the milliamp output |
| Mounting Options | Field-mount aluminum and stainless steel housing options |
| Application Types | Smart Meter Verification, discrete batch control, petroleum measurement |
| Hazardous Approvals | Class I, Div. 1, Class I, Div. 2, Zone 1, Zone 2, SIL/SIS Certification |
