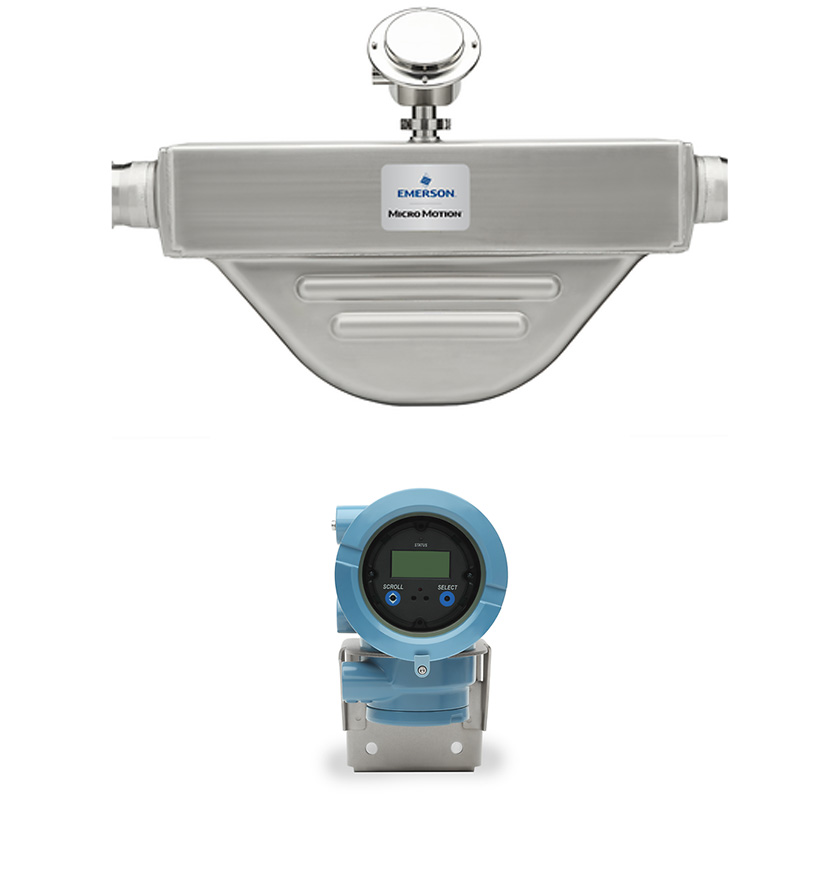

As a supplier of high-quality measurement equipment, the Micro Motion H-Series Hygienic Coriolis Meter combines the H400S sensor and the 1700 transmitter, specifically designed for strict hygienic environments, providing high-precision flow and density measurements. The H400S features a 316L stainless steel construction with a self-draining design, ensuring quick changeovers and consistency. The 1700 transmitter offers intelligent meter verification, continuously monitoring key parameters. This system is certified by multiple standards, enhancing production efficiency and product quality. Choose us for exceptional technical support and service.
Free Online Product Selection Service
To pick up today
Fast Shipping & Competitive pricing
Our courier will deliver to the specified address
Min. order: 1 piece & 2-Year Warranty
DHL courier will deliver to the specified address
Payment Methods:
| Specification | Details |
|---|---|
| Micro Motion H400S Hygienic Coriolis Meter | 4 Inch (DN100), 316L Stainless Steel, 32 RA Finish |
| Mass Flow Accuracy (Liquid) | Up to ±0.05% of rate |
| Mass Flow Repeatability (Liquid) | Up to ±0.025% of rate |
| Volume Flow Accuracy (Liquid) | Up to ±0.05% of rate |
| Volume Flow Repeatability (Liquid) | Up to ±0.025% of rate |
| Mass Flow Accuracy (Gas) | Up to ±0.35% of rate |
| Mass Flow Repeatability (Gas) | Up to ±0.175% of rate |
| Density Accuracy (Liquid) | Up to ±0.0005 g/cm³ (±0.5 kg/m³) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Sensor Maximum Working Pressure | 1,450 psig (100 barg) |
| Micro Motion 1700 Single Variable Field Mount Flow Transmitter | |
| Output Variables | Mass flow, Volume flow |
| Local Display | Standard user interface with 2-line LCD panel |
| Optical Switches | Two optical switches for local operation |
| Power | Self-switching AC/DC input, 85 to 265 VAC, 50/60 Hz, 6 watts typical |
| Input/Output Signals | One active 4–20 mA output, One active frequency output |
| Mounting Options | Field-mount, integrally mounted to Micro Motion sensors |
| Application Types | Continuous process control, Two-phase flow/entrained gas |
| Hazardous Approvals | Class I, Div. 1; Class I, Div. 2; Zone 1; Zone 2 |
