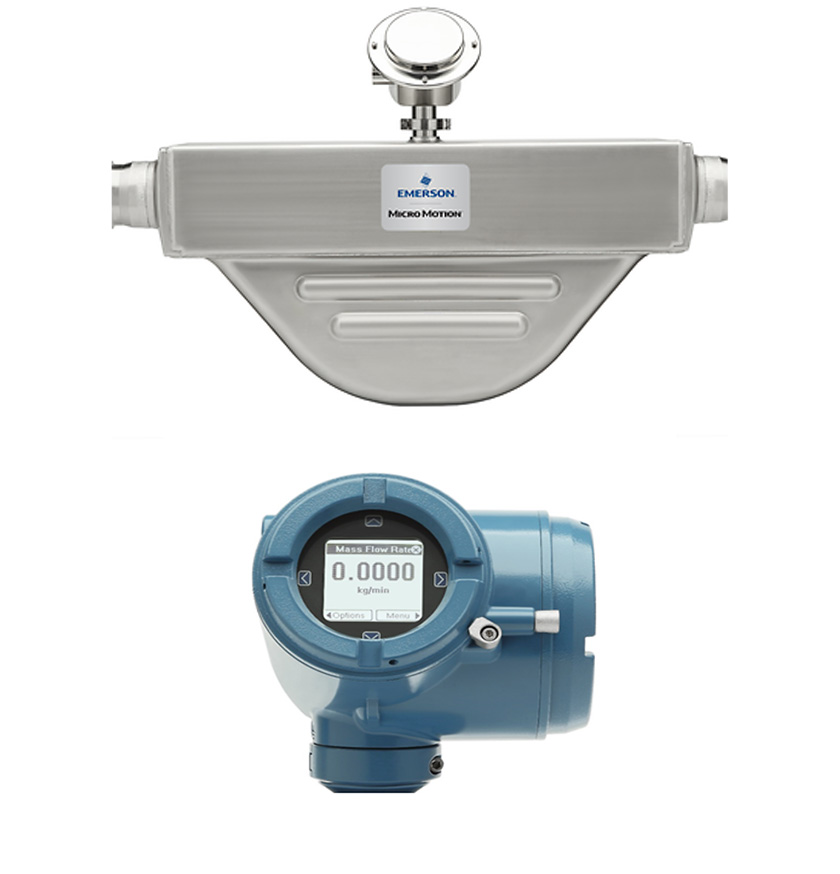

As a supplier of high-quality flow measurement equipment, the Micro Motion H-Series Hygienic Coriolis Meter, consisting of the H400S sensor and the 4200 transmitter, is designed to deliver exceptional accuracy and reliability. The H400S sensor, made of 316L stainless steel, offers superior density measurement capabilities, ensuring product consistency and quality. Meanwhile, the 4200 transmitter supports various output configurations and features real-time data logging and Smart Meter Verification, effectively enhancing process control efficiency. We provide comprehensive after-sales support and fast delivery to help our customers achieve efficient production in sanitary environments.
Free Online Product Selection Service
To pick up today
Fast Shipping & Competitive pricing
Our courier will deliver to the specified address
Min. order: 1 piece & 2-Year Warranty
DHL courier will deliver to the specified address
Payment Methods:
| Specification | Details |
|---|---|
| Micro Motion H400S Hygienic Coriolis Meter | 4 Inch (DN100), 316L Stainless Steel, 32 RA Finish |
| Mass Flow Accuracy (Liquid) | Up to ±0.05% of rate |
| Mass Flow Repeatability (Liquid) | Up to ±0.025% of rate |
| Volume Flow Accuracy (Liquid) | Up to ±0.05% of rate |
| Volume Flow Repeatability (Liquid) | Up to ±0.025% of rate |
| Mass Flow Accuracy (Gas) | Up to ±0.35% of rate |
| Mass Flow Repeatability (Gas) | Up to ±0.175% of rate |
| Density Accuracy (Liquid) | Up to ±0.0005 g/cm³ (±0.5 kg/m³) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Maximum Working Pressure | 1,450 psig (100 barg) |
| Micro Motion 4200 2-Wire Transmitter | |
| Local Display | • Graphical display with optional backlight setting • Four-button capacitive touch controls • Supports multiple languages: English, German, French, Spanish, Portuguese, Russian, Chinese, Japanese |
| Power | • 2-wire loop-powered transmitter • Minimum 17.75 V lift off voltage |
| Input/Output Signals | • Up to 2 output channels • Channel A: loop-powered 4-20mA/HART • Channel B: externally-powered configurable for 4-20mA, frequency output or discrete output (Licensable Option) |
| WirelessHART | WirelessHART available with THUM adapter |
| Mounting Options | • Field-mount • Integrally mounted to various Micro Motion sensors • Remotely mounted 9-wire with mounting bracket |
| Application Types | • Smart Meter Verification • Concentration measurement • API Referral |
| Hazardous Approvals | • Class I, Div. 1 • Class I, Div. 2 • Zone 1 • Zone 2 • Intrinsically Safe • Explosion Proof |
