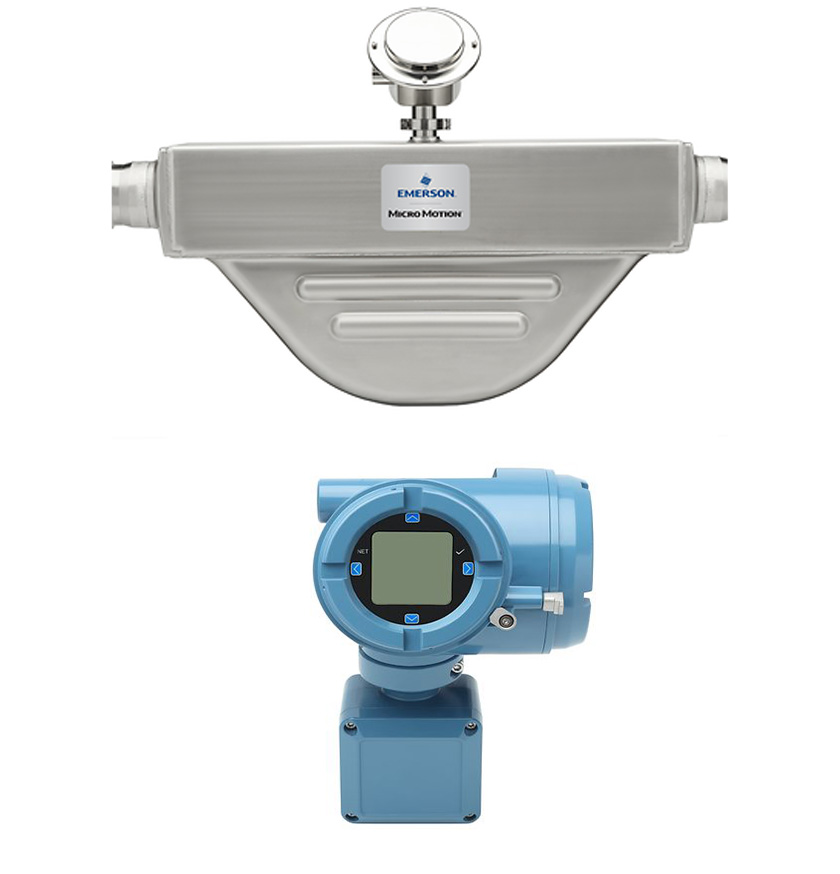

As a supplier of high-quality flow meters, we offer the Micro Motion™ H-Series Hygienic Coriolis Meter, which combines the H400S sensor and the 4700 transmitter, specifically designed for the food, beverage, and pharmaceutical industries. This flow meter ensures efficient and accurate flow and density measurements, utilizing 316L stainless steel and a self-draining design to enhance product consistency. The flexible input and output options of the 4700 transmitter, along with its Smart Meter Verification feature, ensure the reliability of the equipment. By choosing us, you will benefit from exceptional performance and quality service, boosting production efficiency and business success.
Free Online Product Selection Service
To pick up today
Fast Shipping & Competitive pricing
Our courier will deliver to the specified address
Min. order: 1 piece & 2-Year Warranty
DHL courier will deliver to the specified address
Payment Methods:
| Specification | Details |
|---|---|
| Micro Motion H400S Hygienic Coriolis Meter | 4 Inch (DN100), 316L Stainless Steel, 32 RA Finish |
| Mass Flow Accuracy (Liquid) | Up to ±0.05% of rate |
| Mass Flow Repeatability (Liquid) | Up to ±0.025% of rate |
| Volume Flow Accuracy (Liquid) | Up to ±0.05% of rate |
| Volume Flow Repeatability (Liquid) | Up to ±0.025% of rate |
| Mass Flow Accuracy (Gas) | Up to ±0.35% of rate |
| Mass Flow Repeatability (Gas) | Up to ±0.175% of rate |
| Density Accuracy (Liquid) | Up to ±0.0005 g/cm³ (±0.5 kg/m³) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Maximum Working Pressure | 1,450 psig (100 barg) |
| Micro Motion™ 4700 Coriolis Configurable Inputs and Outputs Transmitter | |
| Environmental Specifications | Operating: -61 °F (-52.0 °C) to 149 °F (65.0 °C) Storage: -61 °F (-52.0 °C) to 185 °F (85.0 °C) |
| Vibration Limits | Meets IEC 60068-2-6, endurance sweep, 5 to 2000 Hz up to 1.0 g. |
| Housing | NEMA 4X (IP66/67/69) polyurethane painted cast aluminum or 316 stainless steel |
| Humidity Range | 5 to 95% relative humidity, non-condensing between -40 °F (-40.0 °C) to 149 °F (65.0 °C) |
| Linearity | 0.015% Span, Span = 16mA |
| Input Signal | Up to 3 pairs of wiring terminals for input/output and digital communications. |
| Power Supply | Universal (self-switching) 18VDC to 100VDC, 85VAC to 250VAC |
| Housing | NEMA 4X (IP66/67) polyurethane-painted cast aluminum |
| Weight | Integral mount version: 6.48 lb (2.939 kg) Remote mount version: 8.21 lb (3.724 kg) |
| Cable Glands | Two 1/2 in –NPT or M20 x1.5 female conduit port |
| Mounting | Available integrally or remotely mounted to various Coriolis sensors |
| Display/Interface | Standard user interface with LCD panel, Bluetooth® display option available |
