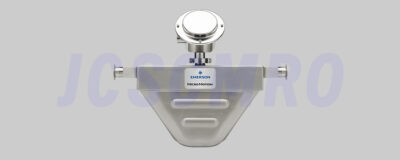

As a supplier, we offer the Micro Motion H100S Hygienic Coriolis Meter, made with 316L stainless steel and a 32 Ra surface finish, compliant with 3A/EHEDG standards. It provides ±0.10% liquid mass flow accuracy and ±0.002 g/cm³ density accuracy. The self-draining design is suitable for SIP, CIP, and other sanitary applications, ensuring fast product changeover and reliable performance. We provide ample stock, fast delivery, and comprehensive technical support to help improve your operational efficiency.
Free Online Product Selection Service
To pick up today
Fast Shipping & Competitive pricing
Our courier will deliver to the specified address
Min. order: 1 piece & 2-Year Warranty
DHL courier will deliver to the specified address
Payment Methods:
| Mass Flow Accuracy (Liquid) | ±0.15% of rate (standard) ±0.10% of rate (optional) |
| Mass Flow Repeatability (Liquid) | ±0.05% of rate |
| Volume Flow Accuracy (Liquid) | ±0.25% of rate (standard) ±0.15% of rate (optional) |
| Volume Flow Repeatability (Liquid) | ±0.05% of rate |
| Mass Flow Accuracy (Gas) | ±0.50% of rate |
| Mass Flow Repeatability (Gas) | ±0.25% of rate |
| Density Accuracy (Liquid) | ±0.002 g/cm³ (±2.0 kg/m³) (standard) ±0.001 g/cm³ (±1.0 kg/m³) (optional) ±0.0005 g/cm³ (±0.5 kg/m³) (optional) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Sensor Maximum Working Pressure | 1,450 psig (100 barg) |
| Meter Approvals, Calibrations, and Certifications | • CSA • IECEx • ATEX |
