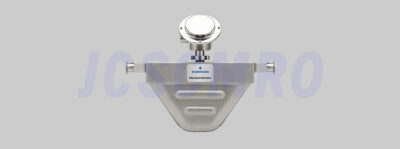

As a supplier, we offer the Micro Motion H100S Hygienic Coriolis Meter, made of 316L stainless steel with a 32 Ra finish (0.8 µm) and approved by 3A/EHEDG. This flow meter is designed for hygienic applications that require highly reliable, repeatable, and robust measurement. It ensures precise and stable performance in high-standard environments. We are committed to providing advanced measurement technology, supported by an excellent supply chain and technical support to ensure your production efficiency and business stability.
Free Online Product Selection Service
To pick up today
Fast Shipping & Competitive pricing
Our courier will deliver to the specified address
Min. order: 1 piece & 2-Year Warranty
DHL courier will deliver to the specified address
Payment Methods:
As a B2B supplier, we provide the Micro Motion H100S Hygienic Coriolis Meter, engineered for high-standard sanitary environments. Featuring 316L stainless steel, a 32 Ra finish, and compliance with 3A/EHEDG standards, it delivers ±0.10% mass flow accuracy and ±0.002 g/cm³ density accuracy. With its self-draining design and robust certifications, it ensures reliable performance in SIP, CIP, and other hygienic applications. We offer fast delivery, competitive pricing, and exceptional technical support to enhance your operational efficiency.
| Specification | Details |
|---|---|
| Mass flow accuracy (Liquid) | ±0.15% of rate (standard), ±0.10% of rate (optional) |
| Mass flow repeatability (Liquid) | ±0.05% of rate |
| Volume flow accuracy (Liquid) | ±0.25% of rate (standard), ±0.15% of rate (optional) |
| Volume flow repeatability (Liquid) | ±0.05% of rate |
| Mass flow accuracy (Gas) | ±0.50% of rate |
| Mass flow repeatability (Gas) | ±0.25% of rate |
| Density accuracy (Liquid) | ±0.002 g/cm³ (±2.0 kg/m³) (standard), ±0.001 g/cm³ (±1.0 kg/m³) (optional), ±0.0005 g/cm³ (±0.5 kg/m³) (optional) |
| Temperature accuracy | ±1 °C ±0.5% of reading |
| Sensor maximum working pressure | 1,450 psig (100 barg) |
| Meter approvals, calibrations, and certifications | • CSA • IECEx • ATEX |
.
