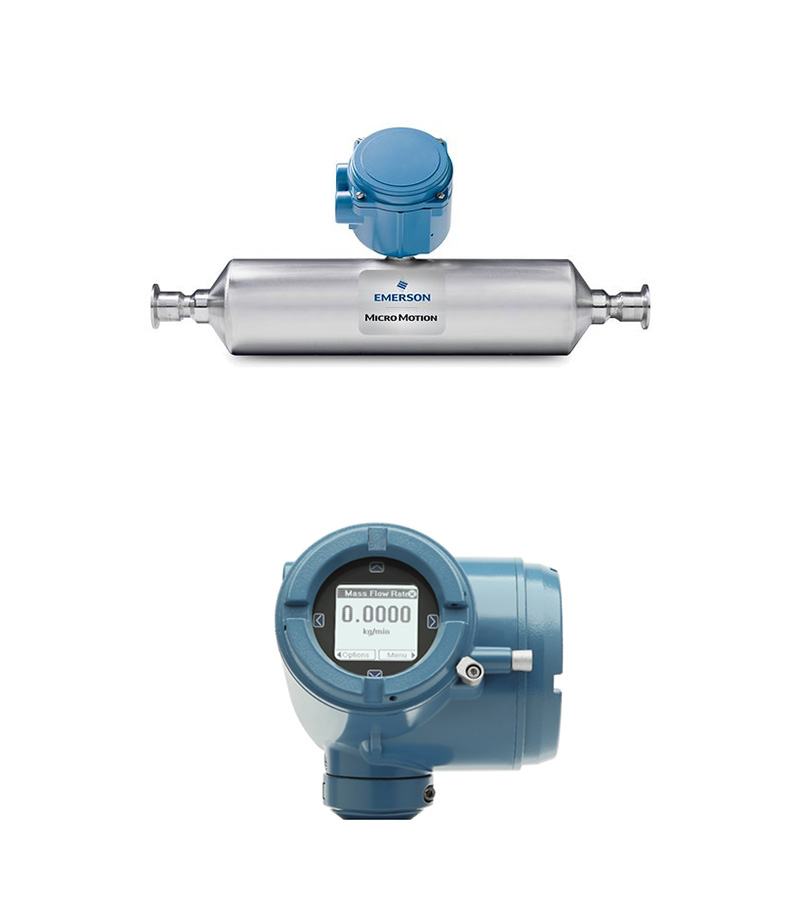

As a supplier, we offer the Micro Motion T050T Straight Tube Coriolis Meter and the 4200 2-Wire Transmitter, ensuring efficient and accurate flow measurement. The T050T is made of titanium and features an exceptional hygienic design, meeting the demands of various fluids and strict sanitary applications. The 4200 transmitter is compatible with a wide range of sensors, providing flow accuracy of up to ±0.10%, and includes an integrated real-time clock and multilingual display to simplify installation and maintenance. Our products are widely certified, ensuring safe and stable operation in diverse environments. By choosing us, you will benefit from excellent service and robust supply chain support.
Free Online Product Selection Service
To pick up today
Fast Shipping & Competitive pricing
Our courier will deliver to the specified address
Min. order: 1 piece & 2-Year Warranty
DHL courier will deliver to the specified address
Payment Methods:
| Specification | Parameter |
|---|---|
| Mass Flow Accuracy (Liquid) | ±0.15% of rate |
| Mass Flow Repeatability (Liquid) | ±0.05% of rate |
| Volume Flow Accuracy (Liquid) | ±0.25% of rate |
| Volume Flow Repeatability (Liquid) | ±0.05% of rate |
| Mass Flow Accuracy (Gas) | ±0.50% of rate |
| Mass Flow Repeatability (Gas) | ±0.05% of rate |
| Density Accuracy (Liquid) | ±0.002 g/cm³ (±2.0 kg/m³) |
| Density Repeatability (Liquid) | ±0.0005 g/cm³ (±0.5 kg/m³) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Maximum Working Pressure of Sensor | 1,450 psig (100 barg) |
| Certifications | UL, CSA, ATEX, ASME, 3-A, USDA, EHEDG |
| Specification | Parameter |
|---|---|
| Local Display | Graphical display with optional backlight, four-button capacitive touch controls |
| Supported Languages | English, German, French, Spanish, Portuguese, Russian, Chinese, Japanese |
| Power | 2-wire loop-powered transmitter, minimum 17.75 V lift off voltage |
| Input/Output Signals | Up to 2 output channels: Channel A (4-20mA/HART), Channel B (configurable) |
| Wireless HART | Available with THUM adapter |
| Mounting Options | Field-mount, integrally mounted, remotely mounted 9-wire |
| Application Types | Smart Meter Verification, Concentration Measurement, API Referral |
| Hazardous Approvals | Class I, Div. 1; Class I, Div. 2; Zone 1; Zone 2; Intrinsically Safe; Explosion Proof |
