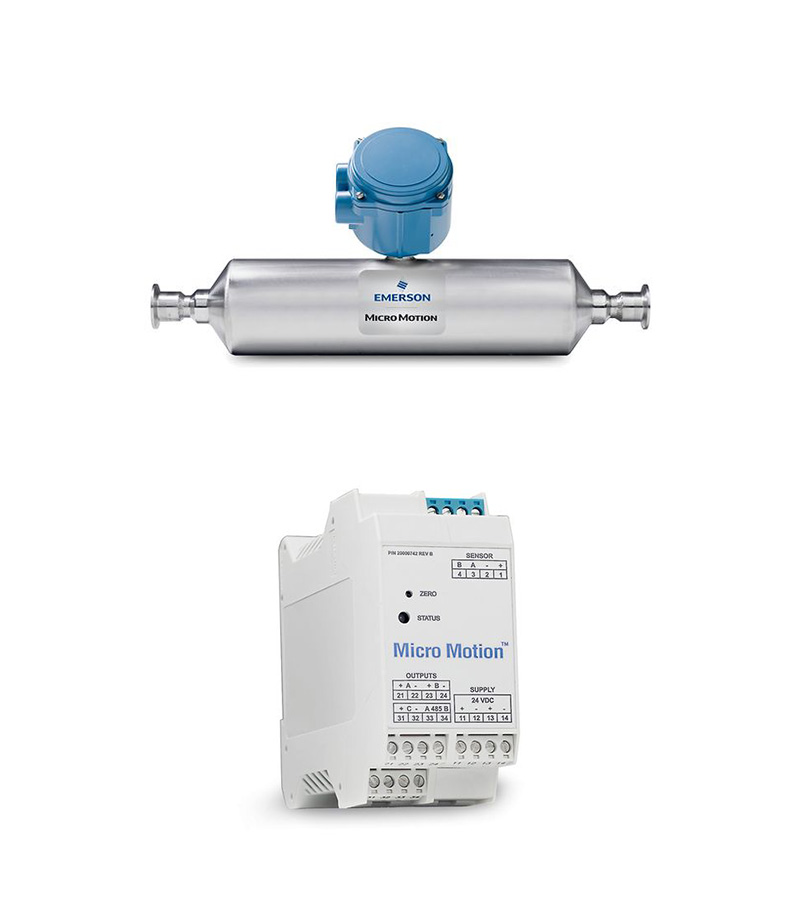

We are proud to offer the Micro Motion T-Series Straight Tube Coriolis Meter, which consists of the T100T sensor and the 1500 transmitter. This high-precision measurement solution is made of corrosion-resistant titanium, capable of real-time measurement of mass flow, density, and concentration, suitable for hygienic applications, and compliant with EHEDG and 3-A certifications. The compact design of the 1500 transmitter requires only 0.03 cubic feet of space, providing flexible installation and configuration options, while the MVD digital processing technology ensures measurement integrity. With quality service and ample inventory, our T-Series Coriolis Meter will help customers enhance efficiency and drive business growth.
Free Online Product Selection Service
To pick up today
Fast Shipping & Competitive pricing
Our courier will deliver to the specified address
Min. order: 1 piece & 2-Year Warranty
DHL courier will deliver to the specified address
Payment Methods:
| Micro Motion T100T Coriolis Meter | 1 Inch (DN25), Titanium Grade 9, 32 Ra Finish |
| Mass Flow Accuracy (Liquid) | ±0.15% of rate |
| Mass Flow Repeatability (Liquid) | ±0.05% of rate |
| Volume Flow Accuracy (Liquid) | ±0.25% of rate |
| Volume Flow Repeatability (Liquid) | ±0.05% of rate |
| Mass Flow Accuracy (Gas) | ±0.50% of rate |
| Mass Flow Repeatability (Gas) | ±0.05% of rate |
| Density Accuracy (Liquid) | ±0.002 g/cm3 (±2.0 kg/m3) |
| Density Repeatability (Liquid) | ±0.0005 g/cm3 (±0.5 kg/m3) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Max Working Pressure | 1,450 psig (100 barg) |
| Certifications | UL, CSA, ATEX, ASME, 3-A, USDA, EHEDG |
| Micro Motion 1500 Compact Control Room Transmitter | Single Variable Flow Transmitter |
| Available Outputs | Model 1500: One flow rate variable; Model 2500: Multiple flow variables |
| Housing | Polyamide PA 6.6 |
| Power | Minimum 19.2 to 28.8 VDC, 6.3 watts |
| Input/Output Signals | One active 4–20 mA output, one active frequency output |
| Mounting Options | Remote-mount control room, mounted on 35 mm rail |
| Application Types | Continuous process control, two-phase flow, filling & dosing, meter verification |
| Hazardous Approvals | Suitable for non-hazardous environments only |
