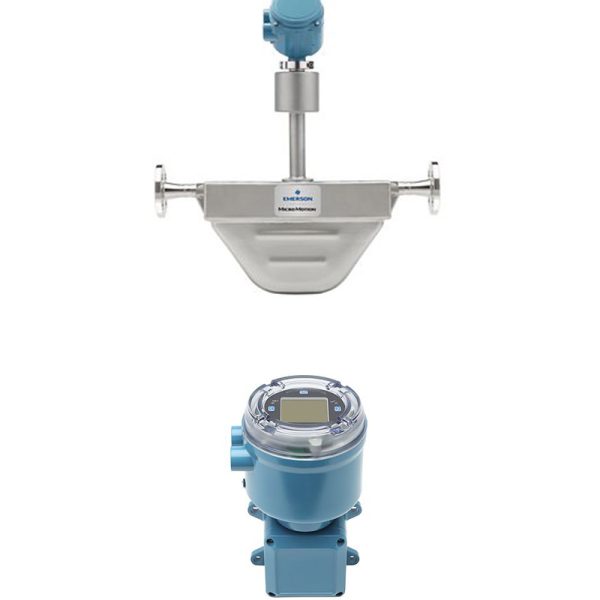

Micro Motion F-Series Coriolis Meter | DN15 | 316L Stainless Steel | F050A Sensor with 1600 Transmitter (High Temperature)
Micro Motion F-Series Coriolis Meter | DN15 | 316L Stainless Steel | F050A Sensor with 1600 Transmitter (High Temperature) $3,167.00
Back to products

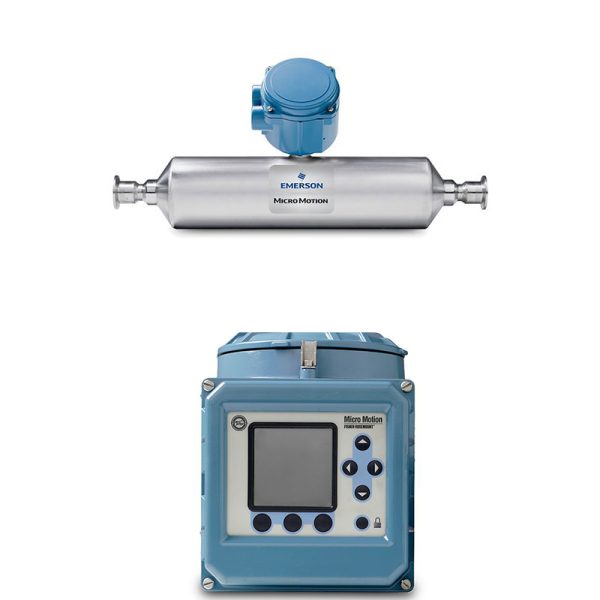

Micro Motion T-Series Straight Tube Coriolis Meter | DN25 | 316L Stainless Steel | T100T Sensor with 3700 Transmitter
Micro Motion T-Series Straight Tube Coriolis Meter | DN25 | 316L Stainless Steel | T100T Sensor with 3700 Transmitter $3,175.00
Click to enlarge

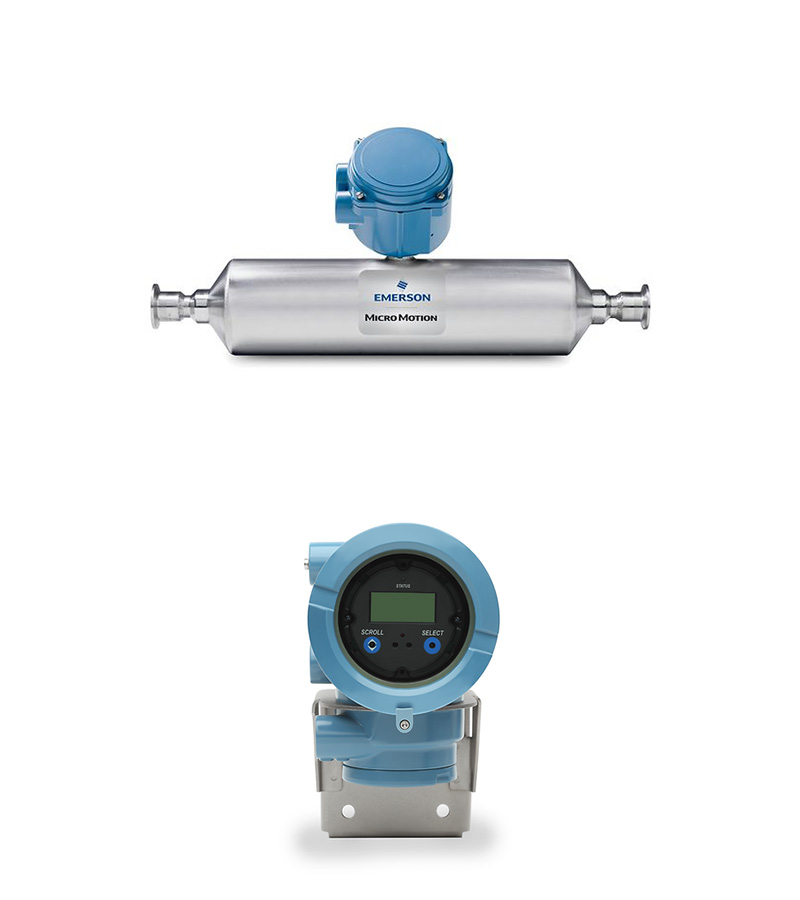

Micro Motion T-Series Straight Tube Coriolis Meter | DN25 | 316L Stainless Steel | T100T Sensor with 2700 Transmitter

As a supplier, we take pride in offering the Micro Motion T-Series Straight Tube Coriolis Meter, which includes the T100T sensor and 2700 transmitter. This series ensures exceptional flow and density measurement accuracy, combined with the durable titanium construction, making it ideal for various industrial environments. We maintain ample inventory for quick delivery and provide comprehensive after-sales support to help our customers enhance production efficiency and business competitiveness. By choosing our T-Series meter, you will benefit from industry-leading technology and service, driving your business success.

  • Free Selection Free Online Product Selection Service

To pick up today

  • Fast Shipping & Competitive pricing

Our courier will deliver to the specified address

  • warranty Min. order: 1 piece & 2-Year Warranty

DHL courier will deliver to the specified address

Payment Methods:

Description

Micro Motion T100T Coriolis Meter 1 Inch (DN25), Titanium Grade 9, 32 Ra Finish
Mass Flow Accuracy (Liquid) ±0.15% of rate
Mass Flow Repeatability (Liquid) ±0.05% of rate
Volume Flow Accuracy (Liquid) ±0.25% of rate
Volume Flow Repeatability (Liquid) ±0.05% of rate
Mass Flow Accuracy (Gas) ±0.50% of rate
Mass Flow Repeatability (Gas) ±0.05% of rate
Density Accuracy (Liquid) ±0.002 g/cm3 (±2.0 kg/m3)
Density Repeatability (Liquid) ±0.0005 g/cm3 (±0.5 kg/m3)
Temperature Accuracy ±1 °C ±0.5% of reading
Max Working Pressure 1,450 psig (100 barg)
Certifications UL, CSA, ATEX, ASME, 3-A, USDA, EHEDG
Micro Motion 2700 Multivariable Transmitter Field and Integral-Mount
Output Variables Mass & volume flow, net product content, temperature, density, concentration
Local Display 2-line LCD panel, glass/plastic lens options
Power 85 to 265 VAC or 18 to 100 VDC, self-switching AC/DC input
Input/Output Signals 4-20 mA and frequency outputs, configurable I/O options
Mounting Options Field-mount, integrally mounted to various Micro Motion sensors
Application Types Continuous process control, custody transfer, meter verification
Hazardous Approvals Class I, Div. 1 & 2; Zone 1 & 2
