| Specification | Details |
|---|---|

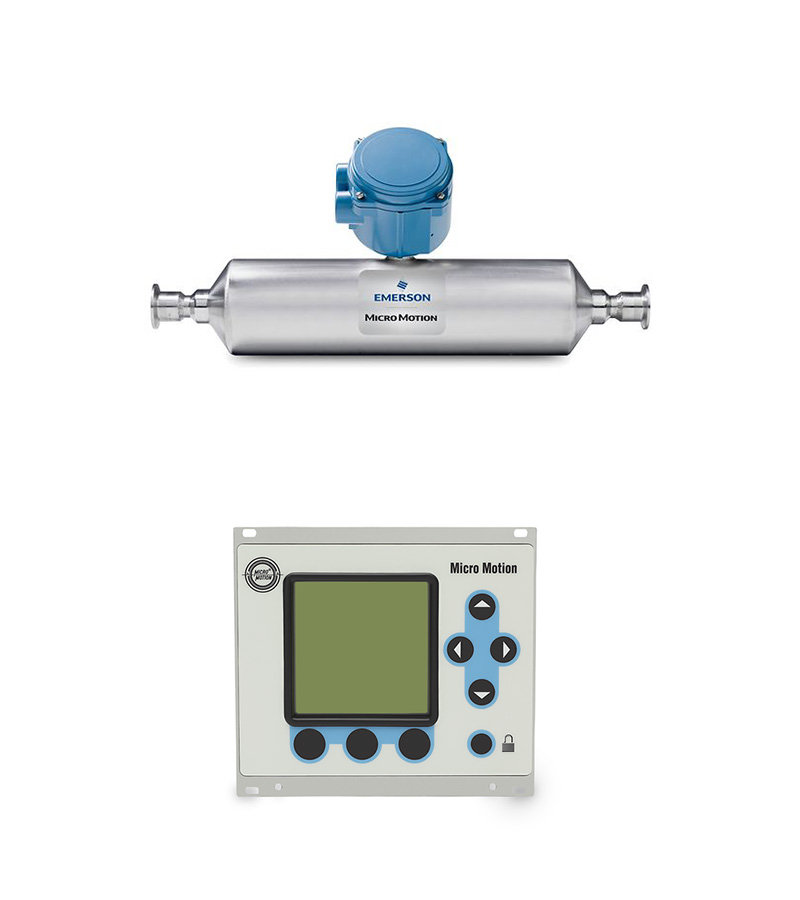

| Micro Motion T100T Coriolis Meter | 1 Inch (DN25), Titanium Grade 9, 32 Ra Finish |
| Mass Flow Accuracy (Liquid) | ±0.15% of rate |
| Mass Flow Repeatability (Liquid) | ±0.05% of rate |
| Volume Flow Accuracy (Liquid) | ±0.25% of rate |
| Volume Flow Repeatability (Liquid) | ±0.05% of rate |
| Mass Flow Accuracy (Gas) | ±0.50% of rate |
| Mass Flow Repeatability (Gas) | ±0.05% of rate |
| Density Accuracy (Liquid) | ±0.002 g/cm³ (±2.0 kg/m³) |
| Density Repeatability (Liquid) | ±0.0005 g/cm³ (±0.5 kg/m³) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Max Working Pressure | 1,450 psig (100 barg) |
| Approvals and Certifications | UL, CSA, ATEX, ASME, 3-A, USDA, EHEDG |
| Micro Motion 3500 Controller | Remote Rack/Panel-Mount |
| Output Variables | Mass & volume flow, Net product content, Temperature, Density, Concentration |
| Local Display | Multi-line LCD panel, Backlit, 128 × 128 pixels |
| Power Options | AC: 85 to 265 VAC, DC: 18 to 30 VDC |
| Input/Output Signals | Two active 4–20 mA, Three discrete outputs, One frequency output |
| Mounting Options | Control-room DIN rail or panel-mount |
| Application Types | Batch controller, Custody transfer, Two-phase flow |
| Hazardous Approvals | Suitable for non-hazardous areas only |
