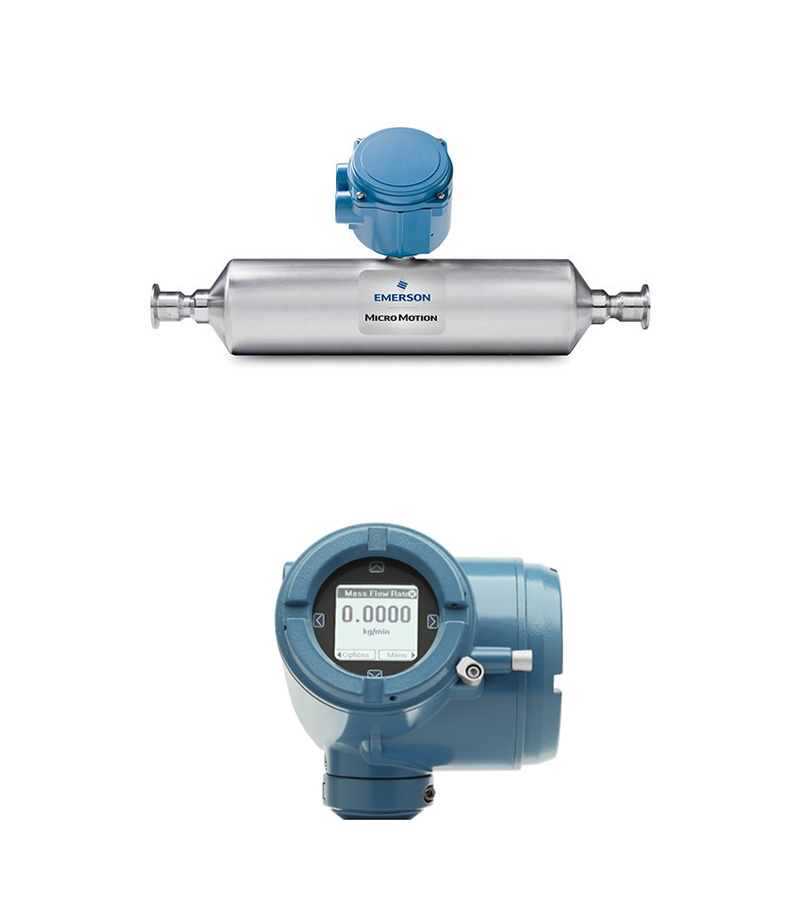

As a supplier, the Micro Motion T-Series Straight Tube Coriolis Meter combines the T100T sensor and the 4200 transmitter to deliver exceptional measurement of mass, density, and volumetric flow. Its titanium construction and 32 Ra surface finish ensure compliance with hygiene standards and fluid compatibility. The 4200 transmitter features high precision and real-time monitoring capabilities, supporting various communication protocols to simplify installation and maintenance, thus enhancing production efficiency. By choosing our T-Series, you gain reliable performance, professional technical support, and a strong supply chain with competitive pricing.
Free Online Product Selection Service
To pick up today
Fast Shipping & Competitive pricing
Our courier will deliver to the specified address
Min. order: 1 piece & 2-Year Warranty
DHL courier will deliver to the specified address
Payment Methods:
| Title | Description |
|---|---|
| Micro Motion T100T Straight Tube Coriolis Meter | 1 Inch (DN25), Titanium Grade 9, 32 Ra Finish |
| Mass flow accuracy (Liquid) | ±0.15% of rate |
| Mass flow repeatability (Liquid) | ±0.05% of rate |
| Volume flow accuracy (Liquid) | ±0.25% of rate |
| Volume flow repeatability (Liquid) | ±0.05% of rate |
| Mass flow accuracy (Gas) | ±0.50% of rate |
| Mass flow repeatability (Gas) | ±0.05% of rate |
| Density accuracy (Liquid) | ±0.002 g/cm³ (±2.0 kg/m³) |
| Density repeatability (Liquid) | ±0.0005 g/cm³ (±0.5 kg/m³) |
| Temperature accuracy | ±1 °C ±0.5% of reading |
| Sensor maximum working pressure | 1,450 psig (100 barg) |
| Meter approvals and certifications | UL, CSA, ATEX, ASME, 3-A, USDA, EHEDG |
| Micro Motion 4200 2-Wire Transmitter | |
| Local display | Graphical display with optional backlight setting |
| Control interface | Four-button capacitive touch controls |
| Power | 2-wire loop-powered transmitter, Minimum 17.75 V lift off voltage |
| Input/output signals | Up to 2 output channels |
| Channel A | Loop-powered 4-20mA/HART |
| Channel B | Externally-powered configurable for 4-20mA, frequency output or discrete output (Licensable Option) |
| WirelessHART | Available with THUM adapter |
| Mounting options | Field-mount, Integrally mounted, Remotely mounted 9-wire with mounting bracket |
| Application types | Smart Meter Verification, Concentration measurement, API Referral |
| Hazardous approvals | Class I, Div. 1; Class I, Div. 2; Zone 1; Zone 2; Intrinsically Safe; Explosion Proof |
