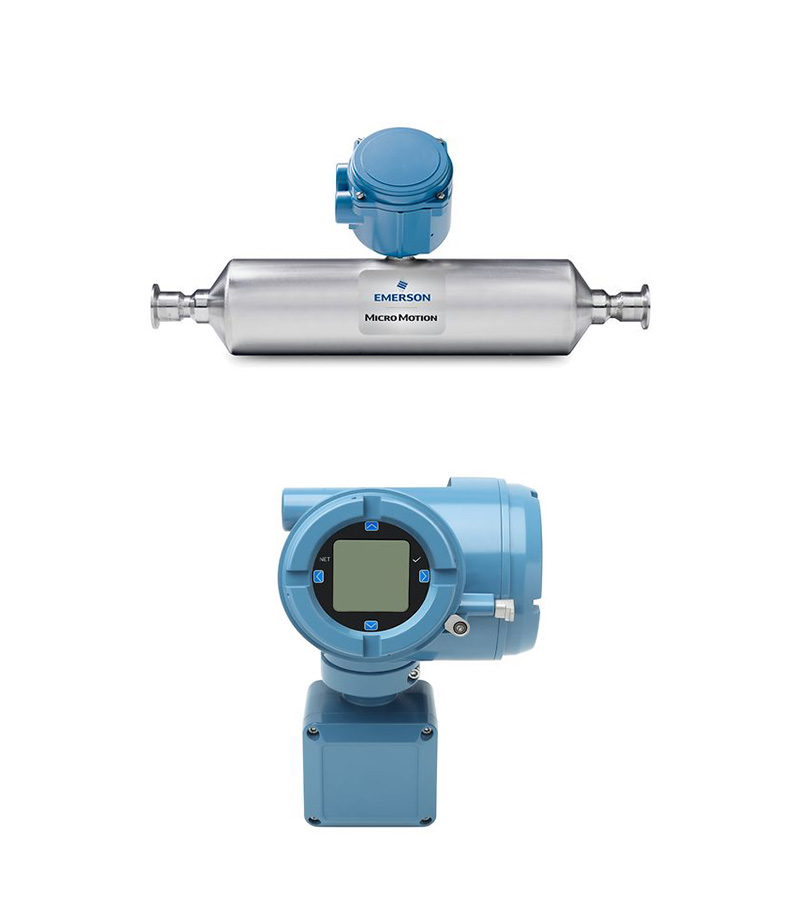

Micro Motion T-Series Straight Tube Coriolis Meter | DN25 | 316L Stainless Steel | T100T Sensor with 4700 Transmitter

As a supplier, we offer the Micro Motion T-Series Straight Tube Coriolis Meter, combining the T100T sensor and 4700 transmitter, which delivers high accuracy and reliability for a variety of fluids. The titanium construction ensures compatibility and simplifies installation and maintenance. The 4700 transmitter provides flexible input and output options, allowing for real-time monitoring of flow and density to help optimize processes. We guarantee excellent service and ample inventory to support your business success.

  • Free Selection Free Online Product Selection Service

To pick up today

  • Fast Shipping & Competitive pricing

Our courier will deliver to the specified address

  • warranty Min. order: 1 piece & 2-Year Warranty

DHL courier will deliver to the specified address

Payment Methods:

Description

Micro Motion T100T Coriolis Meter 1 Inch (DN25), Titanium Grade 9, 32 Ra Finish
Mass Flow Accuracy (Liquid) ±0.15% of rate
Mass Flow Repeatability (Liquid) ±0.05% of rate
Volume Flow Accuracy (Liquid) ±0.25% of rate
Volume Flow Repeatability (Liquid) ±0.05% of rate
Mass Flow Accuracy (Gas) ±0.50% of rate
Mass Flow Repeatability (Gas) ±0.05% of rate
Density Accuracy (Liquid) ±0.002 g/cm3 (±2.0 kg/m3)
Density Repeatability (Liquid) ±0.0005 g/cm3 (±0.5 kg/m3)
Temperature Accuracy ±1 °C ±0.5% of reading
Max Working Pressure 1,450 psig (100 barg)
Certifications UL, CSA, ATEX, ASME, 3-A, USDA, EHEDG
Micro Motion 4700 Transmitter Configurable Inputs and Outputs
Operating Temperature -61 °F (-52.0 °C) to 149 °F (65.0 °C)
Storage Temperature -61 °F (-52.0 °C) to 185 °F (85.0 °C)
Vibration Limits Meets IEC 60068-2-6, endurance sweep, 5 to 2000 Hz up to 1.0 g
Housing NEMA 4X (IP66/67/69) polyurethane painted cast aluminum or 316 stainless steel
Humidity Range 5 to 95% relative humidity, non-condensing
Linearity 0.015% Span, Span = 16 mA
Input Signal Up to 3 pairs of wiring terminals for input/output and digital communications
Power Supply 18VDC to 100VDC, 85VAC to 250VAC
Weight Integral: 6.48 lb (2.939 kg), Remote: 8.21 lb (3.724 kg)
Display/Interface Standard LCD panel, Bluetooth® option available
