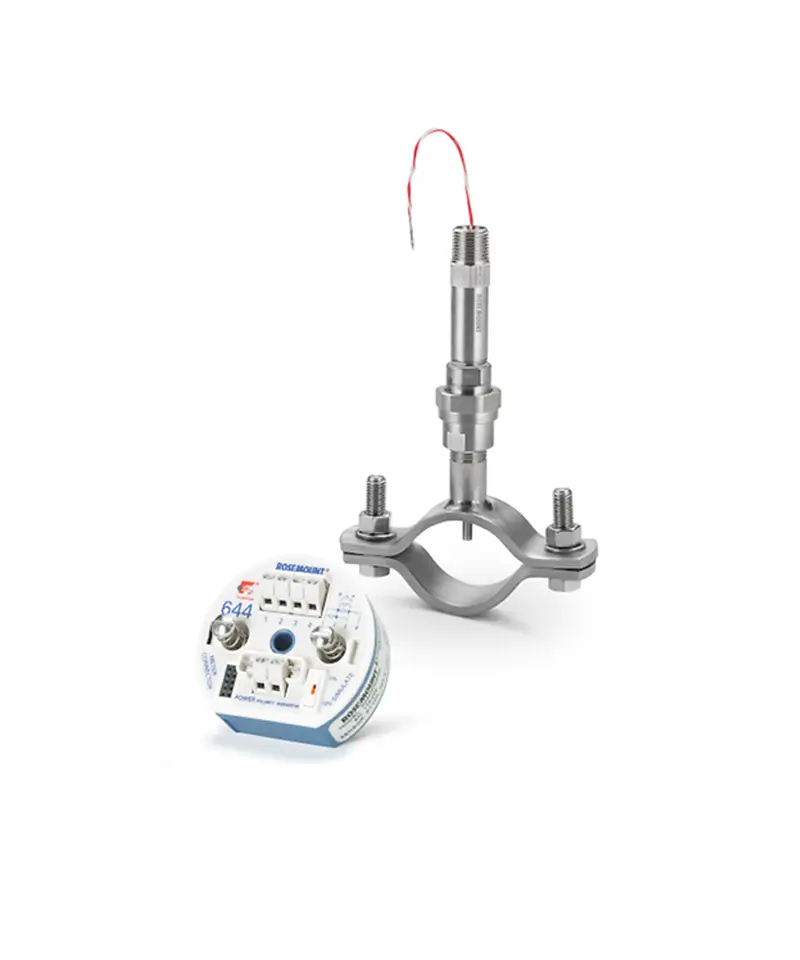

As a trusted supplier, we offer the Rosemount 0085 Pipe Clamp Temperature Sensor and Rosemount 644 Temperature Transmitter, designed for industrial use with high durability and precision. Both products are certified for hazardous environments and ensure reliable performance. With fast shipping, customizable calibration options, and expert technical support, we provide everything you need to meet your temperature measurement requirements.
Free Online Product Selection Service
To pick up today
Fast Shipping & Competitive pricing
Our courier will deliver to the specified address
Min. order: 1 piece & 2-Year Warranty
DHL courier will deliver to the specified address
Payment Methods:
Specification
| Rosemount 0085 Pipe Clamp Temperature Sensor | Rosemount 644 Temperature Transmitter |
|---|---|
| Pipe Clamp Materials: ASTM 304 SST (1.4301), Duplex F51 (1.4462), Carbon steel (1.0037) | Input: Dual and single sensor capability with universal sensor inputs (RTD, T/C, mV, ohms) |
| Lead Wires: PTFE insulated, silver-coated copper wire | Output Signal: 4-20 mA /HART™ protocol, FOUNDATION™ fieldbus protocol, PROFIBUS™ PA protocol |
| Insulation Resistance: 1,000 MΩ minimum insulation resistance when measured at 500 V dc at room temperature | Housing: Field mount, DIN A head mount or rail mount |
| Calibration Options: Class A Sensor from -50 to 300 °C (-58 to 572 °F) | Display/Interface: LCD Display, LCD Display with Local Operator Interface (LOI), or LED |
| Certifications/Approvals: Hazardous location, see full specs for complete list of certifications | Diagnostics: Basic diagnostics, Hot Backup™ capability, sensor drift alert, thermocouple degradation, min/max tracking |
| Calibration Options: Transmitter-sensor matching (Callendar-Van Dusen constants), 5-point calibration | |
| Certifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, hazardous location, marine type, see full specs for complete list of certifications |
