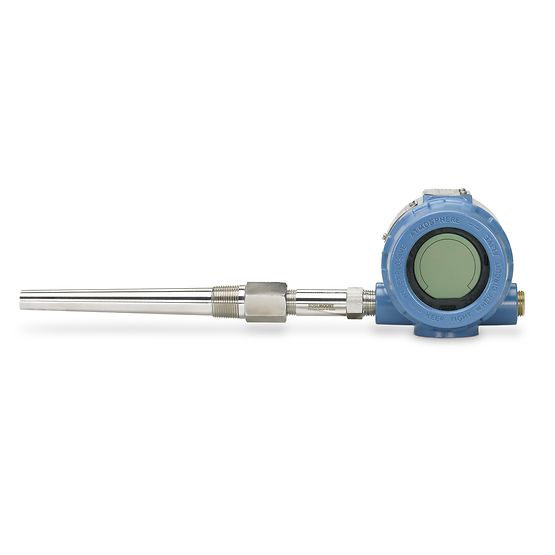

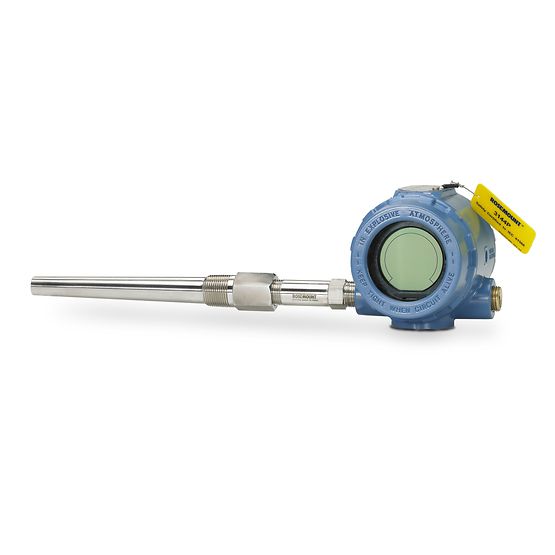

Rosemount 3144P | Rosemount Temperature Transmitter

The Rosemount 3144P Temperature Transmitter provides a high level of stability, reliability, and precision for temperature measurements. Its robust and durable design features a dual-compartment housing that ensures consistent and reliable performance, especially with advanced diagnostics. This transmitter is ideal for applications requiring precise control and mission-critical measurement accuracy.

  • Free Selection Free Online Product Selection Service

To pick up today

  • Fast Shipping & Competitive pricing

Our courier will deliver to the specified address

  • warranty Min. order: 1 piece & 2-Year Warranty

DHL courier will deliver to the specified address

Payment Methods:

Description

Specifications

InputDual and single sensor capability with universal sensor inputs (RTD, T/C, mV, ohms)

Output Signal 4-20 mA /HART™ protocol, FOUNDATION™ Fieldbus protocol
Housing Dual-compartment field mount
Display/Interface Large LCD display with percent range graph and buttons/switches
Diagnostics Basic diagnostics, Hot Backup™ capability, sensor drift alert, thermocouple degradation, min/max tracking
Calibration Options Transmitter-sensor matching (Callendar-Van Dusen constants), custom trim
Certifications/Approvals SIL 2/3 certified to IEC 61508 by an independent 3rd party, hazardous location, marine type, see full specs for complete list of certifications

Features



  • Industry-leading accuracy and reliability for best performance in critical control and safety applications
  • Transmitter-sensor matching improves measurement accuracy up to 75%
  • 5-year long-term stability extends calibration intervals to reduce trips to the field

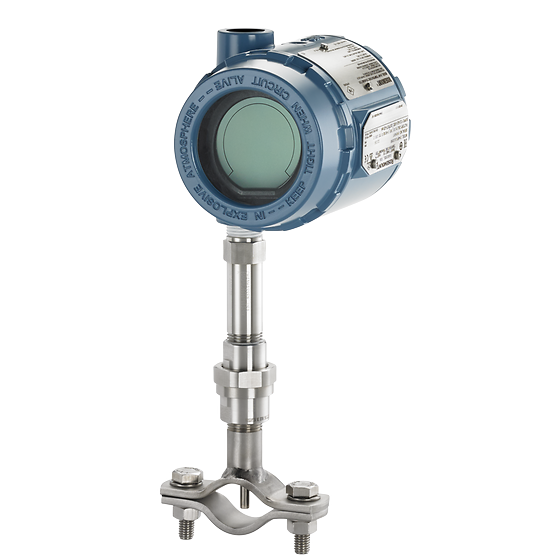

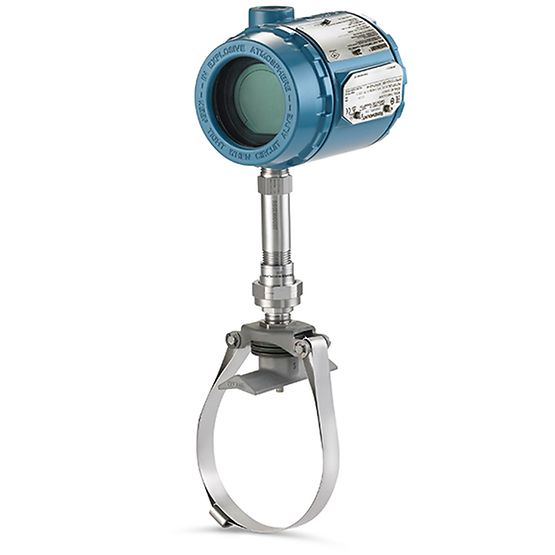

  • Rosemount X-well Technology measures temperature without a process penetration for reduced design, installation and maintenance costs
  • Dual compartment housing provides superior protection in harsh environments
  • Hot Backup™ capability and sensor drift alert utilizing dual sensors ensure measurement integrity
  • Thermocouple degradation diagnostic monitors thermocouple health to detect degradation before failure
  • Minimum and maximum temperature tracking allows monitoring of temperature extremes for easy troubleshooting
  • Transmitter supports multiple protocols for integration in many host environments across many industries
  • Device dashboards provide easy interface for simplified device configuration and diagnostic troubleshooting
