Description

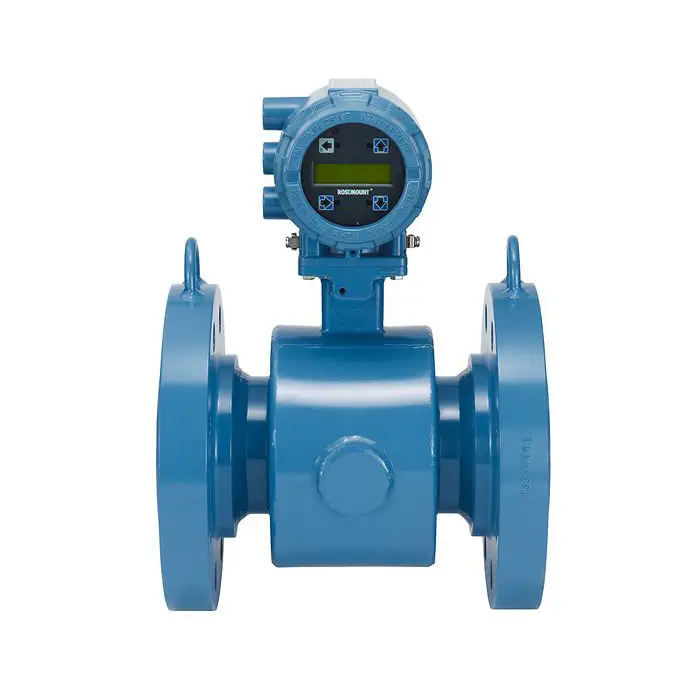

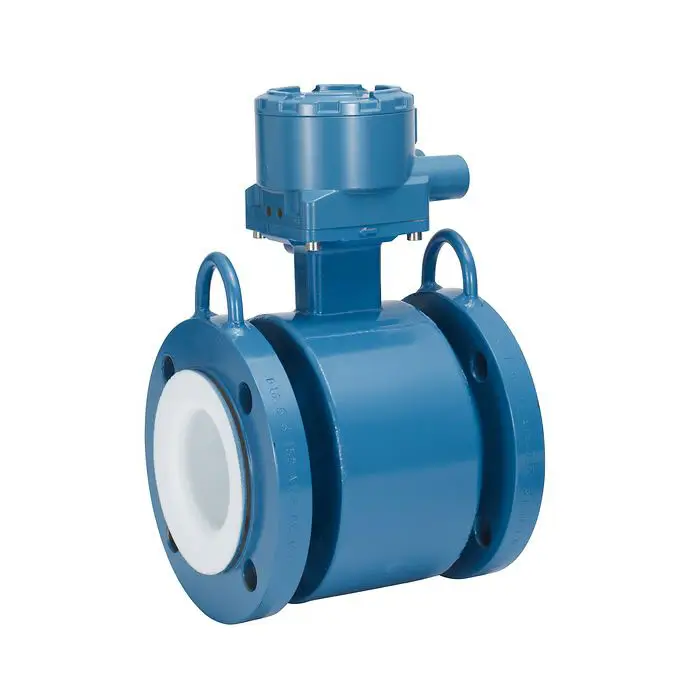

Rosemount 8705 Flanged Magnetic Flow Meter Sensors provide long-lasting, reliable performance in even the most challenging applications. An all-welded construction provides a hermetic seal that protects against moisture and other contaminants. The sealed housing ensures maximum sensor reliability by protecting all internal components and wiring from even the most aggressive environments. A removable and replaceable terminal block enables easy repair in the field without the need to replace the entire meter.

Features

  • For maximum protection, a fully welded sensor housing provides a hermetic seal
  • Avoid process shutdown with a removable and replaceable terminal block that enables repairs in the field
  • Capture any potential process fluid leakage with optional secondary containment compartments to surround electrodes
  • Ensure reliability in the harshest environments with an all-welded sensor housing
  • Guard against installation damage and leading-edge wear with an optional lining protector
  • Minimize maintenance and repair with an obstructionless design featuring no moving parts

Specifications

Accuracy Up to 0.15% of volumetric flow rate accuracy over 13:1 flow turndowns, 0.25% over 40:1 flow turndown
Line Sizes ½-36 inch (15-900 mm)
Liner Materials PTFE, ETFE, PFA, Polyurethane, Neoprene, Linatex Natural Rubber
Electrode Materials 316L Stainless Steel, Nickel Alloy, Platinum, Tantalum, Titanium
Flange Ratings ASME B16.5 Class 150-2500
DIN PN 10-40
AS 2129 Table D and E
AWWA C207 Table 3 Class D (30-36 inch only)
Submergence Protection IP68 (Recommended with sealed cable glands)
Interchangeability Compatible with all 8700 Series transmitters
Compatible with legacy transmitters: 8712D, 8712C, 8732C, 8742C

8705
Choose the Rosemount 8705 Flow Meter for superior performance and reliability across diverse flow measurement needs. Contact our sales team today for detailed information and optimize your flow measurement solutions with us!( [icon name=”mail-bulk” style=”solid” unprefixed_class=””]services@jcscmro.com)[jcscmro_grouped_products_table]
