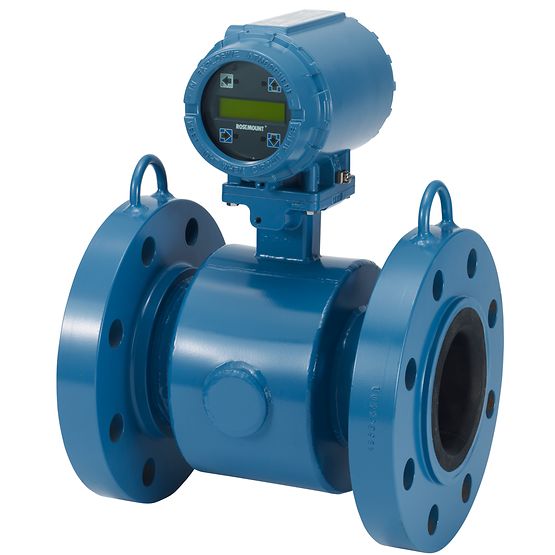

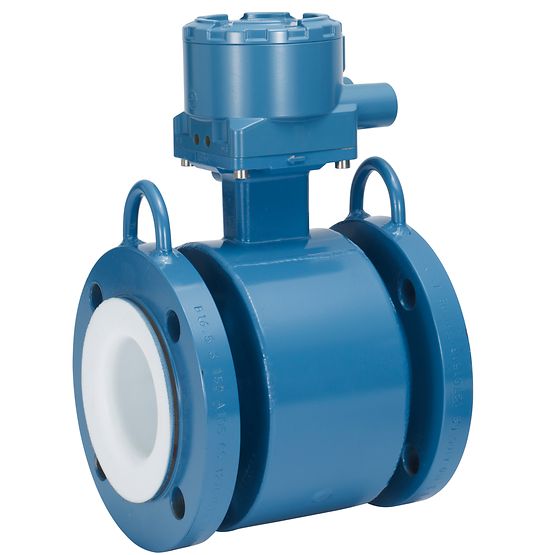

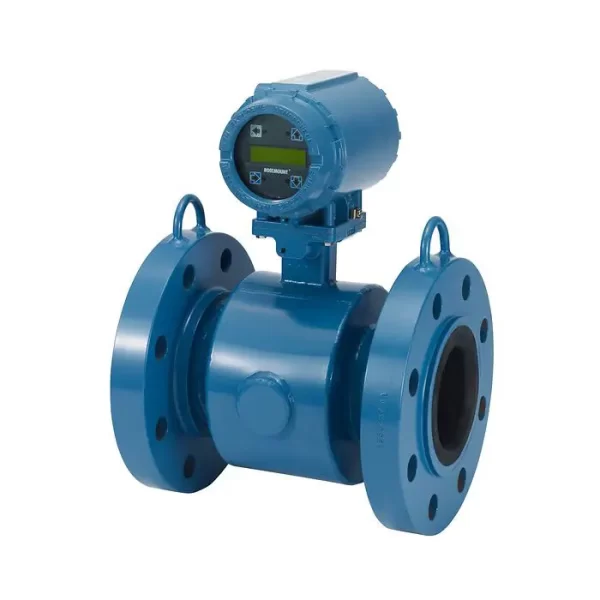

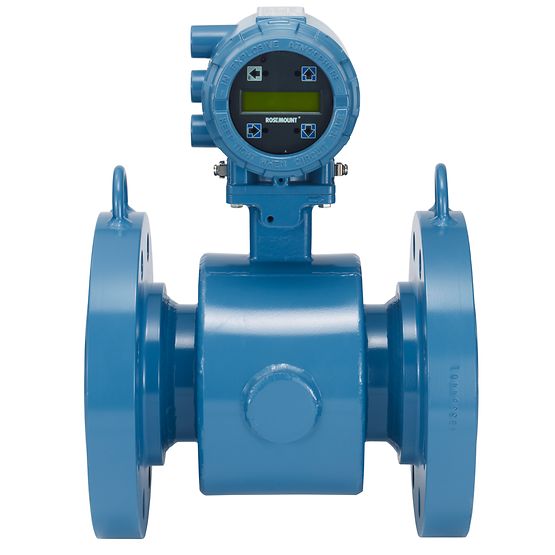

Rosemount 8705 Flow Meter | Flow Meter Sensor 8705
Rosemount 8705 Flow Meter | Flow Meter Sensor 8705 $3,600.00
Back to products
Rosemount 8705030 Flow Meter Sensor | Rosemount 8705
Rosemount 8705030 Flow Meter Sensor | Rosemount 8705 $2,350.00
Click to enlarge

Rosemount 8705005 Flow Meter Sensor | Rosemount 8705

  • Free Selection Free Online Product Selection Service

To pick up today

  • Fast Shipping & Competitive pricing

Our courier will deliver to the specified address

  • warranty Min. order: 1 piece & 2-Year Warranty

DHL courier will deliver to the specified address

Payment Methods:

Description

Specifications

Specifications
Accuracy Up to 0.15% of volumetric flow rate accuracy over 13:1 flow turndowns, 0.25% over 40:1 flow turndown
Line Sizes ½-36 inch (15-900 mm)
Liner Materials PTFE, ETFE, PFA, Polyurethane, Neoprene, Linatex Natural Rubber, Consult factory for additional material options
Electrode Materials ASME B16.5 Class 150-2500 DIN PN 10-40 AS 2129 Table D and E AWWA C207 Table 3 Class D (30-36 inch only)

Features

  • For maximum protection, a fully welded sensor housing provides a hermetic seal
  • Avoid process shutdown with a removable and replaceable terminal block that enables repairs in the field
  • Capture any potential process fluid leakage with optional secondary containment compartments to surround electrodes
  • Ensure reliability in the harshest environments with an all-welded sensor housing
  • Guard against installation damage and leading-edge wear with an optional lining protector
  • Minimize maintenance and repair with an obstructionless design featuring no moving parts
