Rosemount 871130F | Rosemount Magnetic Flow Meter Sensor | Rosemount 8711
Rosemount 871130F | Rosemount Magnetic Flow Meter Sensor | Rosemount 8711 $2,200.00
Click to enlarge

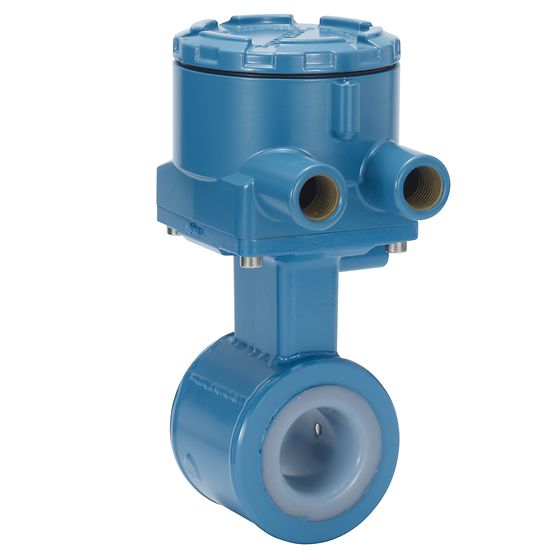

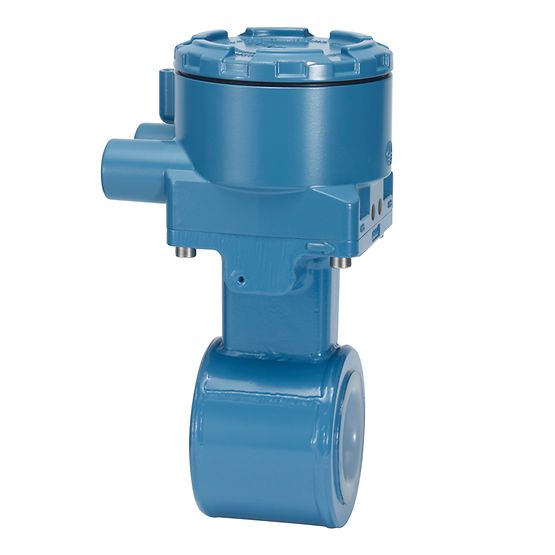

Rosemount 8711 | Rosemount Magnetic Flow Meter Sensors

  • Free Selection Free Online Product Selection Service

To pick up today

  • Fast Shipping & Competitive pricing

Our courier will deliver to the specified address

  • warranty Min. order: 1 piece & 2-Year Warranty

DHL courier will deliver to the specified address

Payment Methods:

Description

  • Cut costs with a flangeless construction for minimum size and weight
  • Compact shape is ideal for installation in locations with limited amount of straight run pipe
  • Suit any process application with available rugged liner options and standard, grounding and bullet-nose electrodes
  • Simplify installation with a lightweight, flangeless design
  • Eliminate gaskets and prevent moisture ingress with an all-welded sensor
  • Minimize maintenance and repair with an obstructionless design featuring no moving parts
  • Avoid process shutdown with a removable and replaceable terminal block that enables repairs in the field
Accuracy Up to 0.15% of volumetric flow rate accuracy over 13:1 flow turndowns, 0.25% over 40:1 flow turndown
Line Sizes 0.15-8 inch (4-200mm)
Liner Materials ETFE, PTFE, and PFA
Electrode Materials 316L Stainless Steel, Nickel Alloy, Platinum, Tantalum, Titanium
Consult factory for additional material options
Flange Ratings ASME B16.5 Class 150-300
DIN PN 10-40
Interchangeability Compatible with all 8700 Series transmitters
Compatible with legacy transmitters: 8712D, 8712C, 8732C, 8742C
