| Specifications | |

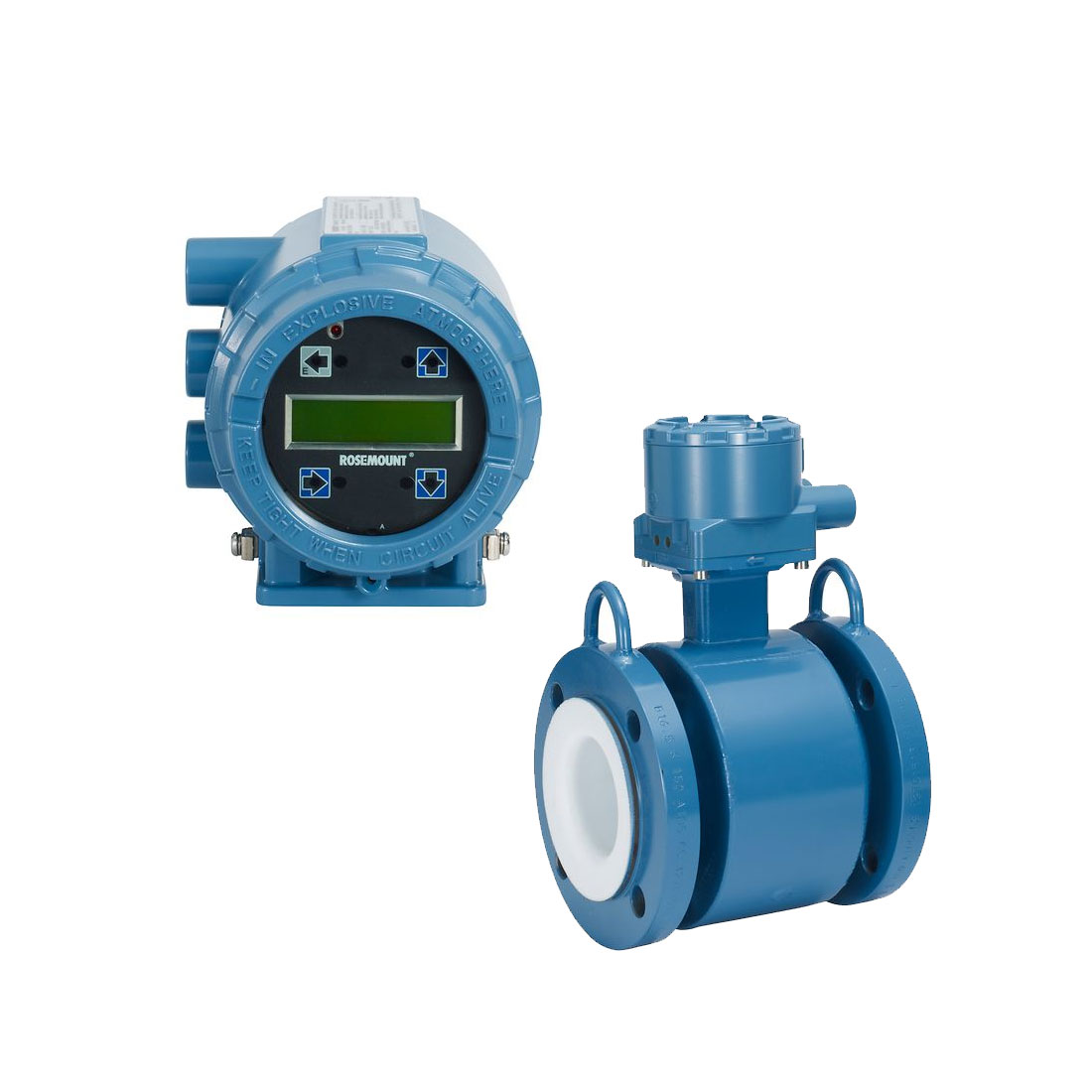

| Rosemount 8705200 Flanged Magnetic Flow Meter Sensor, 20 Inch (DN500) | |
| Accuracy | Up to 0.15% of volumetric flow rate accuracy over 13:1 flow turndowns, 0.25% over 40:1 flow turndown |
| Line Sizes | ½-36 inch (15-900 mm) |
| Liner Materials | PTFE, ETFE, PFA, Polyurethane, Neoprene, Linatex Natural Rubber, Consult factory for additional material options |
| Electrode Materials | ASME B16.5 Class 150-2500 DIN PN 10-40 AS 2129 Table D and E AWWA C207 Table 3 Class D (30-36 inch only) |
| Rosemount 8732E Field Mount Magnetic Flow Meter Transmitters | |
| Sensor compatibility | Compatible with Rosemount 8705, 8711, and 8721 sensors. Compatible with AC and DC powered sensors of other manufacturers. |
| Transmitter coil drive current | 500mA |
| Flow rate range | Capable of processing signals from fluids that are traveling between 0.04 and 39 ft/s (0.01 to 12 m/s) for both forward and reverse flow in all sensor sizes. Full scale continuously adjustable between –39 and 39 ft/s (–12 to 12 m/s). |
| Conductivity limits | Process liquid must have a conductivity of 5 microSiemens/cm (5 micromhos/cm) or greater. |
| Power supply | 90 – 250VAC, 50/60Hz or 12 – 42VDC |
| Line power fuses | 90-250VAC systems
12-42VDC systems
15W maximum – DC 40VA maximum – AC |
| Switch-on current | AC: Maximum 35.7A (< 5ms) at 250VAC
DC: Maximum 42A (< 5ms) at 42VDC |
