| Rosemount 871130F Wafer Magnetic Flow Meter Sensor, 0.3 Inch (DN8) | |
| Accuracy | Up to 0.15% of volumetric flow rate accuracy over 13:1 flow turndowns, 0.25% over 40:1 flow turndown |
| Line Sizes | 0.15-8 inch (4-200mm) |
| Liner Materials | ETFE, PTFE, and PFA |
| Electrode Materials | 316L Stainless Steel, Nickel Alloy, Platinum, Tantalum, Titanium. Consult factory for additional material options |

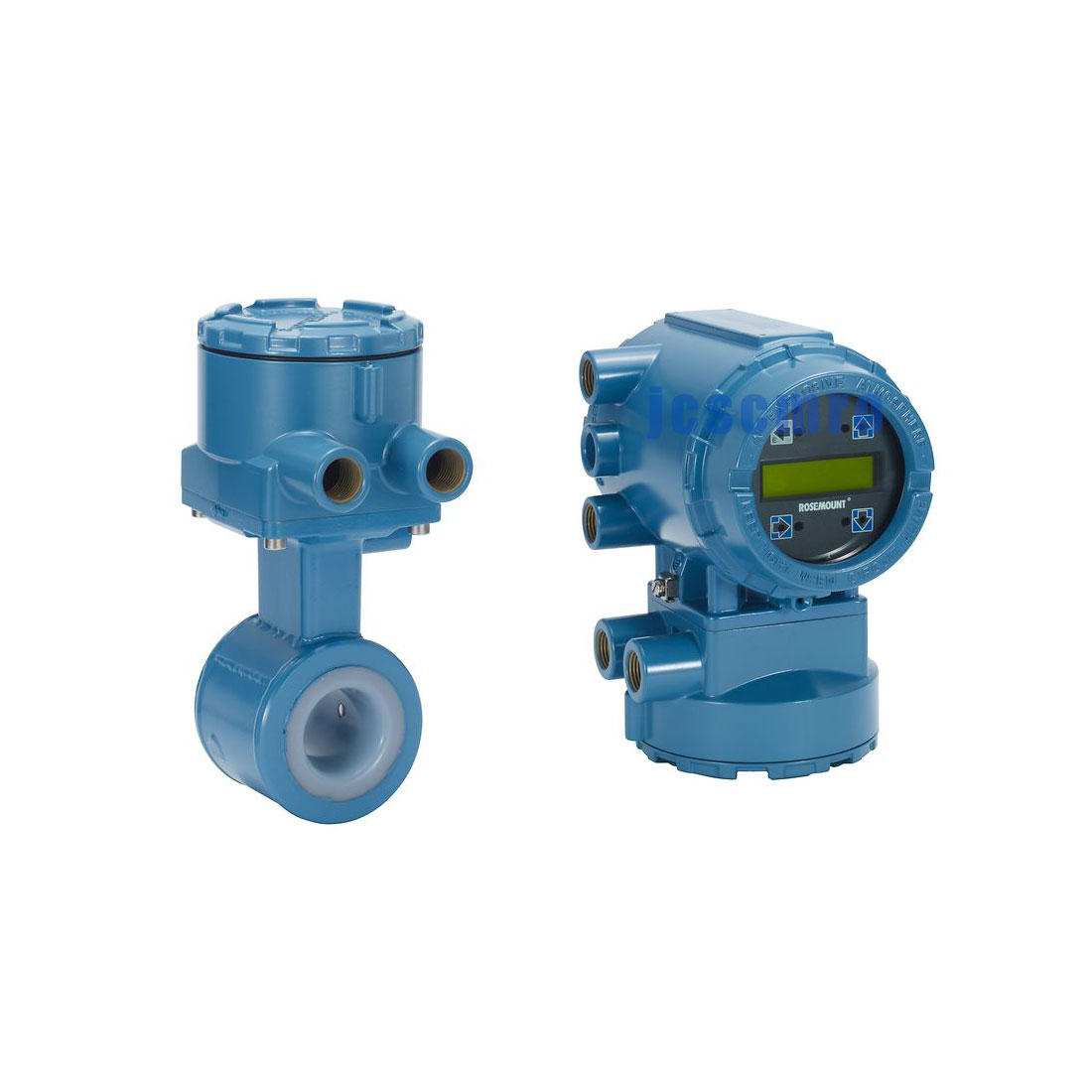

| Rosemount 8732E Field Mount Magnetic Flow Meter Transmitters | |
| Sensor compatibility | Compatible with Rosemount 8705, 8711, and 8721 sensors. Compatible with AC and DC powered sensors of other manufacturers. |
| Transmitter coil drive current | 500mA |
| Flow rate range | Capable of processing signals from fluids that are traveling between 0.04 and 39 ft/s (0.01 to 12 m/s) for both forward and reverse flow in all sensor sizes. Full scale continuously adjustable between –39 and 39 ft/s (–12 to 12 m/s). |
| Conductivity limits | Process liquid must have a conductivity of 5 microSiemens/cm (5 micromhos/cm) or greater. |
| Power supply |
|
