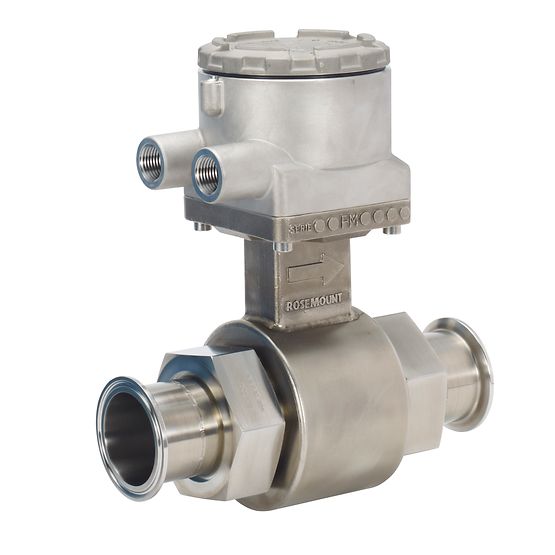

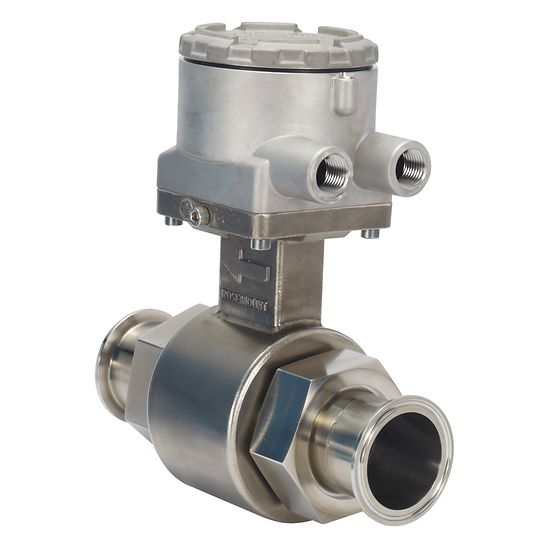

| Rosemount 8721015 Hygienic Magnetic Flow Meter Sensor, 1.5 Inch (DN40) | |
| Accuracy | Up to 0.25% of volumetric flow rate accuracy over 13:1 flow turndowns, 0.5% over 40:1 flow turndown |
| Line Sizes | ½-4 inch (15-100 mm) |
| Liner Materials | PFA |
| Electrode Materials | 316L Stainless Steel, Nickel Alloy, Platinum |
| Process Connections | Tri-Clamp® Sanitary Coupling IDF Sanitary Coupling (screw type) Weld Nipple DIN 11851 (Imperial and Metric) DIN 11864 (-1 and -2 Form A) SMS 1145 DEN US 50 Weld Nipple |
| Product Certifications | 3-A, EHEDG Type EL, PMO (M-b-350) |

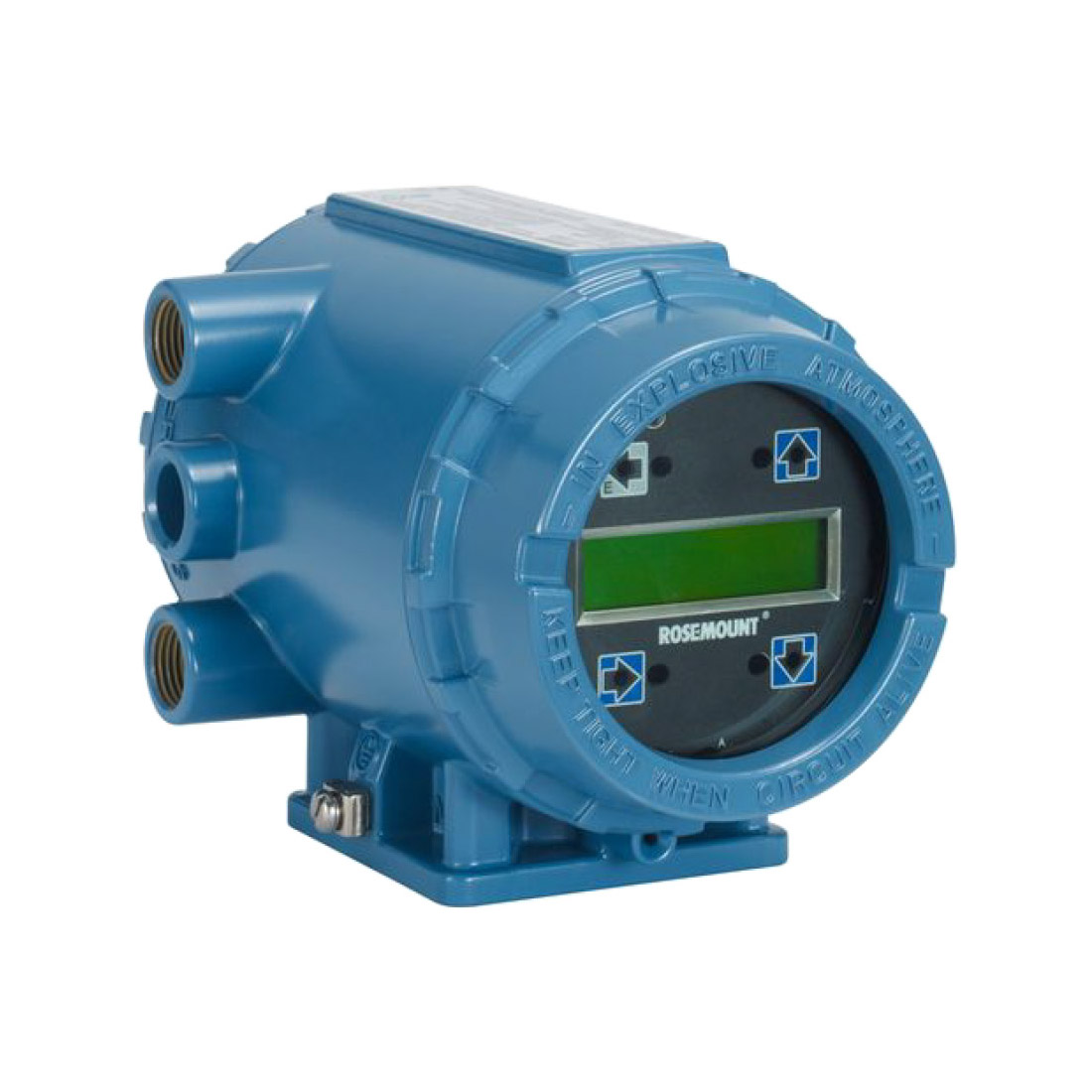

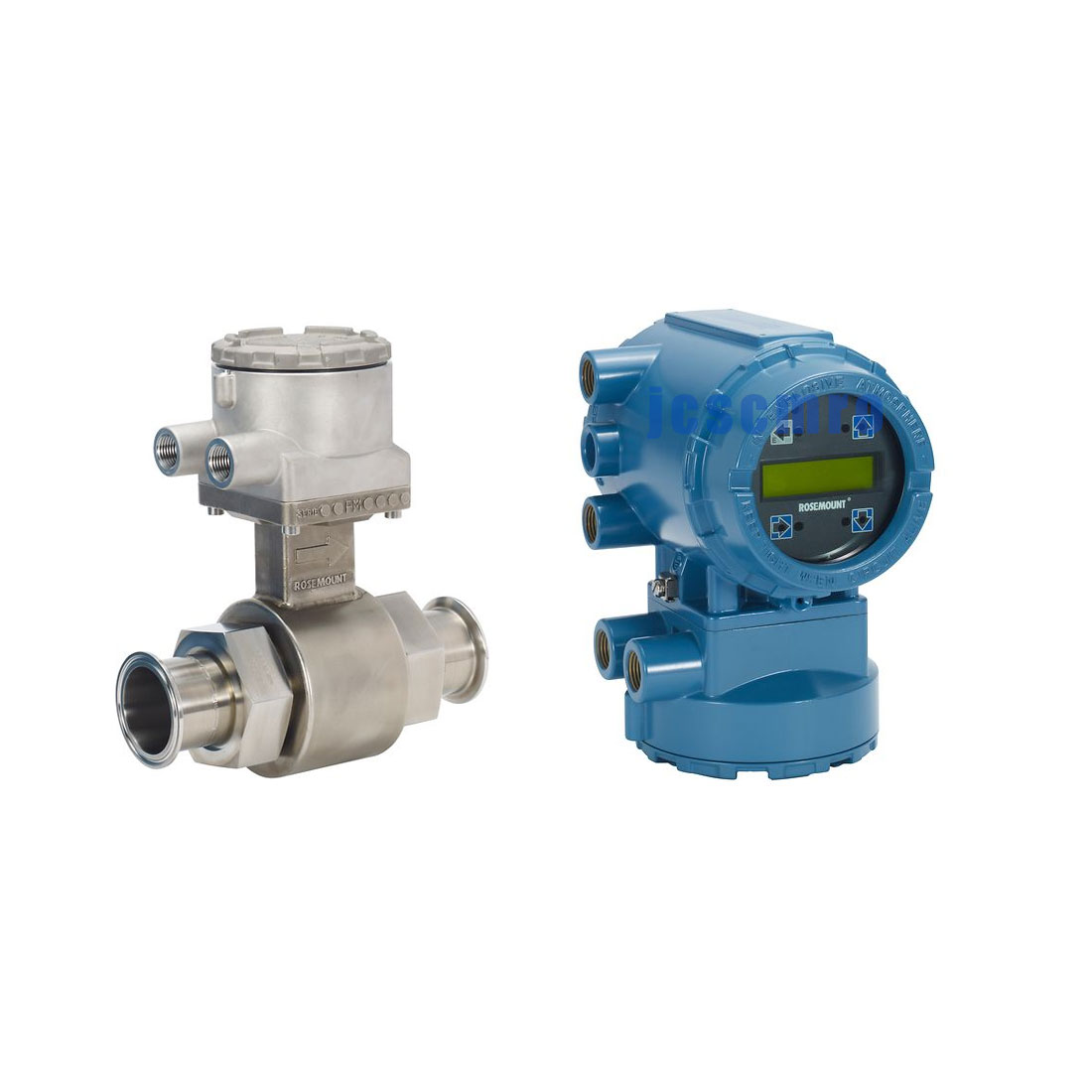

| Rosemount 8732E Field Mount Magnetic Flow Meter Transmitters | |

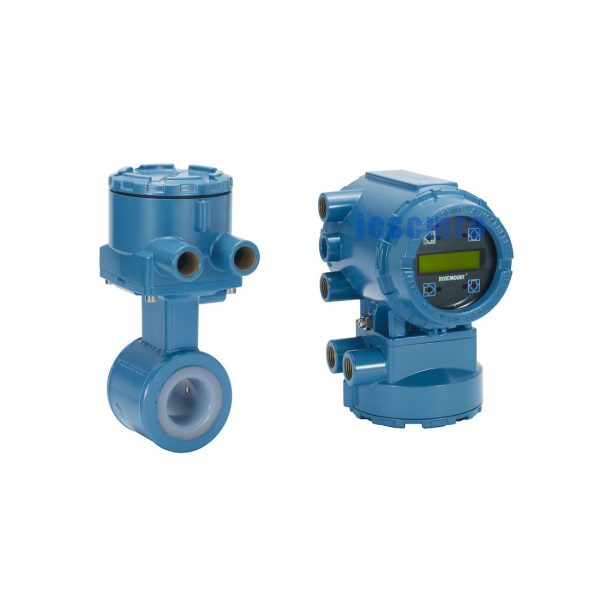

| Sensor compatibility | Compatible with Rosemount 8705, 8711, and 8721 sensors. Compatible with AC and DC powered sensors of other manufacturers. |
| Transmitter coil drive current | 500mA |
| Flow rate range | Capable of processing signals from fluids that are traveling between 0.04 and 39 ft/s (0.01 to 12 m/s) for both forward and reverse flow in all sensor sizes. Full scale continuously adjustable between –39 and 39 ft/s (–12 to 12 m/s). |
| Conductivity limits | Process liquid must have a conductivity of 5 microSiemens/cm (5 micromhos/cm) or greater. |
| Power supply |
|
