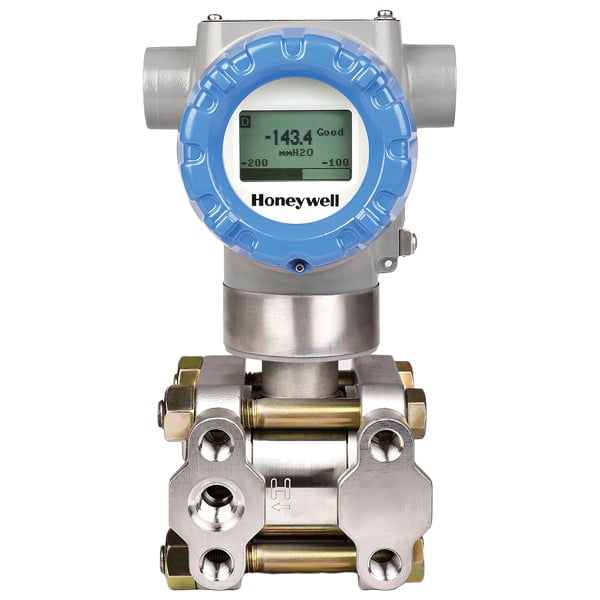

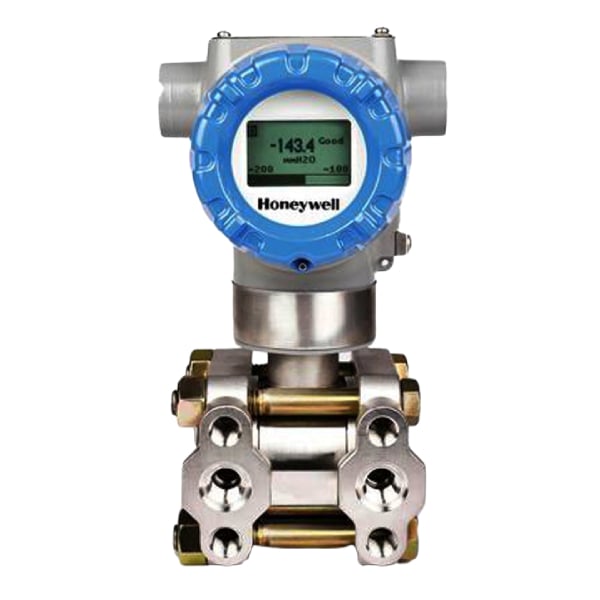

STG77L-E1G000-1-C-BFB-15S-A-11A0-FG,F1,F5-0000 | Honeywell STG700 | HoneyWell Pressure Transmitter

Part Number: STG77L-E1G000-1-C-BFB-15S-A-11A0-FG,F1,F5-0000

  • Free Selection Free Online Product Selection Service

To pick up today

  • Fast Shipping & Competitive pricing

Our courier will deliver to the specified address

  • warranty Min. order: 1 piece & 2-Year Warranty

DHL courier will deliver to the specified address

Payment Methods:

Description

Part Number: STG77L-E1G000-1-C-BFB-15S-A-11A0-FG,F1,F5-0000

Model: STG700 Gauge Pressure Transmitter
Brand: Honeywell
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months

Ordering Information

Model STG77L Gauge In-Line Pressure Transmitter
Process Wetted Heads & Diaphragm Materials E Process Head Material: 316 Stainless Steel
Diaphragm Material: 316L SS
Fill Fluid 1 Silicone Oil 200
Process Connection G Size/Type: 1/2′ NPT (female)
Material: Same as Process Head(1)
Bolt/Nuts Materials 0 None
Vent/Drain Type/Location 0 Head Type: None
Vent Type: None
Location: None
Vent Material: None
Gasket Materials 0 None
Head/Connect Orientation 1 Standard
High Side Left, Low Side Right(2) / Std Head Orientation
Approvals C ATEX Explosion proof, Intrinsically Safe & Non-incendive
Electronic Housing Material & Connection Type B Material: Polyster Powder Coated Aluminum
Connection: M20
Lighting Protection: None
Output/ Protocol F Analog Output: none
Digital Protocol: Foundation Fieldbus
Customer Interface Selections B Indicator: Basic
Ext Zero, Span & Config Buttons: None
Languages: EN
Application Software 1 Standard Diagnostics
Output Limit, Failsafe & Write Protect Settings 5 Write Protect: Enabled
Fail Mode: N/A
High & Low Output Limits(3): N/A         Fieldbus
General Configuration S Factory Standard
Accuracy and Calibration A Accuracy: Standard
Calibrated Range: Factory Standard
Calibration Qty: Single Calibration
Mounting Bracket 1 Bracket Type: Angle Bracket
Material: Carbon Steel
Customer Tag 1 One Wired Stainless Steel Tag (Up to 4 lines 26 char/line)
Unassembled Conduit Plugs & Adapters A0 No Conduit Plugs or Adapters Required
Certifications & Warranty FG
F1
F5		 NACE MR0175; MR0103; ISO15156 (FC33338) Process wetted parts only
Calibration Test Report & Certificate of Conformance (F3399)
Certificate of Origin (F0195)
Factory 0000 Factory Identification
  1. STG730,740,770 supplied via 1/2′ flange adapter same material as process head except carbon steel shall use 316 SS
  2. Left side/Right side as viewed from the customer connection perspective
  3. NAMUR Output Limits are configurable by customer
  • Estimated Lead Time: 8 – 12 Weeks
  • Shipping Weight: 10 Kg
