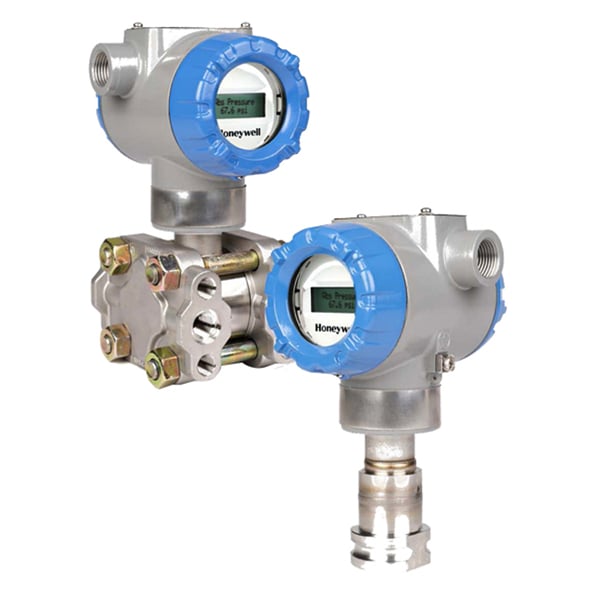

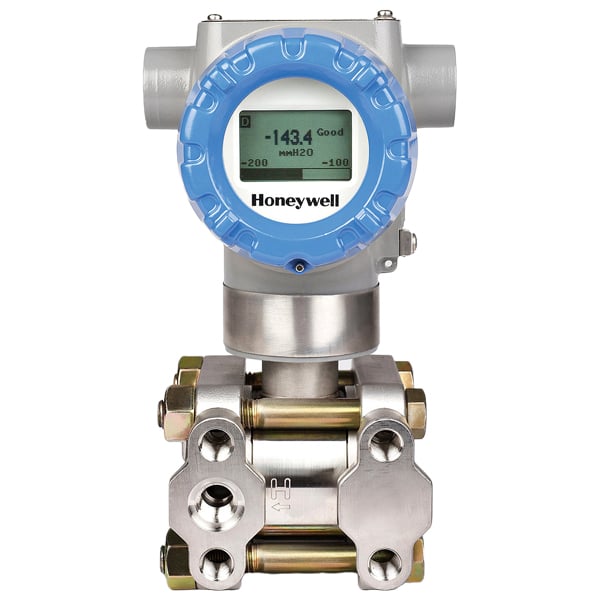

STG77S-E1G000-1-A-AHS-11C-A-11A0-F1 | Honeywell STG77S SmartLine Gauge Pressure Transmitter

Part Number: STG77S-E1G000-1-A-AHS-11C-A-11A0-F1

  • Free Selection Free Online Product Selection Service

To pick up today

  • Fast Shipping & Competitive pricing

Our courier will deliver to the specified address

  • warranty Min. order: 1 piece & 2-Year Warranty

DHL courier will deliver to the specified address

Payment Methods:

Description

Part Number: STG77S-E1G000-1-A-AHS-11C-A-11A0-F1

Model: STG77S SmartLine Gauge Pressure Transmitter
Brand: Honeywell
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months

Ordering Information

Model STG77S Gauge In-Line Pressure Transmitter
Process Head & Diaphragm Materials E Process Head/Reference Head Material:(1) 316 Stainless Steel
Barrier Diaphragm Material: 316L SS, Hastelloy C – 276
Fill Fluid 1 Silicone Oil 200
Process G Size/Type: 1/2′ NPT (female)
Material: Same as Process Head(2)
Bolt/Nuts Materials 0 None
Vent/Drain Type/Location 0 Head Type: None
Vent Type: None
Location: None
Vent Material: None
Gasket Materials 0 None
Head/Connect Orientation 1 Meter Body: Standard
High Side Left, Ref Side Right(3) / Std Head Orientation
Approvals A Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof
Electronic Housing Material & Connection Type A Material: Polyster Poweder Coated Aluminum
Connection: 1/2 NPT
Lighting Protection: None
Output/Protocol H Analog Output: 4-20mA dc
Digital Protocol: HART Protocol
Customer Interface Selectios S Indicator: Standard (w/Internal Zero, Span & Config buttons)
Ext Zero, Span & Config Buttons: None
Languages: EN, RU
Application Software 1 Diagnostics: Standard Diagnostics
Output Limit, Failsafe % Write Protect Settings 1 Write Protect: Disabled
Fail Mode: High> 21.0mAdc
High & Low Output Limits:(4) Honeywell Std (3.8 – 20.8 mAdc)
General Configuration C Custom Configuration (Unit Data Required from customer)
Accuracy & Calibration A Accuracy: Standard
Calibrated Range: Factory Standard
Calibration Qty: Single Calibration
Mounting Bracket 1 Bracket Type: Angle Bracket
Material: Carbon Steel
Customer Tag 1 One Wired Stainless Steel Tag (Up to 4 lines 26 char/line)
Unassembled Conduit Plugs & Adapters A0 No Conduit Plugs or Adapters Required
Certifications & Warranty F1 Calibration Test Report & Certificate of Conformance
  1. Reference head available w ith Dual Head Gage models only. In-Line Gage models are supplied w ith Process Head only.
  2. STG735,745,775 supplied via 1/2′ f lange adapter same material as process head except carbon steel shall use 316 SS
  3. Lef t side/Right side as view ed f rom the customer connection perspective
  4. NAMUR Output Limits are configurable by customer
  • Estimated Lead Time: 6 – 8 Weeks
  • Shipping Weight: 5 Kg
